View Issue Details

IDProjectCategoryView StatusLast Update
0002199SkyChart1-Softwarepublic19-09-24 17:23
ReporterHugo52 Assigned ToPatrick Chevalley
PrioritynormalSeverityblockReproducibilityalways
Status resolvedResolutionno change required
PlatformPCOSWindowsOS Version10 64bit
Summary0002199: version 4-3575
DescriptionComet tracking, the RA value is incorrect.
We try c/2018 W2, the given value for PHD2 is 187 wut is must be somthing like the double value.
Location Amsterdam
dRA=-21.5sec/h= 322.5 arcsec
http://www.kylesconverter.com/angle/seconds-of-time-to-arcseconds
Comet 'C/2018 W2' Magnitude= 8.5mag (in hyperbolic orbit)
Best seen from 21.2h - 5.9h (htop=63° at S at 1.7h) (in constellation Andromeda)
RA= 0h25m38s Dec=+25°22.7' (J2000), hourly motion: 517.8"/h Position angle=215.1° dRA=-21.5sec/h dDec=-425.7"/h, Distance to Sun= 1.48AU, Distance to Earth= 0.51AU, Elongation=154°, h=31.1° az=87.6°/E, Sun altitude=-15°, Elongation from Moon center=95°, Moon elevation=-16°, Moon phase=32%
Position angle of ion tail=198° (re zenith=241°), Length of a 0.05AU long tail=1.0°, Position angle of dust trail (not tail)=34° (re zenith=77°), Orbit direction=104° (towards the Earth), Latitude of Earth above orbit plane=-3° (Earth close to orbit plane - a tail would relatively easy to be seen)
TagsNo tags attached.

Activities

Patrick Chevalley

19-09-23 17:51

administrator   ~0005970

I cannot reproduce the error.

You not give the time of observation, so I was computing for today September 23 at 0h UT.
At this time we have dRA=-21.95s and the value in the PHD2 panel is -290.85

In your computation you forget to multiply by the cosine of declination, at 0h UT the declination was +27.95°
The computation is 21.95*15*cos(27.95)=290.85

Can you check again if you really get this value of 187 ?

I not remember if I fix something on this subject recently. But in any case can you install the last beta version because this is the version I can make any correction.
It is available from https://sourceforge.net/projects/skychart/files/0-beta/2019-09-23/

Hugo52

19-09-23 19:58

reporter   ~0005971

My son's laptop does produce the correct values.

My desktop has produced the correct values twice, but after searching for the object again, i get the incorrect values.

Hugo52

19-09-23 20:00

reporter   ~0005972

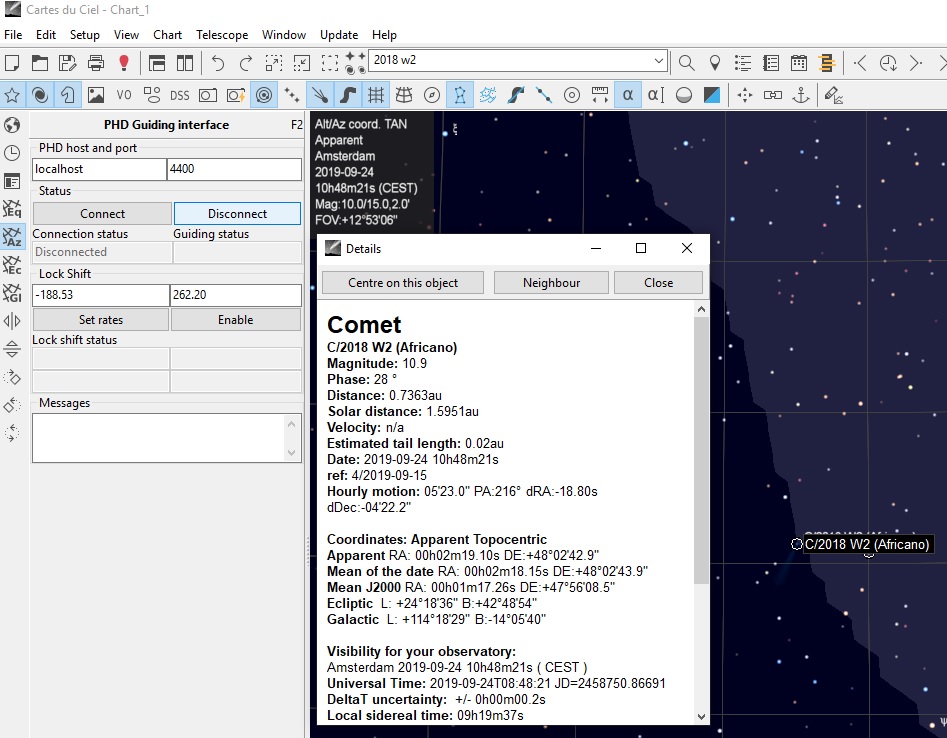

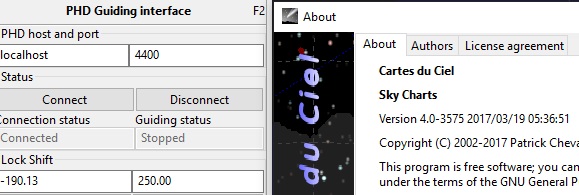

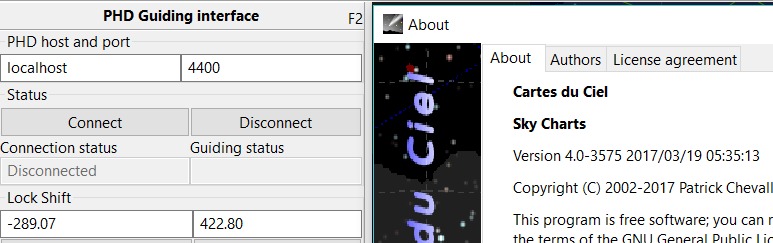

2 screenshots, one of my sons laptop, other of my desktop.

My son's desktop pc produces the same (wrong) values as mine,
sons laptop.jpg (57,455 bytes)
sons laptop.jpg (57,455 bytes)

Hugo52

19-09-23 21:09

reporter   ~0005973

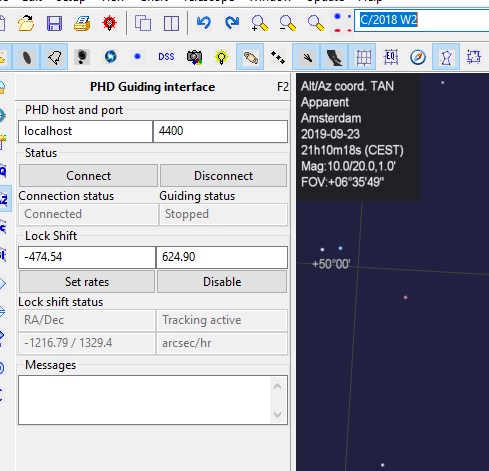

Other value but still wrong

Patrick Chevalley

19-09-24 07:34

administrator   ~0005974

When you get the wrong value, can you check it is using the right elements for the computation. Show the detailed object information and look for the ref: field, it must be "ref: 6/2019-05-14"

Also please upgrade to the 4.1.1 beta version, I cannot give support on a version that is more than two years old.


Hugo52

19-09-24 10:22

reporter   ~0005975

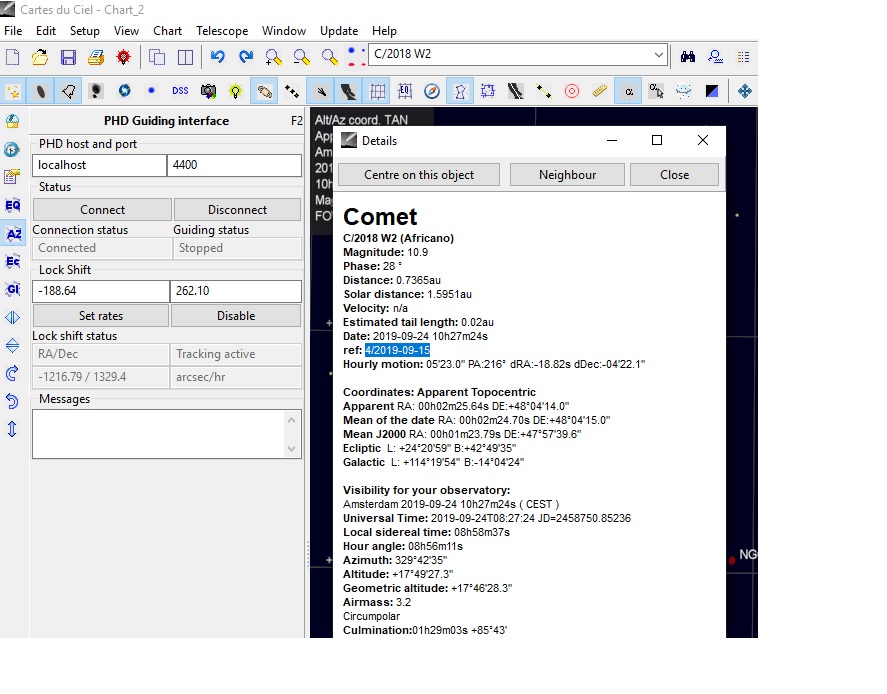

It looks like it is the wrong object.

Hugo52

19-09-24 10:38

reporter   ~0005976

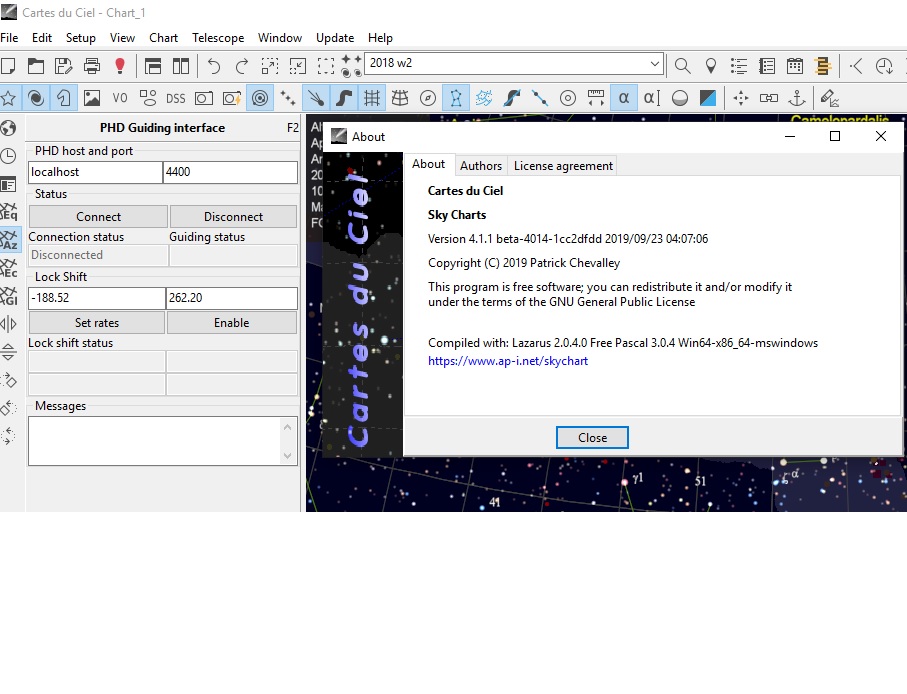

I have Beta version active, no changes.
Regards Hugo

Patrick Chevalley

19-09-24 16:57

administrator   ~0005977

OK, so there is no error with the PHD2 interface or the comet computation but this is because you get some wrong elements for this comet.
I don't know how, maybe a temporary glitch in the MPC, or a file you download elsewhere? but this is easy to fix.

Open the menu Setup / Solar system / Comet tab / Data maintenance tab.
On the line "Quickly delete all data related to comet" click the button "Delete", then click OK.
Open the menu Update / Comet elements.
When complete activate the comet display again.

Hugo52

19-09-24 17:09

reporter   ~0005978

Ok, this looks better, I deteled the file and the related data.
Thank you for help.
Regards Hugo

Patrick Chevalley

19-09-24 17:23

administrator   ~0005979

Good, thank you for the feedback.

What I can do to prevent this situation is to automatically delete the previous data when updating the elements from the menu Update / Comet elements.
Most user do not need to keep old data and advanced user that need to accumulate many files can still use the full options in the menu Setup / Solar system.
