View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
0002324 | SkyChart | 1-Software | public | 20-04-27 17:14 | 20-05-12 20:10 |
Reporter | Sergio Mantelatto | Assigned To | Patrick Chevalley | ||
Priority | high | Severity | major | Reproducibility | always |
Status | resolved | Resolution | fixed | ||
Platform | PC | OS | Windows | OS Version | 10 64bit |
Target Version | 4.4 | Fixed in Version | 4.3 beta | ||
Summary | 0002324: Cartes Du Ciel HandPad Malfunction | ||||
Description | - PROBLEM: After clicking Left/Right arrows on the CDS HandPad, clicking the stop central button doesn't work. Need to click on “ïnterrupt” button at ASCOM tab in the telescope interface window to stop slewing. | ||||
Additional Information | - Windows10 Pro 64bits updated; - Last version of CDS installed (skychart-4.3-4137-windows-x64.exe); - All ASCOM drivers last versions installed; - Connected the telescope Meade LX90 ACF 8" via USB cable (COM3 to the Meade handcontrol serial port) (last Meade update on it); - Connected CDS to the telescope via the ASCOM "Meade Generic Driver" (because the "Meade Classic and Autostar I" driver doesn't work); - After clicking Up/Dows arrows at the CDS HandPad, clicking the stop central button works nice; | ||||
Tags | No tags attached. | ||||
|
The stop button use the ASCOM method AbortSlew that must stop any movement whatever the axis. https://www.ascom-standards.org/Help/Developer/html/M_ASCOM_DeviceInterface_ITelescopeV3_AbortSlew.htm Normally you not even need to press the stop button, releasing one of the arrow button make the arrow to change from red to black and stop the motion. How the arrow color change when you press and release the buttons? What is exactly the driver you install? because the "LX200 generic" is not really intended for Meade telescope. I suggest you install this one because it the only with active development: https://bitbucket.org/cjdskunkworks/meadeautostar497/wiki/Home |
|
Hellow Patrick. Thanks for your prompt answer. I am not using the "LX200 generic" as you mentioned, but the "Meade Generic" exatly the same you sugested. When I focus the mouse cursor over the arrows, they became a little darker. The same occours when I click them. When I release the mouse or put it out of the arrows, the color return to normal. But the slewing does not stop, neither automaticly when I put the mouse out of any the arrows, nor when I click the stop in the case of the left/right ones. For the up/down arrows the stop works properly, as I said before. If I try clicking lots of times the stop button, them it finaly stops. |
|

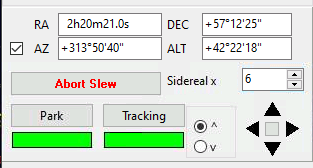

I now have a doubt about the tool you use. Is it from the Observer Tool script as show in screenshot tool1.png Or directly from the ASCOM connection box as show in screenshot tool2.png , I was describing this one because this is the most recently added so the most prone to bug. Can you tell me the one you use and also try with the other tool to see if it work the same or better? |
|
I am using the tool1.png option. The second one, ASCOM direct, doesn't work at all. I tried the same setup in another computer and the results are the same. Both with all the same OS, and software versions. I am a retired electronic engineer, 61 years old, living in Brazil. I have some skills in exercising hardware conditions to catch software bugs. If I can help, please feel confort in asking me. Thanks once again. |
|
Hello Sergio, Yes there is two thing you can do to help to isolate the problem. - Try the same functionality but instead of the Meade select "Telescope Simulator for .NET" in the ASCOM telescope chooser. To "see" the simulator to move look at the RA and DEC number in the Telescope simulator window when you press the arrow button. - Activate the trace in the Meade driver. With the Meade driver selected, click the Configure button, below the COM port check "Trace on". Connect to the telescope, set tracking, exercise the arrow button in the ASCOM interface. be sure to wait a few second between each so this can be distinguished in the log file. Then do the same from the Observer tool, take note of the time when you start to use this tool. Disconnect the telescope and look the folder Documents\ASCOM . There is a directory with the current date. In this directory is the log file, the name start by ASCOM.Meade.Generic:Telescope... Upload the file here. |
|
Good Morning. Now it is 9:15h in Piracicaba/SP - Brazil. Clear skies and temperature about 23degrees Celcius. What a nice day of quarantine... I am rewriting everityng. I started at 8:00h but the upload faild and everything was lost... 1) - Try the same functionality but instead of the Meade select "Telescope Simulator for .NET" in the ASCOM telescope chooser. To "see" the simulator to move look at the RA and DEC number in the Telescope simulator window when you press the arrow button. ANSWER: a) ASCOM.Simulator.Telescope selected and connected. b) "Park" starts green and "Tracking" starts red (in the Setup window the box "Auto Unpark/Track on Start" is unchecked). DEC is stopped at +00.00'.00" and RA is running up like a real time clock. Up/Down arrows works fine and left/right one did not. c) Selecting "Tracking", goes green. RA stops running. Now all 4 arrows work properly. d) If in the Setup window the box "Auto Unpark/Track on Start" is checked, connecting starts with "Park" and "Tracking" green and the 4 arrows works fine too. 2) - Activate the trace in the Meade driver. With the Meade driver selected, click the Configure button, below the COM port check "Trace on". Connect to the telescope, set tracking, exercise the arrow button in the ASCOM interface. be sure to wait a few second between each so this can be distinguished in the log file. ANSWER: a) setup done. "Park"starts red and "Tracking" starts green. DEC is stopped and RA is running slowly. b) NONE OF THE 4 ARROWS WORK. c) I will send you the trace file for this exercise because the complete one exceed the upload limit. In the next task I will send the second part. ASCOM INTERFACE-ASCOM.Meade.Generic.Telescope.0907.359460.txt (32,935 bytes)
09:07:35.946 ReadProfile Trace logger enabled: True 09:07:35.946 ReadProfile Com Port: COM3 09:07:35.946 ReadProfile Guide Rate: 10,077939 09:07:35.946 ReadProfile Precision: Unchanged 09:07:35.946 Telescope Completed initialisation 09:07:35.946 DriverVersion Get 0.7.11.208 09:07:35.946 Telescope Driver version: 0.7.11.208 09:07:35.946 Connected Set True 09:07:35.962 ReadProfile Trace logger enabled: True 09:07:35.962 ReadProfile Com Port: COM3 09:07:35.962 ReadProfile Guide Rate: 10,077939 09:07:35.962 ReadProfile Precision: Unchanged 09:07:35.962 Connected Set Connecting to port COM3 09:07:36.040 Connected Set Connected to port COM3. Product: Autostar Version:A4S4 09:07:36.040 Connected Set New Pulse Guiding Supported: True 09:07:36.040 Connected Set Making first connection telescope adjustments 09:07:36.071 SetLongFormat Long coordinate format: True 09:07:36.071 CanSetGuideRates Get - False 09:07:36.071 Connect Precision slewing unchanged 09:07:36.087 RightAscension Get - 05:37:31 09:07:36.118 Declination Get - -21:08:54" 09:07:36.118 Connected Set Connected OK. Current RA = 05:37:31 Dec = -21[B0] 08' 54" 09:07:36.118 Connected Get True 09:07:36.118 CanSetTracking Get - True 09:07:36.118 CanUnpark Get - False 09:07:36.118 CanPark Get - True 09:07:36.118 CanSync Get - True 09:07:36.118 CanMoveAxis Get - axisSecondary 09:07:36.118 CanMoveAxis Get - axisPrimary 09:07:36.118 CanMoveAxis Get - axisPrimary 09:07:36.118 AxisRates Get - axisPrimary 09:07:36.138 CanMoveAxis Get - axisSecondary 09:07:36.138 AxisRates Get - axisSecondary 09:07:36.161 RightAscension Get - 05:37:31 09:07:36.191 Declination Get - -21:08:54" 09:07:36.195 CanSlewAsync Get - True 09:07:36.198 Connected Get True 09:07:36.209 Slewing Get Result = False 09:07:36.220 Tracking Get - True 09:07:36.444 Connected Get True 09:07:36.459 RightAscension Get - 05:37:31 09:07:36.491 Declination Get - -21:08:54" 09:07:36.491 CanSlewAsync Get - True 09:07:36.491 Connected Get True 09:07:36.491 Slewing Get Result = False 09:07:36.491 Tracking Get - True 09:07:36.741 Connected Get True 09:07:36.756 RightAscension Get - 05:37:31 09:07:36.772 Declination Get - -21:08:54" 09:07:36.772 CanSlewAsync Get - True 09:07:36.772 Connected Get True 09:07:36.788 Slewing Get Result = False 09:07:36.788 Tracking Get - True 09:07:37.038 Connected Get True 09:07:37.053 RightAscension Get - 05:37:31 09:07:37.084 Declination Get - -21:08:54" 09:07:37.084 CanSlewAsync Get - True 09:07:37.084 Connected Get True 09:07:37.100 Slewing Get Result = False 09:07:37.100 Tracking Get - True 09:07:37.100 InterfaceVersion Get 3 09:07:37.116 CanMoveAxis Get - axisPrimary 09:07:37.116 AxisRates Get - axisPrimary 09:07:37.131 CanMoveAxis Get - axisSecondary 09:07:37.131 AxisRates Get - axisSecondary 09:07:37.350 Connected Get True 09:07:37.366 RightAscension Get - 05:37:33 09:07:37.381 Declination Get - -21:08:54" 09:07:37.381 CanSlewAsync Get - True 09:07:37.381 Connected Get True 09:07:37.397 Slewing Get Result = False 09:07:37.397 Tracking Get - True 09:07:37.647 Connected Get True 09:07:37.663 RightAscension Get - 05:37:33 09:07:37.694 Declination Get - -21:08:54" 09:07:37.694 CanSlewAsync Get - True 09:07:37.694 Connected Get True 09:07:37.710 Slewing Get Result = False 09:07:37.710 Tracking Get - True 09:07:37.960 Connected Get True 09:07:37.975 RightAscension Get - 05:37:33 09:07:37.991 Declination Get - -21:08:54" 09:07:37.991 CanSlewAsync Get - True 09:07:37.991 Connected Get True 09:07:38.006 Slewing Get Result = False 09:07:38.006 Tracking Get - True 09:07:38.256 Connected Get True 09:07:38.272 RightAscension Get - 05:37:33 09:07:38.303 Declination Get - -21:08:54" 09:07:38.303 CanSlewAsync Get - True 09:07:38.303 Connected Get True 09:07:38.319 Slewing Get Result = False 09:07:38.319 Tracking Get - True 09:07:38.569 Connected Get True 09:07:38.585 RightAscension Get - 05:37:33 09:07:38.616 Declination Get - -21:08:54" 09:07:38.616 CanSlewAsync Get - True 09:07:38.616 Connected Get True 09:07:38.616 Slewing Get Result = False 09:07:38.616 Tracking Get - True 09:07:38.866 Connected Get True 09:07:38.881 RightAscension Get - 05:37:33 09:07:38.897 Declination Get - -21:08:54" 09:07:38.897 CanSlewAsync Get - True 09:07:38.897 Connected Get True 09:07:38.913 Slewing Get Result = False 09:07:38.913 Tracking Get - True 09:07:39.163 Connected Get True 09:07:39.178 RightAscension Get - 05:37:33 09:07:39.194 Declination Get - -21:08:54" 09:07:39.194 CanSlewAsync Get - True 09:07:39.194 Connected Get True 09:07:39.210 Slewing Get Result = False 09:07:39.210 Tracking Get - True 09:07:39.460 Connected Get True 09:07:39.491 RightAscension Get - 05:37:35 09:07:39.522 Declination Get - -21:08:54" 09:07:39.522 CanSlewAsync Get - True 09:07:39.522 Connected Get True 09:07:39.538 Slewing Get Result = False 09:07:39.538 Tracking Get - True 09:07:39.788 Connected Get True 09:07:39.804 RightAscension Get - 05:37:35 09:07:39.819 Declination Get - -21:08:54" 09:07:39.819 CanSlewAsync Get - True 09:07:39.819 Connected Get True 09:07:39.835 Slewing Get Result = False 09:07:39.835 Tracking Get - True 09:07:40.085 Connected Get True 09:07:40.100 RightAscension Get - 05:37:35 09:07:40.132 Declination Get - -21:08:54" 09:07:40.132 CanSlewAsync Get - True 09:07:40.132 Connected Get True 09:07:40.147 Slewing Get Result = False 09:07:40.147 Tracking Get - True 09:07:40.397 Connected Get True 09:07:40.413 RightAscension Get - 05:37:35 09:07:40.444 Declination Get - -21:08:54" 09:07:40.444 CanSlewAsync Get - True 09:07:40.444 Connected Get True 09:07:40.444 Slewing Get Result = False 09:07:40.444 Tracking Get - True 09:07:40.694 Connected Get True 09:07:40.710 RightAscension Get - 05:37:35 09:07:40.741 Declination Get - -21:08:54" 09:07:40.741 CanSlewAsync Get - True 09:07:40.741 Connected Get True 09:07:40.741 Slewing Get Result = False 09:07:40.741 Tracking Get - True 09:07:40.991 Connected Get True 09:07:41.007 RightAscension Get - 05:37:35 09:07:41.038 Declination Get - -21:08:54" 09:07:41.038 CanSlewAsync Get - True 09:07:41.038 Connected Get True 09:07:41.038 Slewing Get Result = False 09:07:41.038 Tracking Get - True 09:07:41.289 Connected Get True 09:07:41.307 RightAscension Get - 05:37:35 09:07:41.333 Declination Get - -21:08:54" 09:07:41.334 CanSlewAsync Get - True 09:07:41.334 Connected Get True 09:07:41.344 Slewing Get Result = False 09:07:41.345 Tracking Get - True 09:07:41.586 Connected Get True 09:07:41.649 RightAscension Get - 05:37:37 09:07:41.664 Declination Get - -21:08:54" 09:07:41.664 CanSlewAsync Get - True 09:07:41.664 Connected Get True 09:07:41.680 Slewing Get Result = False 09:07:41.680 Tracking Get - True 09:07:41.930 Connected Get True 09:07:41.946 RightAscension Get - 05:37:37 09:07:41.977 Declination Get - -21:08:54" 09:07:41.977 CanSlewAsync Get - True 09:07:41.977 Connected Get True 09:07:41.977 Slewing Get Result = False 09:07:41.977 Tracking Get - True 09:07:44.259 CanMoveAxis Get - axisSecondary 09:07:44.274 MoveAxis Axis=axisSecondary rate=0,0167122968651878 09:07:44.274 Connected Get True 09:07:44.305 RightAscension Get - 05:37:39 09:07:44.337 Declination Get - -21:08:54" 09:07:44.337 CanSlewAsync Get - True 09:07:44.337 Connected Get True 09:07:44.352 Slewing Get Result = False 09:07:44.352 Tracking Get - True 09:07:44.384 AbortSlew Aborting slew 09:07:44.602 Connected Get True 09:07:44.618 RightAscension Get - 05:37:39 09:07:44.634 Declination Get - -21:08:54" 09:07:44.634 CanSlewAsync Get - True 09:07:44.634 Connected Get True 09:07:44.649 Slewing Get Result = False 09:07:44.649 Tracking Get - True 09:07:44.899 Connected Get True 09:07:44.915 RightAscension Get - 05:37:39 09:07:44.946 Declination Get - -21:08:54" 09:07:44.946 CanSlewAsync Get - True 09:07:44.946 Connected Get True 09:07:44.946 Slewing Get Result = False 09:07:44.946 Tracking Get - True 09:07:45.196 Connected Get True 09:07:45.212 RightAscension Get - 05:37:39 09:07:45.228 Declination Get - -21:08:54" 09:07:45.228 CanSlewAsync Get - True 09:07:45.228 Connected Get True 09:07:45.243 Slewing Get Result = False 09:07:45.243 Tracking Get - True 09:07:45.493 Connected Get True 09:07:45.525 RightAscension Get - 05:37:39 09:07:45.540 Declination Get - -21:08:54" 09:07:45.540 CanSlewAsync Get - True 09:07:45.540 Connected Get True 09:07:45.556 Slewing Get Result = False 09:07:45.556 Tracking Get - True 09:07:45.806 Connected Get True 09:07:45.821 RightAscension Get - 05:37:39 09:07:45.853 Declination Get - -21:08:54" 09:07:45.853 CanSlewAsync Get - True 09:07:45.853 Connected Get True 09:07:45.853 Slewing Get Result = False 09:07:45.853 Tracking Get - True 09:07:46.103 Connected Get True 09:07:46.118 RightAscension Get - 05:37:42 09:07:46.150 Declination Get - -21:08:54" 09:07:46.154 CanSlewAsync Get - True 09:07:46.154 Connected Get True 09:07:46.165 Slewing Get Result = False 09:07:46.165 Tracking Get - True 09:07:46.423 Connected Get True 09:07:46.448 RightAscension Get - 05:37:42 09:07:46.461 Declination Get - -21:08:54" 09:07:46.461 CanSlewAsync Get - True 09:07:46.461 Connected Get True 09:07:46.477 Slewing Get Result = False 09:07:46.477 Tracking Get - True 09:07:46.728 Connected Get True 09:07:46.743 RightAscension Get - 05:37:42 09:07:46.775 Declination Get - -21:08:54" 09:07:46.775 CanSlewAsync Get - True 09:07:46.775 Connected Get True 09:07:46.775 Slewing Get Result = False 09:07:46.775 Tracking Get - True 09:07:47.025 Connected Get True 09:07:47.040 RightAscension Get - 05:37:42 09:07:47.072 Declination Get - -21:08:54" 09:07:47.072 CanSlewAsync Get - True 09:07:47.072 Connected Get True 09:07:47.072 Slewing Get Result = False 09:07:47.072 Tracking Get - True 09:07:47.072 CanMoveAxis Get - axisSecondary 09:07:47.072 MoveAxis Axis=axisSecondary rate=0,0167122968651878 09:07:47.322 AbortSlew Aborting slew 09:07:47.322 Connected Get True 09:07:47.337 RightAscension Get - 05:37:42 09:07:47.368 Declination Get - -21:08:54" 09:07:47.368 CanSlewAsync Get - True 09:07:47.368 Connected Get True 09:07:47.384 Slewing Get Result = False 09:07:47.384 Tracking Get - True 09:07:47.634 Connected Get True 09:07:47.665 RightAscension Get - 05:37:42 09:07:47.681 Declination Get - -21:08:54" 09:07:47.681 CanSlewAsync Get - True 09:07:47.681 Connected Get True 09:07:47.697 Slewing Get Result = False 09:07:47.697 Tracking Get - True 09:07:47.947 Connected Get True 09:07:47.978 RightAscension Get - 05:37:42 09:07:47.993 Declination Get - -21:08:54" 09:07:47.993 CanSlewAsync Get - True 09:07:47.993 Connected Get True 09:07:48.009 Slewing Get Result = False 09:07:48.009 Tracking Get - True 09:07:48.259 Connected Get True 09:07:48.275 RightAscension Get - 05:37:44 09:07:48.306 Declination Get - -21:08:54" 09:07:48.306 CanSlewAsync Get - True 09:07:48.306 Connected Get True 09:07:48.322 Slewing Get Result = False 09:07:48.322 Tracking Get - True 09:07:48.572 Connected Get True 09:07:48.587 RightAscension Get - 05:37:44 09:07:48.603 Declination Get - -21:08:54" 09:07:48.603 CanSlewAsync Get - True 09:07:48.603 Connected Get True 09:07:48.618 Slewing Get Result = False 09:07:48.618 Tracking Get - True 09:07:48.869 Connected Get True 09:07:48.884 RightAscension Get - 05:37:44 09:07:48.900 Declination Get - -21:08:54" 09:07:48.900 CanSlewAsync Get - True 09:07:48.900 Connected Get True 09:07:48.900 Slewing Get Result = False 09:07:48.916 Tracking Get - True 09:07:49.166 Connected Get True 09:07:49.197 RightAscension Get - 05:37:44 09:07:49.213 Declination Get - -21:08:54" 09:07:49.213 CanSlewAsync Get - True 09:07:49.213 Connected Get True 09:07:49.213 Slewing Get Result = False 09:07:49.213 Tracking Get - True 09:07:49.463 Connected Get True 09:07:49.478 RightAscension Get - 05:37:44 09:07:49.494 Declination Get - -21:08:54" 09:07:49.494 CanSlewAsync Get - True 09:07:49.494 Connected Get True 09:07:49.509 Slewing Get Result = False 09:07:49.509 Tracking Get - True 09:07:49.759 Connected Get True 09:07:49.775 RightAscension Get - 05:37:44 09:07:49.806 Declination Get - -21:08:54" 09:07:49.806 CanSlewAsync Get - True 09:07:49.806 Connected Get True 09:07:49.806 Slewing Get Result = False 09:07:49.806 Tracking Get - True 09:07:50.056 Connected Get True 09:07:50.072 RightAscension Get - 05:37:44 09:07:50.088 Declination Get - -21:08:54" 09:07:50.088 CanSlewAsync Get - True 09:07:50.088 Connected Get True 09:07:50.103 Slewing Get Result = False 09:07:50.103 Tracking Get - True 09:07:50.363 Connected Get True 09:07:50.395 RightAscension Get - 05:37:46 09:07:50.410 Declination Get - -21:08:54" 09:07:50.410 CanSlewAsync Get - True 09:07:50.410 Connected Get True 09:07:50.410 Slewing Get Result = False 09:07:50.410 Tracking Get - True 09:07:50.582 CanMoveAxis Get - axisSecondary 09:07:50.582 MoveAxis Axis=axisSecondary rate=-0,0167122968651878 09:07:50.660 Connected Get True 09:07:50.676 RightAscension Get - 05:37:46 09:07:50.707 Declination Get - -21:08:54" 09:07:50.707 CanSlewAsync Get - True 09:07:50.707 Connected Get True 09:07:50.723 Slewing Get Result = False 09:07:50.723 Tracking Get - True 09:07:50.863 AbortSlew Aborting slew 09:07:50.973 Connected Get True 09:07:51.004 RightAscension Get - 05:37:46 09:07:51.020 Declination Get - -21:08:54" 09:07:51.020 CanSlewAsync Get - True 09:07:51.020 Connected Get True 09:07:51.035 Slewing Get Result = False 09:07:51.035 Tracking Get - True 09:07:51.281 Connected Get True 09:07:51.298 RightAscension Get - 05:37:46 09:07:51.320 Declination Get - -21:08:54" 09:07:51.320 CanSlewAsync Get - True 09:07:51.321 Connected Get True 09:07:51.334 Slewing Get Result = False 09:07:51.334 Tracking Get - True 09:07:51.584 Connected Get True 09:07:51.600 RightAscension Get - 05:37:46 09:07:51.631 Declination Get - -21:08:54" 09:07:51.631 CanSlewAsync Get - True 09:07:51.631 Connected Get True 09:07:51.631 Slewing Get Result = False 09:07:51.631 Tracking Get - True 09:07:51.881 Connected Get True 09:07:51.897 RightAscension Get - 05:37:46 09:07:51.912 Declination Get - -21:08:54" 09:07:51.912 CanSlewAsync Get - True 09:07:51.912 Connected Get True 09:07:51.928 Slewing Get Result = False 09:07:51.928 Tracking Get - True 09:07:52.178 Connected Get True 09:07:52.194 RightAscension Get - 05:37:46 09:07:52.209 Declination Get - -21:08:54" 09:07:52.209 CanSlewAsync Get - True 09:07:52.209 Connected Get True 09:07:52.225 Slewing Get Result = False 09:07:52.225 Tracking Get - True 09:07:52.475 Connected Get True 09:07:52.491 RightAscension Get - 05:37:48 09:07:52.506 Declination Get - -21:08:54" 09:07:52.506 CanSlewAsync Get - True 09:07:52.506 Connected Get True 09:07:52.522 Slewing Get Result = False 09:07:52.522 Tracking Get - True 09:07:52.647 CanMoveAxis Get - axisSecondary 09:07:52.647 MoveAxis Axis=axisSecondary rate=-0,0167122968651878 09:07:52.772 Connected Get True 09:07:52.788 RightAscension Get - 05:37:48 09:07:52.803 Declination Get - -21:08:54" 09:07:52.803 CanSlewAsync Get - True 09:07:52.803 Connected Get True 09:07:52.819 Slewing Get Result = False 09:07:52.819 Tracking Get - True 09:07:52.944 AbortSlew Aborting slew 09:07:53.069 Connected Get True 09:07:53.085 RightAscension Get - 05:37:48 09:07:53.100 Declination Get - -21:08:54" 09:07:53.100 CanSlewAsync Get - True 09:07:53.100 Connected Get True 09:07:53.116 Slewing Get Result = False 09:07:53.116 Tracking Get - True 09:07:53.366 Connected Get True 09:07:53.381 RightAscension Get - 05:37:48 09:07:53.397 Declination Get - -21:08:54" 09:07:53.397 CanSlewAsync Get - True 09:07:53.397 Connected Get True 09:07:53.413 Slewing Get Result = False 09:07:53.413 Tracking Get - True 09:07:53.663 Connected Get True 09:07:53.678 RightAscension Get - 05:37:48 09:07:53.694 Declination Get - -21:08:54" 09:07:53.710 CanSlewAsync Get - True 09:07:53.710 Connected Get True 09:07:53.710 Slewing Get Result = False 09:07:53.710 Tracking Get - True 09:07:53.960 Connected Get True 09:07:53.975 RightAscension Get - 05:37:48 09:07:53.991 Declination Get - -21:08:54" 09:07:53.991 CanSlewAsync Get - True 09:07:53.991 Connected Get True 09:07:54.006 Slewing Get Result = False 09:07:54.006 Tracking Get - True 09:07:54.256 Connected Get True 09:07:54.272 RightAscension Get - 05:37:48 09:07:54.288 Declination Get - -21:08:54" 09:07:54.303 CanSlewAsync Get - True 09:07:54.303 Connected Get True 09:07:54.303 Slewing Get Result = False 09:07:54.303 Tracking Get - True 09:07:54.553 Connected Get True 09:07:54.569 RightAscension Get - 05:37:50 09:07:54.600 Declination Get - -21:08:54" 09:07:54.600 CanSlewAsync Get - True 09:07:54.600 Connected Get True 09:07:54.616 Slewing Get Result = False 09:07:54.616 Tracking Get - True 09:07:54.788 CanMoveAxis Get - axisPrimary 09:07:54.788 MoveAxis Axis=axisPrimary rate=-0,0167122968651878 09:07:54.866 Connected Get True 09:07:54.882 RightAscension Get - 05:37:50 09:07:54.913 Declination Get - -21:08:54" 09:07:54.913 CanSlewAsync Get - True 09:07:54.913 Connected Get True 09:07:54.913 Slewing Get Result = False 09:07:54.913 Tracking Get - True 09:07:55.100 AbortSlew Aborting slew 09:07:55.163 Connected Get True 09:07:55.194 RightAscension Get - 05:37:50 09:07:55.210 Declination Get - -21:08:54" 09:07:55.210 CanSlewAsync Get - True 09:07:55.210 Connected Get True 09:07:55.225 Slewing Get Result = False 09:07:55.225 Tracking Get - True 09:07:55.475 Connected Get True 09:07:55.491 RightAscension Get - 05:37:50 09:07:55.522 Declination Get - -21:08:54" 09:07:55.522 CanSlewAsync Get - True 09:07:55.522 Connected Get True 09:07:55.522 Slewing Get Result = False 09:07:55.522 Tracking Get - True 09:07:55.772 Connected Get True 09:07:55.788 RightAscension Get - 05:37:50 09:07:55.804 Declination Get - -21:08:54" 09:07:55.804 CanSlewAsync Get - True 09:07:55.804 Connected Get True 09:07:55.819 Slewing Get Result = False 09:07:55.819 Tracking Get - True 09:07:56.069 Connected Get True 09:07:56.085 RightAscension Get - 05:37:50 09:07:56.100 Declination Get - -21:08:54" 09:07:56.100 CanSlewAsync Get - True 09:07:56.100 Connected Get True 09:07:56.116 Slewing Get Result = False 09:07:56.116 Tracking Get - True 09:07:56.368 Connected Get True 09:07:56.402 RightAscension Get - 05:37:50 09:07:56.430 Declination Get - -21:08:54" 09:07:56.430 CanSlewAsync Get - True 09:07:56.431 Connected Get True 09:07:56.439 Slewing Get Result = False 09:07:56.440 Tracking Get - True 09:07:56.681 Connected Get True 09:07:56.697 RightAscension Get - 05:37:52 09:07:56.728 Declination Get - -21:08:54" 09:07:56.728 CanSlewAsync Get - True 09:07:56.728 Connected Get True 09:07:56.743 Slewing Get Result = False 09:07:56.743 Tracking Get - True 09:07:56.993 Connected Get True 09:07:57.009 RightAscension Get - 05:37:52 09:07:57.040 Declination Get - -21:08:54" 09:07:57.040 CanSlewAsync Get - True 09:07:57.040 Connected Get True 09:07:57.040 Slewing Get Result = False 09:07:57.040 Tracking Get - True 09:07:57.290 Connected Get True 09:07:57.306 RightAscension Get - 05:37:52 09:07:57.322 Declination Get - -21:08:54" 09:07:57.322 CanSlewAsync Get - True 09:07:57.322 Connected Get True 09:07:57.346 Slewing Get Result = False 09:07:57.346 Tracking Get - True 09:07:57.355 CanMoveAxis Get - axisPrimary 09:07:57.355 MoveAxis Axis=axisPrimary rate=0,0167122968651878 09:07:57.590 Connected Get True 09:07:57.605 RightAscension Get - 05:37:52 09:07:57.636 Declination Get - -21:08:54" 09:07:57.636 CanSlewAsync Get - True 09:07:57.636 Connected Get True 09:07:57.636 Slewing Get Result = False 09:07:57.636 Tracking Get - True 09:07:57.652 AbortSlew Aborting slew 09:07:57.886 Connected Get True 09:07:57.902 RightAscension Get - 05:37:52 09:07:57.933 Declination Get - -21:08:54" 09:07:57.933 CanSlewAsync Get - True 09:07:57.933 Connected Get True 09:07:57.933 Slewing Get Result = False 09:07:57.933 Tracking Get - True 09:07:58.183 Connected Get True 09:07:58.199 RightAscension Get - 05:37:52 09:07:58.215 Declination Get - -21:08:54" 09:07:58.215 CanSlewAsync Get - True 09:07:58.215 Connected Get True 09:07:58.230 Slewing Get Result = False 09:07:58.230 Tracking Get - True 09:07:58.480 Connected Get True 09:07:58.496 RightAscension Get - 05:37:52 09:07:58.527 Declination Get - -21:08:54" 09:07:58.527 CanSlewAsync Get - True 09:07:58.527 Connected Get True 09:07:58.527 Slewing Get Result = False 09:07:58.527 Tracking Get - True 09:07:58.777 Connected Get True 09:07:58.809 RightAscension Get - 05:37:55 09:07:58.840 Declination Get - -21:08:54" 09:07:58.840 CanSlewAsync Get - True 09:07:58.840 Connected Get True 09:07:58.840 Slewing Get Result = False 09:07:58.840 Tracking Get - True 09:07:59.090 Connected Get True 09:07:59.105 RightAscension Get - 05:37:55 09:07:59.137 Declination Get - -21:08:54" 09:07:59.137 CanSlewAsync Get - True 09:07:59.137 Connected Get True 09:07:59.152 Slewing Get Result = False 09:07:59.152 Tracking Get - True 09:07:59.402 Connected Get True 09:07:59.418 RightAscension Get - 05:37:55 09:07:59.449 Declination Get - -21:08:54" 09:07:59.449 CanSlewAsync Get - True 09:07:59.449 Connected Get True 09:07:59.449 Slewing Get Result = False 09:07:59.449 Tracking Get - True 09:07:59.699 Connected Get True 09:07:59.715 RightAscension Get - 05:37:55 09:07:59.746 Declination Get - -21:08:54" 09:07:59.746 CanSlewAsync Get - True 09:07:59.746 Connected Get True 09:07:59.746 Slewing Get Result = False 09:07:59.746 Tracking Get - True 09:07:59.996 Connected Get True 09:08:00.012 RightAscension Get - 05:37:55 09:08:00.043 Declination Get - -21:08:54" 09:08:00.043 CanSlewAsync Get - True 09:08:00.043 Connected Get True 09:08:00.043 Slewing Get Result = False 09:08:00.043 Tracking Get - True 09:08:00.293 Connected Get True 09:08:00.309 RightAscension Get - 05:37:55 09:08:00.324 Declination Get - -21:08:54" 09:08:00.340 CanSlewAsync Get - True 09:08:00.340 Connected Get True 09:08:00.340 Slewing Get Result = False 09:08:00.340 Tracking Get - True 09:08:00.590 Connected Get True 09:08:00.605 RightAscension Get - 05:37:55 09:08:00.621 Declination Get - -21:08:54" 09:08:00.621 CanSlewAsync Get - True 09:08:00.621 Connected Get True 09:08:00.637 Slewing Get Result = False 09:08:00.637 Tracking Get - True 09:08:00.887 Connected Get True 09:08:00.902 RightAscension Get - 05:37:55 09:08:00.934 Declination Get - -21:08:54" 09:08:00.934 CanSlewAsync Get - True 09:08:00.934 Connected Get True 09:08:00.965 Slewing Get Result = False 09:08:00.965 Tracking Get - True 09:08:01.210 Connected Get True 09:08:01.236 RightAscension Get - 05:37:57 09:08:01.256 Declination Get - -21:08:54" 09:08:01.259 CanSlewAsync Get - True 09:08:01.260 Connected Get True 09:08:01.273 Slewing Get Result = False 09:08:01.274 Tracking Get - True 09:08:01.525 Connected Get True 09:08:01.556 RightAscension Get - 05:37:57 09:08:01.587 Declination Get - -21:08:54" 09:08:01.587 CanSlewAsync Get - True 09:08:01.587 Connected Get True 09:08:01.603 Slewing Get Result = False 09:08:01.603 Tracking Get - True 09:08:01.853 Connected Get True 09:08:01.884 RightAscension Get - 05:37:57 09:08:01.900 Declination Get - -21:08:54" 09:08:01.900 CanSlewAsync Get - True 09:08:01.900 Connected Get True 09:08:01.915 Slewing Get Result = False 09:08:01.915 Tracking Get - True 09:08:02.165 Connected Get True 09:08:02.181 RightAscension Get - 05:37:57 09:08:02.212 Declination Get - -21:08:54" 09:08:02.212 CanSlewAsync Get - True 09:08:02.212 Connected Get True 09:08:02.228 Slewing Get Result = False 09:08:02.228 Tracking Get - True 09:08:02.368 Connected Set False 09:08:02.368 Connected Set Disconnecting from port COM3 |
|
Good morning Sergio, It is expected the mount must be unparked and tracking before the arrow button can work. In the trace file the driver indicate CanUnpark=False. This indicate CdC cannot unpark the mount, this must be done with the telescope handpad before to connect to the computer. When you type long text here in Mantis it is best to type first in Notepad then copy the text, otherwise you can get a session timeout. You can zip the log files if they are too big. |
|
3) Then do the same from the Observer tool, take note of the time when you start to use this tool. Disconnect the telescope and look the folder Documents\ASCOM . There is a directory with the current date. In this directory is the log file, the name start by ASCOM.Meade.Generic:Telescope... ANSWER: Observer Tools sequence a) Setup done and Meade telescope connected. b) Up/Down arrows clicked, the telescope starts slewing but did not stop when the mouse is out for the keys limits. Clicking "Stop" interrupts the slewing. c) Left/Right arrows clicked, the telescope starts slewing but did not stop neither when the mouse is out for the keys limits nor clicking "Stop" once. The slewing only interrupts if I click "Stop" many times. d) Trace file attached. Good luck... OBSERVER TOOLS-ASCOM.Meade.Generic.Telescope.0912.593420.txt (41,596 bytes)
09:12:59.344 ReadProfile Trace logger enabled: True 09:12:59.345 ReadProfile Com Port: COM3 09:12:59.345 ReadProfile Guide Rate: 10,077939 09:12:59.345 ReadProfile Precision: Unchanged 09:12:59.345 Telescope Completed initialisation 09:12:59.345 DriverVersion Get 0.7.11.208 09:12:59.346 Telescope Driver version: 0.7.11.208 09:12:59.356 Connected Set True 09:12:59.362 ReadProfile Trace logger enabled: True 09:12:59.362 ReadProfile Com Port: COM3 09:12:59.362 ReadProfile Guide Rate: 10,077939 09:12:59.362 ReadProfile Precision: Unchanged 09:12:59.362 Connected Set Connecting to port COM3 09:12:59.435 Connected Set Connected to port COM3. Product: Autostar Version:A4S4 09:12:59.435 Connected Set New Pulse Guiding Supported: True 09:12:59.435 Connected Set Making first connection telescope adjustments 09:12:59.455 SetLongFormat Long coordinate format: True 09:12:59.455 CanSetGuideRates Get - False 09:12:59.456 Connect Precision slewing unchanged 09:12:59.492 RightAscension Get - 05:42:55 09:12:59.517 Declination Get - -21:08:54" 09:12:59.517 Connected Set Connected OK. Current RA = 05:42:55 Dec = -21[B0] 08' 54" 09:12:59.519 Connected Get True 09:12:59.519 CanSetTracking Get - True 09:12:59.520 CanUnpark Get - False 09:12:59.520 CanPark Get - True 09:12:59.520 CanSync Get - True 09:12:59.521 CanMoveAxis Get - axisSecondary 09:12:59.521 CanMoveAxis Get - axisPrimary 09:12:59.521 CanMoveAxis Get - axisPrimary 09:12:59.522 AxisRates Get - axisPrimary 09:12:59.528 CanMoveAxis Get - axisSecondary 09:12:59.528 AxisRates Get - axisSecondary 09:12:59.553 RightAscension Get - 05:42:55 09:12:59.580 Declination Get - -21:08:54" 09:12:59.585 CanSlewAsync Get - True 09:12:59.589 Connected Get True 09:12:59.597 Slewing Get Result = False 09:12:59.609 Tracking Get - True 09:12:59.628 InterfaceVersion Get 3 09:12:59.636 CanMoveAxis Get - axisPrimary 09:12:59.641 AxisRates Get - axisPrimary 09:12:59.668 CanMoveAxis Get - axisSecondary 09:12:59.668 AxisRates Get - axisSecondary 09:12:59.845 Connected Get True 09:12:59.862 RightAscension Get - 05:42:55 09:12:59.891 Declination Get - -21:08:54" 09:12:59.891 CanSlewAsync Get - True 09:12:59.892 Connected Get True 09:12:59.899 Slewing Get Result = False 09:12:59.899 Tracking Get - True 09:13:00.155 Connected Get True 09:13:00.181 RightAscension Get - 05:42:55 09:13:00.209 Declination Get - -21:08:54" 09:13:00.210 CanSlewAsync Get - True 09:13:00.210 Connected Get True 09:13:00.218 Slewing Get Result = False 09:13:00.219 Tracking Get - True 09:13:00.475 Connected Get True 09:13:00.495 RightAscension Get - 05:42:57 09:13:00.522 Declination Get - -21:08:54" 09:13:00.526 CanSlewAsync Get - True 09:13:00.526 Connected Get True 09:13:00.534 Slewing Get Result = False 09:13:00.534 Tracking Get - True 09:13:00.782 Connected Get True 09:13:00.801 RightAscension Get - 05:42:57 09:13:00.833 Declination Get - -21:08:54" 09:13:00.833 CanSlewAsync Get - True 09:13:00.834 Connected Get True 09:13:00.841 Slewing Get Result = False 09:13:00.841 Tracking Get - True 09:13:01.086 Connected Get True 09:13:01.112 RightAscension Get - 05:42:57 09:13:01.133 Declination Get - -21:08:54" 09:13:01.134 CanSlewAsync Get - True 09:13:01.134 Connected Get True 09:13:01.141 Slewing Get Result = False 09:13:01.142 Tracking Get - True 09:13:01.391 Connected Get True 09:13:01.415 RightAscension Get - 05:42:57 09:13:01.443 Declination Get - -21:08:54" 09:13:01.443 CanSlewAsync Get - True 09:13:01.444 Connected Get True 09:13:01.452 Slewing Get Result = False 09:13:01.453 Tracking Get - True 09:13:01.703 Connected Get True 09:13:01.721 RightAscension Get - 05:42:57 09:13:01.744 Declination Get - -21:08:54" 09:13:01.744 CanSlewAsync Get - True 09:13:01.745 Connected Get True 09:13:01.754 Slewing Get Result = False 09:13:01.754 Tracking Get - True 09:13:01.995 Connected Get True 09:13:02.018 RightAscension Get - 05:42:57 09:13:02.045 Declination Get - -21:08:54" 09:13:02.046 CanSlewAsync Get - True 09:13:02.046 Connected Get True 09:13:02.054 Slewing Get Result = False 09:13:02.055 Tracking Get - True 09:13:02.308 Connected Get True 09:13:02.325 RightAscension Get - 05:42:57 09:13:02.355 Declination Get - -21:08:54" 09:13:02.356 CanSlewAsync Get - True 09:13:02.357 Connected Get True 09:13:02.364 Slewing Get Result = False 09:13:02.365 Tracking Get - True 09:13:02.503 CanMoveAxis Get - axisSecondary 09:13:02.506 MoveAxis Axis=axisSecondary rate=1 09:13:02.607 Connected Get True 09:13:02.633 RightAscension Get - 05:42:59 09:13:02.654 Declination Get - -21:08:54" 09:13:02.658 CanSlewAsync Get - True 09:13:02.658 Connected Get True 09:13:02.658 Tracking Get - True 09:13:02.901 Connected Get True 09:13:02.918 RightAscension Get - 05:42:59 09:13:02.940 Declination Get - -21:08:54" 09:13:02.940 CanSlewAsync Get - True 09:13:02.940 Connected Get True 09:13:02.941 Tracking Get - True 09:13:03.189 Connected Get True 09:13:03.206 RightAscension Get - 05:42:59 09:13:03.238 Declination Get - -21:08:54" 09:13:03.239 CanSlewAsync Get - True 09:13:03.239 Connected Get True 09:13:03.239 Tracking Get - True 09:13:03.482 Connected Get True 09:13:03.504 RightAscension Get - 05:42:59 09:13:03.539 Declination Get - -21:08:54" 09:13:03.540 CanSlewAsync Get - True 09:13:03.540 Connected Get True 09:13:03.540 Tracking Get - True 09:13:03.766 CanMoveAxis Get - axisPrimary 09:13:03.766 MoveAxis Axis=axisPrimary rate=0 09:13:03.768 CanMoveAxis Get - axisSecondary 09:13:03.769 MoveAxis Axis=axisSecondary rate=0 09:13:03.795 Connected Get True 09:13:03.813 RightAscension Get - 05:42:59 09:13:03.835 Declination Get - -21:08:54" 09:13:03.836 CanSlewAsync Get - True 09:13:03.836 Connected Get True 09:13:03.848 Slewing Get Result = False 09:13:03.848 Tracking Get - True 09:13:04.092 Connected Get True 09:13:04.114 RightAscension Get - 05:42:59 09:13:04.136 Declination Get - -21:08:54" 09:13:04.137 CanSlewAsync Get - True 09:13:04.137 Connected Get True 09:13:04.146 Slewing Get Result = False 09:13:04.147 Tracking Get - True 09:13:04.399 Connected Get True 09:13:04.416 RightAscension Get - 05:42:59 09:13:04.438 Declination Get - -21:08:54" 09:13:04.438 CanSlewAsync Get - True 09:13:04.439 Connected Get True 09:13:04.449 Slewing Get Result = False 09:13:04.449 Tracking Get - True 09:13:04.693 Connected Get True 09:13:04.711 RightAscension Get - 05:07:00 09:13:04.733 Declination Get - -24:18:14" 09:13:04.737 CanSlewAsync Get - True 09:13:04.740 Connected Get True 09:13:04.748 Slewing Get Result = False 09:13:04.749 Tracking Get - True 09:13:04.993 Connected Get True 09:13:04.999 RightAscension Get - 05:07:00 09:13:05.035 Declination Get - -24:18:14" 09:13:05.036 CanSlewAsync Get - True 09:13:05.037 Connected Get True 09:13:05.048 Slewing Get Result = False 09:13:05.048 Tracking Get - True 09:13:05.295 Connected Get True 09:13:05.314 RightAscension Get - 05:07:00 09:13:05.337 Declination Get - -24:18:14" 09:13:05.337 CanSlewAsync Get - True 09:13:05.338 Connected Get True 09:13:05.347 Slewing Get Result = False 09:13:05.347 Tracking Get - True 09:13:05.590 CanMoveAxis Get - axisSecondary 09:13:05.590 MoveAxis Axis=axisSecondary rate=-1 09:13:05.594 Connected Get True 09:13:05.614 RightAscension Get - 05:07:00 09:13:05.638 Declination Get - -24:18:14" 09:13:05.639 CanSlewAsync Get - True 09:13:05.639 Connected Get True 09:13:05.639 Tracking Get - True 09:13:05.886 Connected Get True 09:13:05.912 RightAscension Get - 05:07:00 09:13:05.938 Declination Get - -24:18:14" 09:13:05.939 CanSlewAsync Get - True 09:13:05.939 Connected Get True 09:13:05.939 Tracking Get - True 09:13:06.180 Connected Get True 09:13:06.211 RightAscension Get - 05:07:00 09:13:06.229 Declination Get - -24:18:14" 09:13:06.230 CanSlewAsync Get - True 09:13:06.230 Connected Get True 09:13:06.231 Tracking Get - True 09:13:06.478 Connected Get True 09:13:06.503 RightAscension Get - 05:07:00 09:13:06.540 Declination Get - -24:18:14" 09:13:06.540 CanSlewAsync Get - True 09:13:06.541 Connected Get True 09:13:06.541 Tracking Get - True 09:13:06.790 Connected Get True 09:13:06.826 RightAscension Get - 05:07:02 09:13:06.844 Declination Get - -24:18:14" 09:13:06.847 CanSlewAsync Get - True 09:13:06.848 Connected Get True 09:13:06.849 Tracking Get - True 09:13:07.087 Connected Get True 09:13:07.104 RightAscension Get - 05:07:02 09:13:07.115 Declination Get - -24:18:14" 09:13:07.115 CanSlewAsync Get - True 09:13:07.115 Connected Get True 09:13:07.115 Tracking Get - True 09:13:07.134 CanMoveAxis Get - axisSecondary 09:13:07.134 MoveAxis Axis=axisSecondary rate=-1 09:13:09.371 Connected Get True 09:13:09.397 RightAscension Get - 05:53:58 09:13:09.417 Declination Get - -20:04:07" 09:13:09.422 CanSlewAsync Get - True 09:13:09.424 Connected Get True 09:13:09.425 Tracking Get - True 09:13:09.431 CanMoveAxis Get - axisPrimary 09:13:09.432 MoveAxis Axis=axisPrimary rate=0 09:13:09.435 CanMoveAxis Get - axisSecondary 09:13:09.435 MoveAxis Axis=axisSecondary rate=0 09:13:09.664 Connected Get True 09:13:09.690 RightAscension Get - 05:53:58 09:13:09.709 Declination Get - -20:04:07" 09:13:09.710 CanSlewAsync Get - True 09:13:09.710 Connected Get True 09:13:09.718 Slewing Get Result = False 09:13:09.718 Tracking Get - True 09:13:09.970 Connected Get True 09:13:09.992 RightAscension Get - 05:53:58 09:13:10.028 Declination Get - -20:04:07" 09:13:10.029 CanSlewAsync Get - True 09:13:10.029 Connected Get True 09:13:10.037 Slewing Get Result = False 09:13:10.037 Tracking Get - True 09:13:10.277 Connected Get True 09:13:10.294 RightAscension Get - 05:53:58 09:13:10.316 Declination Get - -20:04:07" 09:13:10.317 CanSlewAsync Get - True 09:13:10.317 Connected Get True 09:13:10.327 Slewing Get Result = False 09:13:10.327 Tracking Get - True 09:13:10.578 Connected Get True 09:13:10.595 RightAscension Get - 05:53:58 09:13:10.630 Declination Get - -20:04:07" 09:13:10.631 CanSlewAsync Get - True 09:13:10.631 Connected Get True 09:13:10.638 Slewing Get Result = False 09:13:10.639 Tracking Get - True 09:13:10.888 Connected Get True 09:13:10.921 RightAscension Get - 05:53:58 09:13:10.939 Declination Get - -20:04:07" 09:13:10.940 CanSlewAsync Get - True 09:13:10.941 Connected Get True 09:13:10.949 Slewing Get Result = False 09:13:10.949 Tracking Get - True 09:13:11.199 Connected Get True 09:13:11.225 RightAscension Get - 06:12:10 09:13:11.245 Declination Get - -18:08:18" 09:13:11.250 CanSlewAsync Get - True 09:13:11.252 Connected Get True 09:13:11.261 Slewing Get Result = False 09:13:11.262 Tracking Get - True 09:13:11.510 Connected Get True 09:13:11.536 RightAscension Get - 06:12:10 09:13:11.554 Declination Get - -18:08:18" 09:13:11.555 CanSlewAsync Get - True 09:13:11.555 Connected Get True 09:13:11.564 Slewing Get Result = False 09:13:11.564 Tracking Get - True 09:13:11.679 CanMoveAxis Get - axisPrimary 09:13:11.679 MoveAxis Axis=axisPrimary rate=1 09:13:11.808 Connected Get True 09:13:11.840 RightAscension Get - 06:12:10 09:13:11.868 Declination Get - -18:08:18" 09:13:11.869 CanSlewAsync Get - True 09:13:11.870 Connected Get True 09:13:11.870 Tracking Get - True 09:13:12.116 Connected Get True 09:13:12.142 RightAscension Get - 06:12:10 09:13:12.154 Declination Get - -18:08:18" 09:13:12.154 CanSlewAsync Get - True 09:13:12.154 Connected Get True 09:13:12.154 Tracking Get - True 09:13:12.406 Connected Get True 09:13:12.433 RightAscension Get - 06:12:10 09:13:12.453 Declination Get - -18:08:18" 09:13:12.453 CanSlewAsync Get - True 09:13:12.454 Connected Get True 09:13:12.454 Tracking Get - True 09:13:12.702 Connected Get True 09:13:12.728 RightAscension Get - 06:12:10 09:13:12.754 Declination Get - -18:08:18" 09:13:12.754 CanSlewAsync Get - True 09:13:12.755 Connected Get True 09:13:12.755 Tracking Get - True 09:13:12.993 Connected Get True 09:13:13.018 RightAscension Get - 06:12:10 09:13:13.033 Declination Get - -18:08:18" 09:13:13.033 CanSlewAsync Get - True 09:13:13.033 Connected Get True 09:13:13.033 Tracking Get - True 09:13:13.087 CanMoveAxis Get - axisPrimary 09:13:13.087 MoveAxis Axis=axisPrimary rate=0 09:13:13.090 CanMoveAxis Get - axisSecondary 09:13:13.090 MoveAxis Axis=axisSecondary rate=0 09:13:13.273 Connected Get True 09:13:13.288 RightAscension Get - 06:31:35 09:13:13.319 Declination Get - -27:16:11" 09:13:13.323 CanSlewAsync Get - True 09:13:13.326 Connected Get True 09:13:13.336 Slewing Get Result = False 09:13:13.336 Tracking Get - True 09:13:13.588 Connected Get True 09:13:13.605 RightAscension Get - 06:31:35 09:13:13.637 Declination Get - -27:16:11" 09:13:13.638 CanSlewAsync Get - True 09:13:13.638 Connected Get True 09:13:13.645 Slewing Get Result = False 09:13:13.646 Tracking Get - True 09:13:13.652 CanMoveAxis Get - axisPrimary 09:13:13.652 MoveAxis Axis=axisPrimary rate=0 09:13:13.655 CanMoveAxis Get - axisSecondary 09:13:13.655 MoveAxis Axis=axisSecondary rate=0 09:13:13.882 Connected Get True 09:13:13.905 RightAscension Get - 06:31:35 09:13:13.933 Declination Get - -27:16:11" 09:13:13.933 CanSlewAsync Get - True 09:13:13.934 Connected Get True 09:13:13.942 Slewing Get Result = False 09:13:13.943 Tracking Get - True 09:13:14.071 CanMoveAxis Get - axisPrimary 09:13:14.071 MoveAxis Axis=axisPrimary rate=0 09:13:14.074 CanMoveAxis Get - axisSecondary 09:13:14.074 MoveAxis Axis=axisSecondary rate=0 09:13:14.186 Connected Get True 09:13:14.210 RightAscension Get - 06:31:35 09:13:14.237 Declination Get - -27:16:11" 09:13:14.238 CanSlewAsync Get - True 09:13:14.238 Connected Get True 09:13:14.247 Slewing Get Result = False 09:13:14.248 Tracking Get - True 09:13:14.438 CanMoveAxis Get - axisPrimary 09:13:14.439 MoveAxis Axis=axisPrimary rate=0 09:13:14.441 CanMoveAxis Get - axisSecondary 09:13:14.441 MoveAxis Axis=axisSecondary rate=0 09:13:14.493 Connected Get True 09:13:14.515 RightAscension Get - 06:31:35 09:13:14.539 Declination Get - -27:16:11" 09:13:14.540 CanSlewAsync Get - True 09:13:14.540 Connected Get True 09:13:14.552 Slewing Get Result = False 09:13:14.553 Tracking Get - True 09:13:14.733 CanMoveAxis Get - axisPrimary 09:13:14.734 MoveAxis Axis=axisPrimary rate=0 09:13:14.736 CanMoveAxis Get - axisSecondary 09:13:14.736 MoveAxis Axis=axisSecondary rate=0 09:13:14.811 Connected Get True 09:13:14.829 RightAscension Get - 06:31:35 09:13:14.857 Declination Get - -27:16:11" 09:13:14.857 CanSlewAsync Get - True 09:13:14.858 Connected Get True 09:13:14.865 Slewing Get Result = False 09:13:14.866 Tracking Get - True 09:13:15.018 CanMoveAxis Get - axisPrimary 09:13:15.018 MoveAxis Axis=axisPrimary rate=0 09:13:15.034 CanMoveAxis Get - axisSecondary 09:13:15.034 MoveAxis Axis=axisSecondary rate=0 09:13:15.119 Connected Get True 09:13:15.145 RightAscension Get - 06:31:35 09:13:15.165 Declination Get - -27:16:11" 09:13:15.166 CanSlewAsync Get - True 09:13:15.166 Connected Get True 09:13:15.173 Slewing Get Result = False 09:13:15.174 Tracking Get - True 09:13:15.274 CanMoveAxis Get - axisPrimary 09:13:15.275 MoveAxis Axis=axisPrimary rate=0 09:13:15.277 CanMoveAxis Get - axisSecondary 09:13:15.277 MoveAxis Axis=axisSecondary rate=0 09:13:15.418 Connected Get True 09:13:15.439 RightAscension Get - 07:05:59 09:13:15.464 Declination Get - -39:43:19" 09:13:15.468 CanSlewAsync Get - True 09:13:15.471 Connected Get True 09:13:15.479 Slewing Get Result = False 09:13:15.479 Tracking Get - True 09:13:15.729 Connected Get True 09:13:15.755 RightAscension Get - 07:05:59 09:13:15.783 Declination Get - -39:43:19" 09:13:15.783 CanSlewAsync Get - True 09:13:15.784 Connected Get True 09:13:15.791 Slewing Get Result = False 09:13:15.791 Tracking Get - True 09:13:16.044 Connected Get True 09:13:16.075 RightAscension Get - 07:05:59 09:13:16.093 Declination Get - -39:43:19" 09:13:16.094 CanSlewAsync Get - True 09:13:16.094 Connected Get True 09:13:16.103 Slewing Get Result = False 09:13:16.103 Tracking Get - True 09:13:16.351 Connected Get True 09:13:16.377 RightAscension Get - 07:05:59 09:13:16.403 Declination Get - -39:43:19" 09:13:16.404 CanSlewAsync Get - True 09:13:16.405 Connected Get True 09:13:16.421 Slewing Get Result = False 09:13:16.422 Tracking Get - True 09:13:16.671 Connected Get True 09:13:16.698 RightAscension Get - 07:05:59 09:13:16.723 Declination Get - -39:43:19" 09:13:16.724 CanSlewAsync Get - True 09:13:16.725 Connected Get True 09:13:16.737 Slewing Get Result = False 09:13:16.738 Tracking Get - True 09:13:16.744 CanMoveAxis Get - axisPrimary 09:13:16.744 MoveAxis Axis=axisPrimary rate=-1 09:13:16.980 Connected Get True 09:13:17.004 RightAscension Get - 07:05:59 09:13:17.031 Declination Get - -39:43:19" 09:13:17.032 CanSlewAsync Get - True 09:13:17.033 Connected Get True 09:13:17.033 Tracking Get - True 09:13:17.273 Connected Get True 09:13:17.305 RightAscension Get - 07:05:59 09:13:17.324 Declination Get - -39:43:19" 09:13:17.324 CanSlewAsync Get - True 09:13:17.325 Connected Get True 09:13:17.325 Tracking Get - True 09:13:17.575 Connected Get True 09:13:17.601 RightAscension Get - 06:55:43 09:13:17.628 Declination Get - -36:27:20" 09:13:17.633 CanSlewAsync Get - True 09:13:17.636 Connected Get True 09:13:17.636 Tracking Get - True 09:13:17.882 Connected Get True 09:13:17.905 RightAscension Get - 06:55:43 09:13:17.930 Declination Get - -36:27:20" 09:13:17.930 CanSlewAsync Get - True 09:13:17.931 Connected Get True 09:13:17.931 Tracking Get - True 09:13:18.180 Connected Get True 09:13:18.197 RightAscension Get - 06:55:43 09:13:18.221 Declination Get - -36:27:20" 09:13:18.222 CanSlewAsync Get - True 09:13:18.222 Connected Get True 09:13:18.222 Tracking Get - True 09:13:18.466 Connected Get True 09:13:18.483 RightAscension Get - 06:55:43 09:13:18.505 Declination Get - -36:27:20" 09:13:18.506 CanSlewAsync Get - True 09:13:18.506 Connected Get True 09:13:18.506 Tracking Get - True 09:13:18.709 CanMoveAxis Get - axisPrimary 09:13:18.709 MoveAxis Axis=axisPrimary rate=0 09:13:18.712 CanMoveAxis Get - axisSecondary 09:13:18.713 MoveAxis Axis=axisSecondary rate=0 09:13:18.762 Connected Get True 09:13:18.789 RightAscension Get - 06:55:43 09:13:18.816 Declination Get - -36:27:20" 09:13:18.817 CanSlewAsync Get - True 09:13:18.818 Connected Get True 09:13:18.826 Slewing Get Result = False 09:13:18.826 Tracking Get - True 09:13:18.934 CanMoveAxis Get - axisPrimary 09:13:18.934 MoveAxis Axis=axisPrimary rate=0 09:13:18.936 CanMoveAxis Get - axisSecondary 09:13:18.937 MoveAxis Axis=axisSecondary rate=0 09:13:19.070 Connected Get True 09:13:19.097 RightAscension Get - 06:55:43 09:13:19.121 Declination Get - -36:27:20" 09:13:19.122 CanSlewAsync Get - True 09:13:19.122 Connected Get True 09:13:19.130 Slewing Get Result = False 09:13:19.130 Tracking Get - True 09:13:19.229 CanMoveAxis Get - axisPrimary 09:13:19.230 MoveAxis Axis=axisPrimary rate=0 09:13:19.233 CanMoveAxis Get - axisSecondary 09:13:19.234 MoveAxis Axis=axisSecondary rate=0 09:13:19.372 Connected Get True 09:13:19.395 RightAscension Get - 06:55:43 09:13:19.423 Declination Get - -36:27:20" 09:13:19.423 CanSlewAsync Get - True 09:13:19.424 Connected Get True 09:13:19.432 Slewing Get Result = False 09:13:19.433 Tracking Get - True 09:13:19.678 Connected Get True 09:13:19.718 RightAscension Get - 06:32:45 09:13:19.746 Declination Get - -27:43:16" 09:13:19.751 CanSlewAsync Get - True 09:13:19.755 Connected Get True 09:13:19.763 Slewing Get Result = False 09:13:19.764 Tracking Get - True 09:13:20.011 Connected Get True 09:13:20.028 RightAscension Get - 06:32:45 09:13:20.056 Declination Get - -27:43:16" 09:13:20.057 CanSlewAsync Get - True 09:13:20.058 Connected Get True 09:13:20.074 Slewing Get Result = False 09:13:20.075 Tracking Get - True 09:13:20.321 Connected Get True 09:13:20.339 RightAscension Get - 06:32:45 09:13:20.366 Declination Get - -27:43:16" 09:13:20.367 CanSlewAsync Get - True 09:13:20.368 Connected Get True 09:13:20.376 Slewing Get Result = False 09:13:20.376 Tracking Get - True 09:13:20.621 Connected Get True 09:13:20.640 RightAscension Get - 06:32:45 09:13:20.666 Declination Get - -27:43:16" 09:13:20.667 CanSlewAsync Get - True 09:13:20.667 Connected Get True 09:13:20.677 Slewing Get Result = False 09:13:20.678 Tracking Get - True 09:13:20.928 Connected Get True 09:13:20.946 RightAscension Get - 06:32:45 09:13:20.979 Declination Get - -27:43:16" 09:13:20.980 CanSlewAsync Get - True 09:13:20.980 Connected Get True 09:13:20.987 Slewing Get Result = False 09:13:20.988 Tracking Get - True 09:13:21.227 Connected Get True 09:13:21.248 RightAscension Get - 06:32:45 09:13:21.280 Declination Get - -27:43:16" 09:13:21.281 CanSlewAsync Get - True 09:13:21.281 Connected Get True 09:13:21.289 Slewing Get Result = False 09:13:21.289 Tracking Get - True 09:13:21.540 Connected Get True 09:13:21.563 RightAscension Get - 06:32:45 09:13:21.591 Declination Get - -27:43:16" 09:13:21.592 CanSlewAsync Get - True 09:13:21.592 Connected Get True 09:13:21.600 Slewing Get Result = False 09:13:21.601 Tracking Get - True 09:13:21.783 CanMoveAxis Get - axisPrimary 09:13:21.783 MoveAxis Axis=axisPrimary rate=-1 09:13:21.852 Connected Get True 09:13:21.874 RightAscension Get - 06:32:47 09:13:21.899 Declination Get - -27:43:16" 09:13:21.903 CanSlewAsync Get - True 09:13:21.903 Connected Get True 09:13:21.904 Tracking Get - True 09:13:22.152 Connected Get True 09:13:22.178 RightAscension Get - 06:32:47 09:13:22.200 Declination Get - -27:43:16" 09:13:22.200 CanSlewAsync Get - True 09:13:22.201 Connected Get True 09:13:22.201 Tracking Get - True 09:13:22.449 Connected Get True 09:13:22.475 RightAscension Get - 06:32:47 09:13:22.501 Declination Get - -27:43:16" 09:13:22.501 CanSlewAsync Get - True 09:13:22.502 Connected Get True 09:13:22.502 Tracking Get - True 09:13:22.534 CanMoveAxis Get - axisPrimary 09:13:22.535 MoveAxis Axis=axisPrimary rate=0 09:13:22.538 CanMoveAxis Get - axisSecondary 09:13:22.538 MoveAxis Axis=axisSecondary rate=0 09:13:22.742 Connected Get True 09:13:22.759 RightAscension Get - 06:32:47 09:13:22.788 Declination Get - -27:43:16" 09:13:22.789 CanSlewAsync Get - True 09:13:22.789 Connected Get True 09:13:22.797 Slewing Get Result = False 09:13:22.798 Tracking Get - True 09:13:23.042 Connected Get True 09:13:23.060 RightAscension Get - 06:32:47 09:13:23.089 Declination Get - -27:43:16" 09:13:23.090 CanSlewAsync Get - True 09:13:23.090 Connected Get True 09:13:23.097 Slewing Get Result = False 09:13:23.098 Tracking Get - True 09:13:23.197 CanMoveAxis Get - axisPrimary 09:13:23.198 MoveAxis Axis=axisPrimary rate=0 09:13:23.201 CanMoveAxis Get - axisSecondary 09:13:23.201 MoveAxis Axis=axisSecondary rate=0 09:13:23.336 Connected Get True 09:13:23.356 RightAscension Get - 06:32:47 09:13:23.375 Declination Get - -27:43:16" 09:13:23.376 CanSlewAsync Get - True 09:13:23.376 Connected Get True 09:13:23.394 Slewing Get Result = False 09:13:23.394 Tracking Get - True 09:13:23.526 CanMoveAxis Get - axisPrimary 09:13:23.527 MoveAxis Axis=axisPrimary rate=0 09:13:23.529 CanMoveAxis Get - axisSecondary 09:13:23.529 MoveAxis Axis=axisSecondary rate=0 09:13:23.640 Connected Get True 09:13:23.666 RightAscension Get - 06:32:47 09:13:23.689 Declination Get - -27:43:16" 09:13:23.689 CanSlewAsync Get - True 09:13:23.690 Connected Get True 09:13:23.704 Slewing Get Result = False 09:13:23.704 Tracking Get - True 09:13:23.791 CanMoveAxis Get - axisPrimary 09:13:23.792 MoveAxis Axis=axisPrimary rate=0 09:13:23.794 CanMoveAxis Get - axisSecondary 09:13:23.794 MoveAxis Axis=axisSecondary rate=0 09:13:23.945 Connected Get True 09:13:23.998 RightAscension Get - 06:04:18 09:13:24.032 Declination Get - -13:53:01" 09:13:24.036 CanSlewAsync Get - True 09:13:24.038 Connected Get True 09:13:24.051 Slewing Get Result = False 09:13:24.052 Tracking Get - True 09:13:24.060 CanMoveAxis Get - axisPrimary 09:13:24.060 MoveAxis Axis=axisPrimary rate=0 09:13:24.062 CanMoveAxis Get - axisSecondary 09:13:24.063 MoveAxis Axis=axisSecondary rate=0 09:13:24.271 CanMoveAxis Get - axisPrimary 09:13:24.271 MoveAxis Axis=axisPrimary rate=0 09:13:24.273 CanMoveAxis Get - axisSecondary 09:13:24.274 MoveAxis Axis=axisSecondary rate=0 09:13:24.297 Connected Get True 09:13:24.323 RightAscension Get - 06:04:18 09:13:24.349 Declination Get - -13:53:01" 09:13:24.350 CanSlewAsync Get - True 09:13:24.350 Connected Get True 09:13:24.360 Slewing Get Result = False 09:13:24.360 Tracking Get - True 09:13:24.494 CanMoveAxis Get - axisPrimary 09:13:24.494 MoveAxis Axis=axisPrimary rate=0 09:13:24.497 CanMoveAxis Get - axisSecondary 09:13:24.498 MoveAxis Axis=axisSecondary rate=0 09:13:24.602 Connected Get True 09:13:24.620 RightAscension Get - 06:04:18 09:13:24.644 Declination Get - -13:53:01" 09:13:24.645 CanSlewAsync Get - True 09:13:24.645 Connected Get True 09:13:24.655 Slewing Get Result = False 09:13:24.655 Tracking Get - True 09:13:24.719 CanMoveAxis Get - axisPrimary 09:13:24.719 MoveAxis Axis=axisPrimary rate=0 09:13:24.721 CanMoveAxis Get - axisSecondary 09:13:24.722 MoveAxis Axis=axisSecondary rate=0 09:13:24.906 Connected Get True 09:13:24.924 RightAscension Get - 06:04:18 09:13:24.957 Declination Get - -13:53:01" 09:13:24.958 CanSlewAsync Get - True 09:13:24.959 Connected Get True 09:13:24.966 Slewing Get Result = False 09:13:24.966 Tracking Get - True 09:13:25.219 Connected Get True 09:13:25.240 RightAscension Get - 06:04:18 09:13:25.266 Declination Get - -13:53:01" 09:13:25.267 CanSlewAsync Get - True 09:13:25.267 Connected Get True 09:13:25.277 Slewing Get Result = False 09:13:25.277 Tracking Get - True 09:13:25.522 Connected Get True 09:13:25.541 RightAscension Get - 06:04:18 09:13:25.565 Declination Get - -13:53:01" 09:13:25.566 CanSlewAsync Get - True 09:13:25.566 Connected Get True 09:13:25.578 Slewing Get Result = False 09:13:25.579 Tracking Get - True 09:13:25.827 Connected Get True 09:13:25.845 RightAscension Get - 06:04:18 09:13:25.879 Declination Get - -13:53:01" 09:13:25.880 CanSlewAsync Get - True 09:13:25.880 Connected Get True 09:13:25.888 Slewing Get Result = False 09:13:25.888 Tracking Get - True 09:13:26.134 Connected Get True 09:13:26.153 RightAscension Get - 05:56:12 09:13:26.175 Declination Get - -09:22:41" 09:13:26.179 CanSlewAsync Get - True 09:13:26.182 Connected Get True 09:13:26.190 Slewing Get Result = False 09:13:26.191 Tracking Get - True 09:13:26.436 Connected Get True 09:13:26.466 RightAscension Get - 05:56:12 09:13:26.501 Declination Get - -09:22:41" 09:13:26.502 CanSlewAsync Get - True 09:13:26.503 Connected Get True 09:13:26.510 Slewing Get Result = False 09:13:26.510 Tracking Get - True 09:13:26.831 Connected Get True 09:13:26.849 RightAscension Get - 05:56:12 09:13:26.872 Declination Get - -09:22:41" 09:13:26.872 CanSlewAsync Get - True 09:13:26.872 Connected Get True 09:13:26.885 Slewing Get Result = False 09:13:26.886 Tracking Get - True 09:13:27.132 Connected Get True 09:13:27.149 RightAscension Get - 05:56:12 09:13:27.185 Declination Get - -09:22:41" 09:13:27.186 CanSlewAsync Get - True 09:13:27.186 Connected Get True 09:13:27.194 Slewing Get Result = False 09:13:27.194 Tracking Get - True 09:13:27.503 Connected Get True 09:13:27.521 RightAscension Get - 05:56:12 09:13:27.551 Declination Get - -09:22:41" 09:13:27.552 CanSlewAsync Get - True 09:13:27.552 Connected Get True 09:13:27.559 Slewing Get Result = False 09:13:27.560 Tracking Get - True 09:13:27.850 Connected Get True 09:13:27.868 RightAscension Get - 05:56:12 09:13:27.889 Declination Get - -09:22:41" 09:13:27.889 CanSlewAsync Get - True 09:13:27.890 Connected Get True 09:13:27.899 Slewing Get Result = False 09:13:27.900 Tracking Get - True 09:13:28.150 Connected Get True 09:13:28.168 RightAscension Get - 05:56:12 09:13:28.199 Declination Get - -09:22:41" 09:13:28.199 CanSlewAsync Get - True 09:13:28.200 Connected Get True 09:13:28.207 Slewing Get Result = False 09:13:28.208 Tracking Get - True 09:13:28.444 Connected Get True 09:13:28.470 RightAscension Get - 05:56:14 09:13:28.494 Declination Get - -09:22:41" 09:13:28.498 CanSlewAsync Get - True 09:13:28.499 Connected Get True 09:13:28.513 Slewing Get Result = False 09:13:28.513 Tracking Get - True 09:13:28.763 Connected Get True 09:13:28.790 RightAscension Get - 05:56:14 09:13:28.814 Declination Get - -09:22:41" 09:13:28.815 CanSlewAsync Get - True 09:13:28.815 Connected Get True 09:13:28.832 Slewing Get Result = False 09:13:28.832 Tracking Get - True 09:13:29.078 Connected Get True 09:13:29.104 RightAscension Get - 05:56:14 09:13:29.131 Declination Get - -09:22:41" 09:13:29.131 CanSlewAsync Get - True 09:13:29.132 Connected Get True 09:13:29.141 Slewing Get Result = False 09:13:29.141 Tracking Get - True 09:13:29.387 Connected Get True 09:13:29.406 RightAscension Get - 05:56:14 09:13:29.433 Declination Get - -09:22:41" 09:13:29.433 CanSlewAsync Get - True 09:13:29.434 Connected Get True 09:13:29.447 Slewing Get Result = False 09:13:29.447 Tracking Get - True 09:13:29.695 Connected Get True 09:13:29.724 RightAscension Get - 05:56:14 09:13:29.742 Declination Get - -09:22:41" 09:13:29.743 CanSlewAsync Get - True 09:13:29.743 Connected Get True 09:13:29.752 Slewing Get Result = False 09:13:29.752 Tracking Get - True 09:13:29.998 Connected Get True 09:13:30.026 RightAscension Get - 05:56:14 09:13:30.044 Declination Get - -09:22:41" 09:13:30.045 CanSlewAsync Get - True 09:13:30.045 Connected Get True 09:13:30.054 Slewing Get Result = False 09:13:30.054 Tracking Get - True 09:13:30.311 Connected Get True 09:13:30.343 RightAscension Get - 05:56:14 09:13:30.362 Declination Get - -09:22:41" 09:13:30.362 CanSlewAsync Get - True 09:13:30.363 Connected Get True 09:13:30.371 Slewing Get Result = False 09:13:30.372 Tracking Get - True 09:13:30.601 Connected Set False 09:13:30.601 Connected Set Disconnecting from port COM3 |
|
1) It is expected the mount must be unparked and tracking before the arrow button can work. ANSWER: a) Ok, this corresponds to the behavior of the simulation driver, but not for the Meade driver. b) The Meade telescope mount is not parked (I never use this function). In this case, if CDS is assumint that, it is wrong. I think it is not because the arrows starts the slewing. They only did not stop them. |
|
Sorry, I need to interrupt now. I'll return later. Thanks for a while. |
|
Thank you for the files, this help me to search for similar behavior with different simulator and I can find one that not stop moving when pressing the Stop button. The ASCOM documentation mention two way to stop the movement: call MoveAxis with a speed of 0 (this is what I was doing), or call AbortSlew. This is probably a bug in the driver if it not stop with the first command, but I make a change to the program to send both and this fixed the simulator. Maybe this can also fix the Meade driver. About the arrow not working at all, the trace files rise a doubt about a problem with the speed selection. I make a few change to the code to make it more reliable in some situation and add a display of the speed range in the ASCOM panel. A test version with this change is available from https://vega.ap-i.net/tmp/skychart/ Please download and install the version you need, probably skychart-4.3-4138-windows.exe Please test if it work better. I am also very interested to know the speed the mount report. Can you do a screenshot the same as the two I attach here. In the observer tool this is the dropdown list, in the Ascom panel just move the cursor over the number selection. |
|
Thank you Patrick. I will download the test vesion, install it and run as soon as possible. After this I will report the result to you. Congratullations for your beautifull work! Keep doind this! Have a nice day. |
|
See the attached files. |
|
This is really strange, now I not see what I can change more, I need more information. A way to get more information is you install the ASCOMPAD application. This a virtual handpad for the telescope and the focuser that also work with game controller or joystick. Install the version V209 from: https://sourceforge.net/projects/eq-mod/files/ASCOMPAD/ After you start this application select the menu Devices / Mount / Setup On the top left click Select, and select the Meade driver. Then click "Driver capabilities", take a screenshot and post here. I am particularly interested by the bottom box "Axis Rates". If the list is longer than the box please scroll down and take another screenshot. Close the window. Then move the slider for Preset Slew Rates 1 to the middle of the range, click Apply Changes on the bottom right. From the main window select the menu Devices / Mount / Connect Be sure "1" is selected in the dropdown box. Try if the button N/S/E/W move the mount correctly. It must stop when you release the button. |
|
Hello, I installed ASCOMPAD and performed the procedures you indicated. As you predicted, all the arrows worked perfectly. The telescope's movement stops when the key is released. I performed the test with 2 telescope models, LX90 and LX200, and the result is the same. Here are the screenshots you requested. Please review and if you need any more testing, just ask. Best regards, |
|

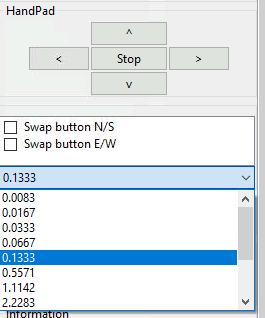

Thank you very much. I think I understand. According to the ASCOM specification the speed parameter for MoveAxis is in degree per second with minimum and maximum range. But here it list a series 1,2,3,4 and I think this is used to map the four speed of the LX200: GUIDE, CENTER, FIND, SLEW. I have to adapt my code for this special use. |
|
I am very happy to be able to help you. Try to implement the functionality of when you release the click on the arrow, the movement stops by itself. Once you have a new version, send it to us for testing. I am available. Best regards, |
|
The new test version skychart-4.3-4140 is available from: https://vega.ap-i.net/tmp/skychart/ Now it must list 1,2,3,4 in the speed selection box. Select at least 2 or 3 because 1 most likely do not produce any visible movement. In the ASCOM panel the movement stop when you release the arrow button, it must move only when the arrow is red. I cannot do that in the Observer tool for now because there is no separated script function for button down and up. |
|
I updated the script to support down/up button events. In tomorrow beta version the Observer tool arrow buttons will also stop the telescope motion when released. |
|
The beta version with all the change is available: https://sourceforge.net/projects/skychart/files/0-beta/2020-05-04/ Can you tell me if it is OK with your mount? |
|
Hello Patrick. I am sorry. I didn't pay attention to Mantis past days. Neither received an e-mail as usual occours. I will install the beta version and report to yous. Please wait. |
|
I installed version 4.3-beta-4148. Great progress has been made. In the ASCOM telescope interface window, the 4 arrows work perfectly. The movement stops immediately when we release the keys. However, in the Observer Tools window there is still a difference in behavior between the up / down and left / right keys. The former work perfectly as in the ASCOM window. The left / right arrows sometimes freeze and it is necessary to click Stop once or more times. I tried to make trace files for you to analyze, but when selecting "Trace on" in the driver setup an error message appears: "Driver setup method failed: ASCOM.MeadeGeneric.Telescope Object reference not defined for an object instance". This has never happened before. The speed selection appears as 1, 2, 3, 4, 0.0000, 0.0000, 0.0000, 0 in the ASCOM window and 1, 2, 3, 4, 0, 0, 0 in Observer tools but does not cause any change in the speed of the telescope . |
|
When the speed is selected as "0", the activation of the arrows does not cause movement. But selecting 1, 2, 3, 4 does not cause any change in speed. |
|
Good morning Patrick. I have new information for you. I installed version 4149, but even before that I discovered something else. All this time I was using a connection cable between the computer and the telescopes, which uses the UART Silicon Labs CP210x which has the behavior that we talked about so much. I decided to do tests with another USB / Serial converter that uses the UART Prolific, manufactured by TrendNet (TU-S9). With this converter everything works perfectly, including speed selection (1, 2, 3, 4). There is still a subtle difference in behavior between the up / down and left / right arrows in the Observer Tools window, but they all stop the movement as soon as they are released. So, I hope I helped you in some way. If you need any help in the future, send an email and we'll talk. Regards and congratulations on your work. |
|
It is good you tested the other adapter because I was short on idea now. Not easy to sort out the problem when this is a mix of software and hardware issues. I am very happy this buttons in CdC are now much better and reliable thanks to your help. Best regards, Patrick |
Date Modified | Username | Field | Change |
---|---|---|---|
20-04-27 17:14 | Sergio Mantelatto | New Issue | |
20-04-27 17:41 | Patrick Chevalley | Assigned To | => Patrick Chevalley |
20-04-27 17:41 | Patrick Chevalley | Status | new => feedback |
20-04-27 17:41 | Patrick Chevalley | Note Added: 0006544 | |
20-04-27 18:21 | Sergio Mantelatto | Note Added: 0006545 | |
20-04-27 18:21 | Sergio Mantelatto | Status | feedback => assigned |
20-04-27 18:54 | Patrick Chevalley | Note Added: 0006546 | |
20-04-27 18:54 | Patrick Chevalley | File Added: tool1.png | |
20-04-27 18:54 | Patrick Chevalley | File Added: tool2.png | |
20-04-27 20:26 | Sergio Mantelatto | Note Added: 0006547 | |
20-04-28 10:25 | Patrick Chevalley | Status | assigned => feedback |
20-04-28 10:25 | Patrick Chevalley | Note Added: 0006551 | |
20-04-28 14:42 | Sergio Mantelatto | Note Added: 0006554 | |
20-04-28 14:42 | Sergio Mantelatto | File Added: ASCOM INTERFACE-ASCOM.Meade.Generic.Telescope.0907.359460.txt | |
20-04-28 14:42 | Sergio Mantelatto | Status | feedback => assigned |
20-04-28 15:03 | Patrick Chevalley | Note Added: 0006555 | |
20-04-28 15:04 | Sergio Mantelatto | Note Added: 0006556 | |
20-04-28 15:04 | Sergio Mantelatto | File Added: OBSERVER TOOLS-ASCOM.Meade.Generic.Telescope.0912.593420.txt | |
20-04-28 15:15 | Sergio Mantelatto | Note Added: 0006557 | |
20-04-28 15:17 | Sergio Mantelatto | Note Added: 0006558 | |
20-04-29 17:31 | Patrick Chevalley | Note Added: 0006561 | |
20-04-29 17:31 | Patrick Chevalley | File Added: speed1.png | |
20-04-29 17:31 | Patrick Chevalley | File Added: speed2.png | |
20-04-29 17:39 | Sergio Mantelatto | Note Added: 0006562 | |
20-04-29 21:08 | Sergio Mantelatto | Note Added: 0006564 | |
20-04-29 21:08 | Sergio Mantelatto | File Added: Task 2324-Report Version 4138-577b.pdf | |
20-04-29 21:08 | Sergio Mantelatto | File Added: ASCOM.Meade.Generic.Telescope.1556.421160.txt.zip | |
20-04-29 21:51 | Patrick Chevalley | Note Added: 0006565 | |
20-04-30 20:35 | Sergio Mantelatto | Note Added: 0006571 | |

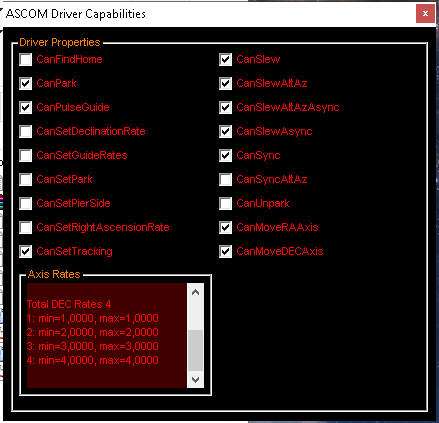

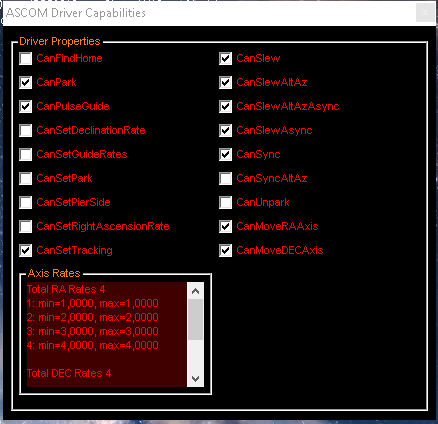

20-04-30 20:35 | Sergio Mantelatto | File Added: Driver Capabilities 1 - LX90.png | |
