View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
0001509 | SkyChart | 1-Software | public | 16-02-15 08:24 | 16-02-16 08:47 |
Reporter | Sasa | Assigned To | Patrick Chevalley | ||
Priority | low | Severity | tweak | Reproducibility | always |
Status | resolved | Resolution | fixed | ||
Platform | Linux 64-bit | OS | Kubuntu | OS Version | 14.04 |
Product Version | 3.11 SVN | ||||
Target Version | 4.0 | Fixed in Version | 3.11 SVN | ||
Summary | 0001509: Too short width on some components or mis-positioned | ||||
Description | There is quite a few short width on many components, on many forms. That is a bit more complicated when change default language. Or other components are mis-positioned For instance: - Observatory form. Text "North" was cutoff (fixed in latest SVN revision), also should be check with other languages. Minute edit field is too short - visible, however too close to the right border and if selected it is a bit. - Ephemeris calendar - similar for edit fields to set time - Planet settings - Jupiter GRS longitude edit field - Asteroid settings, Data maintenance tab - almost all mis-positioned - Display colors - almost all mis-positioned - Variable stars observer - Date, JD, Dec, are cutoff as well as "Output date format" panel Etc. Perhaps there is more. | ||||
Tags | No tags attached. | ||||
|
Can you give me what is your screen dpi and default Gtk font size? |
|
I have attached related System default settings and "Variable star" CDC form screenshot. |
|
|
|
|
|
|
|
|
|
All this problem is because I only take account for screen DPI to resize the control, not the font size. And you use a font size of 12 for Gtk, bigger than for KDE, and this make all this problems. I have fixed that by also computing a resizing based on the font size. Now everything work fine, even if you set a default font size of 14 or 16. Done by revision 3241 to 3243: https://sourceforge.net/p/skychart/code/3241/ Revision 3244 do the fix for Varobs: https://sourceforge.net/p/skychart/code/3244/ |
|
These are all default settings, I have change nothing regarding fonts... Unfortunately, there is still many GUI problems. I will attach screen shots for these still problematic... Variables star form is exactly the same as it was. |
|
|
|
|
|
|
|
|
|

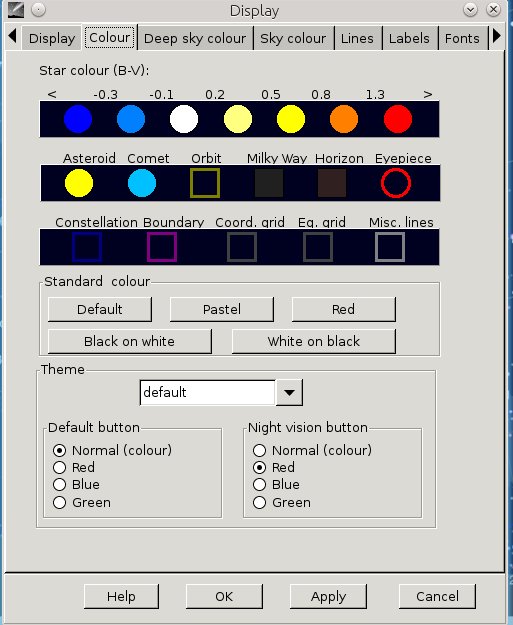

Yes, but the bug is not with Skychart, but with oxygen-gtk theme. I never use this theme because it is full of bug and even crashed some application. And it is a Kubuntu bug to make it by default. Fortunately it is not the default in 15.10 and will probably not be in new 16.04 lts. See the screen shot I make with the default gtk2, without any theme. If you want a theme that look like KDE in 14.04 please use QtCurve which is much better. I will not move or resize the component position just for this theme because it will make too much spacing on the other system. |
Date Modified | Username | Field | Change |
---|---|---|---|
16-02-15 08:24 | Sasa | New Issue | |
16-02-15 11:43 | Patrick Chevalley | Note Added: 0003295 | |
16-02-15 11:43 | Patrick Chevalley | Assigned To | => Patrick Chevalley |
16-02-15 11:43 | Patrick Chevalley | Status | new => feedback |
16-02-15 14:19 | Sasa | Note Added: 0003300 | |
16-02-15 14:19 | Sasa | Status | feedback => assigned |

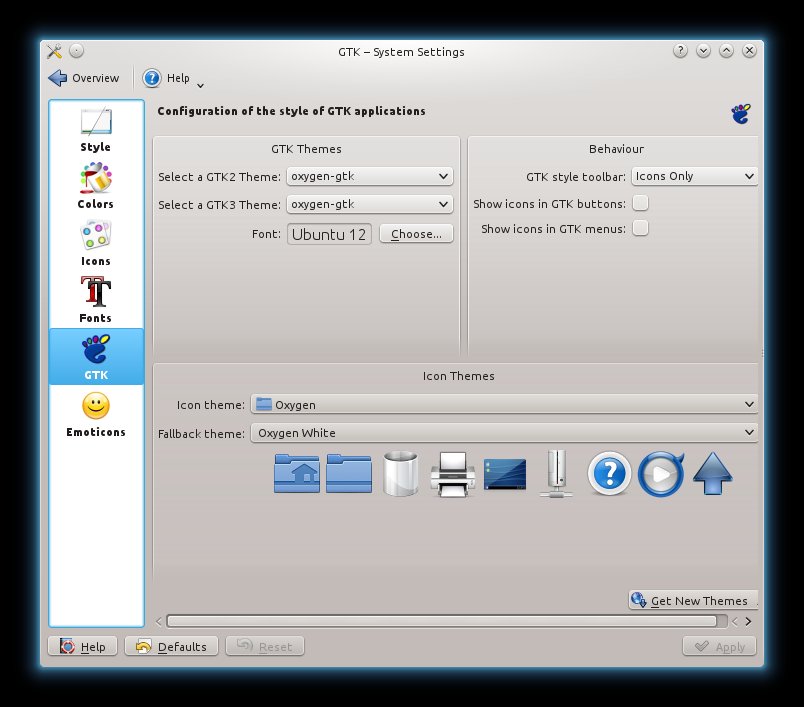

16-02-15 14:19 | Sasa | File Added: Font settings- default on Kubuntu GTK.jpeg | |

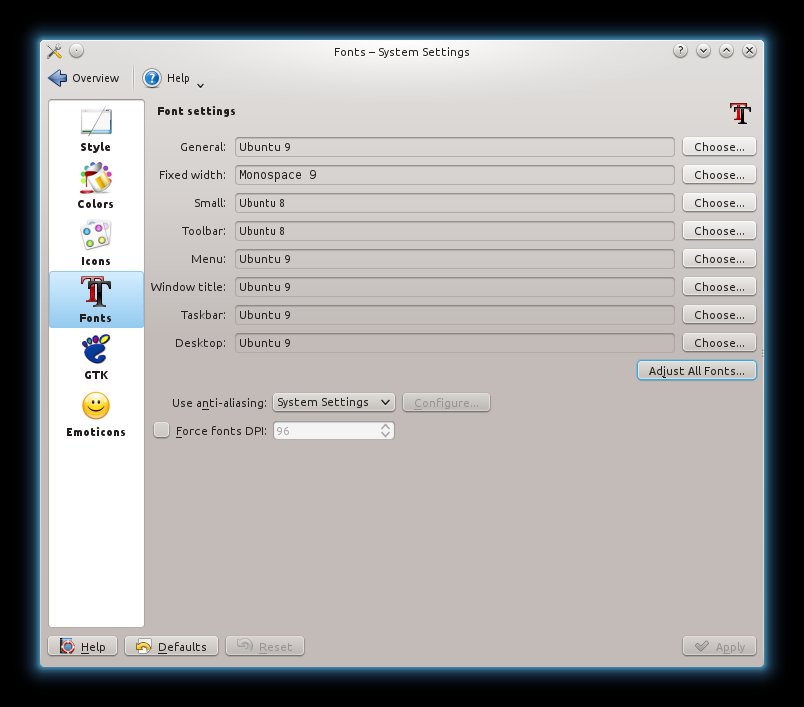

16-02-15 14:20 | Sasa | File Added: Font settings- default on Kubuntu.jpeg | |

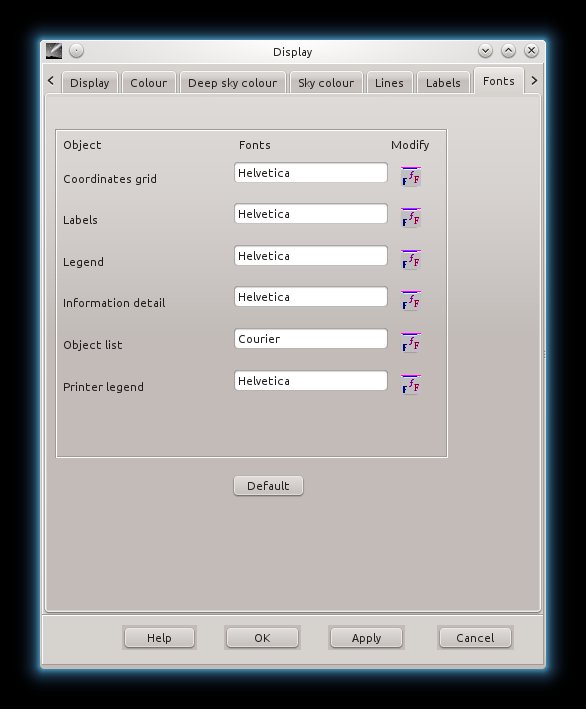

16-02-15 14:20 | Sasa | File Added: Font settings- default in CDC.jpeg | |

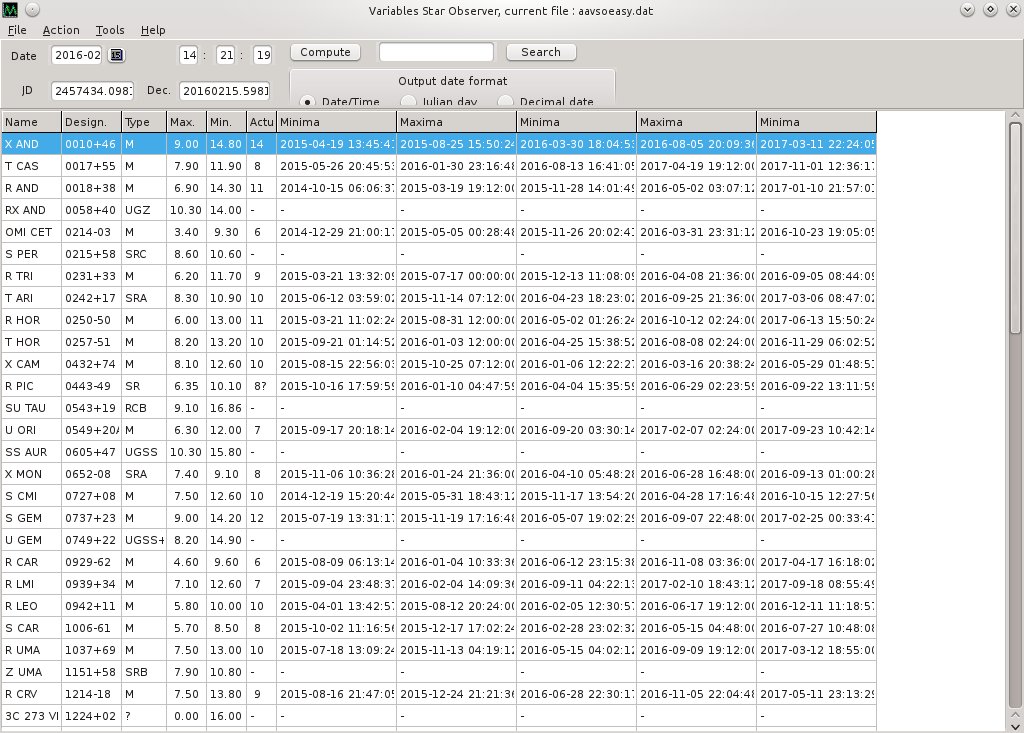

16-02-15 14:23 | Sasa | File Added: Variables star - screenshot.jpeg | |
16-02-15 19:04 | Patrick Chevalley | Note Added: 0003304 | |
16-02-15 19:04 | Patrick Chevalley | Status | assigned => resolved |
16-02-15 19:04 | Patrick Chevalley | Resolution | open => fixed |
16-02-15 19:04 | Patrick Chevalley | Fixed in Version | => 3.11 SVN |
16-02-15 19:04 | Patrick Chevalley | Target Version | => 4.0 |
16-02-15 21:52 | Sasa | Note Added: 0003310 | |
16-02-15 21:52 | Sasa | Status | resolved => new |
16-02-15 21:52 | Sasa | Resolution | fixed => reopened |
16-02-15 21:52 | Sasa | Note Edited: 0003310 | |

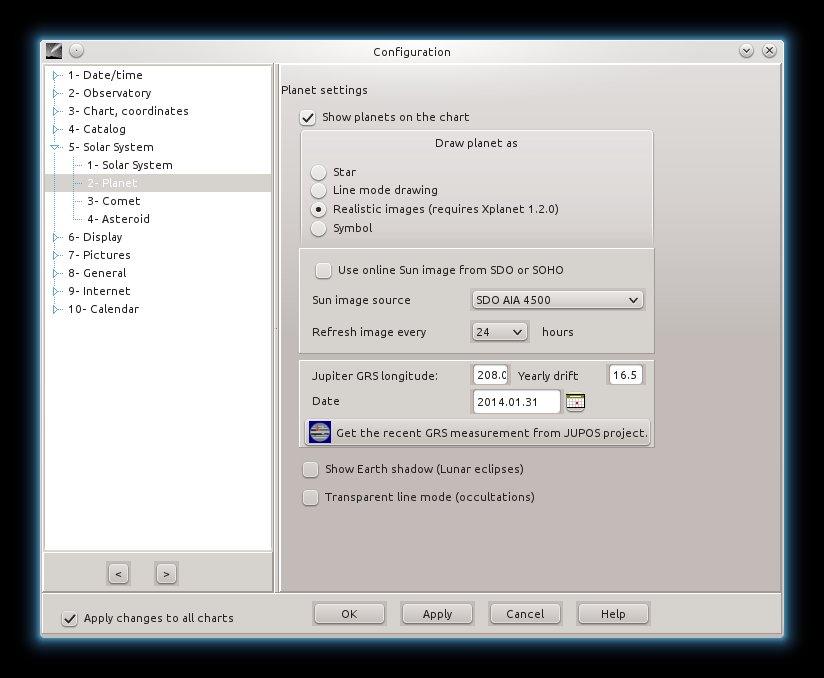

16-02-15 21:54 | Sasa | File Added: Planet settings - Jupiter GRS value cutoff.jpeg | |

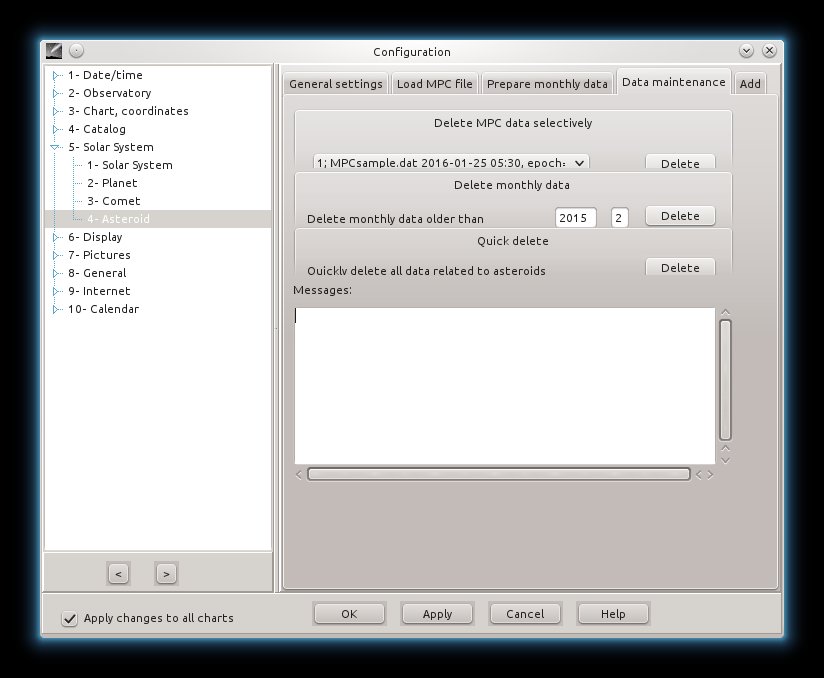

16-02-15 21:56 | Sasa | File Added: Asteroids - mispositioned.jpeg | |

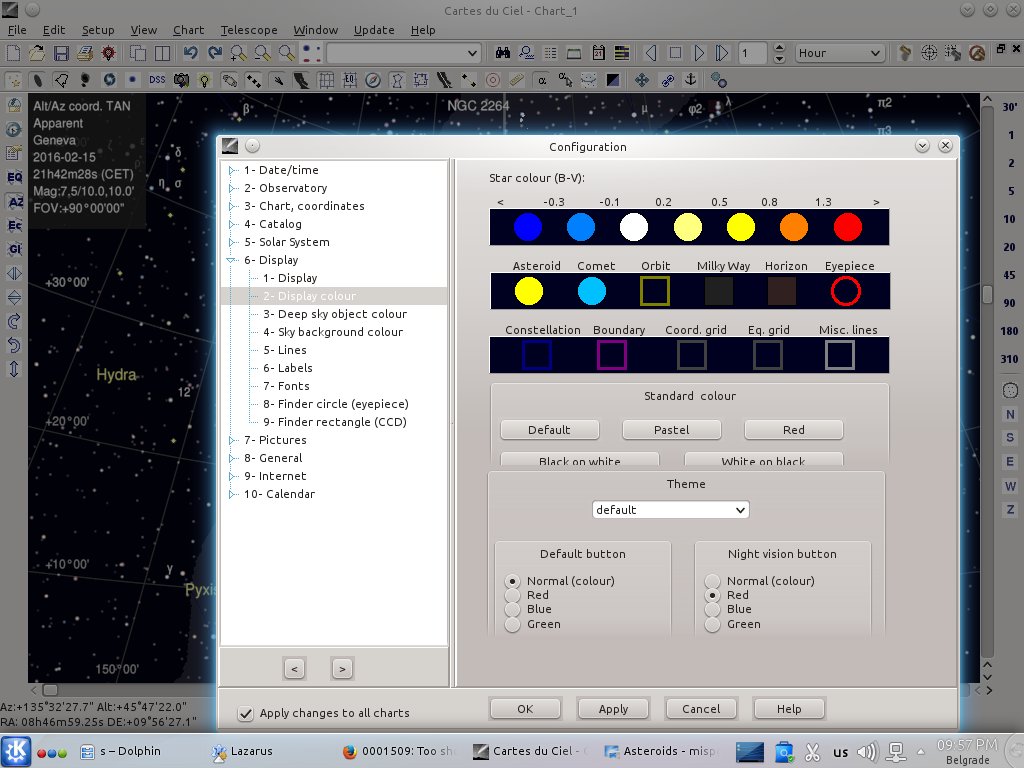

16-02-15 21:58 | Sasa | File Added: Display color - mispositioned.jpeg | |
16-02-15 22:12 | Sasa | Note Edited: 0003310 | |
16-02-15 22:16 | Sasa | Note Edited: 0003310 | |
16-02-16 08:33 | Patrick Chevalley | File Added: gtk2-default.jpg | |
16-02-16 08:47 | Patrick Chevalley | Note Added: 0003314 | |
16-02-16 08:47 | Patrick Chevalley | Status | new => resolved |
16-02-16 08:47 | Patrick Chevalley | Resolution | reopened => fixed |
