View Issue Details
|ID||Project||Category||View Status||Date Submitted||Last Update|
|0001514||SkyChart||1-Software||public||16-02-16 00:30||16-02-16 14:59|
|Reporter||Sasa||Assigned To||Patrick Chevalley|
|Target Version||4.0||Fixed in Version||3.11 SVN|
|Summary||0001514: Cascade charts view issues|
|Description||Small issues are present when display several charts in cascade view.|

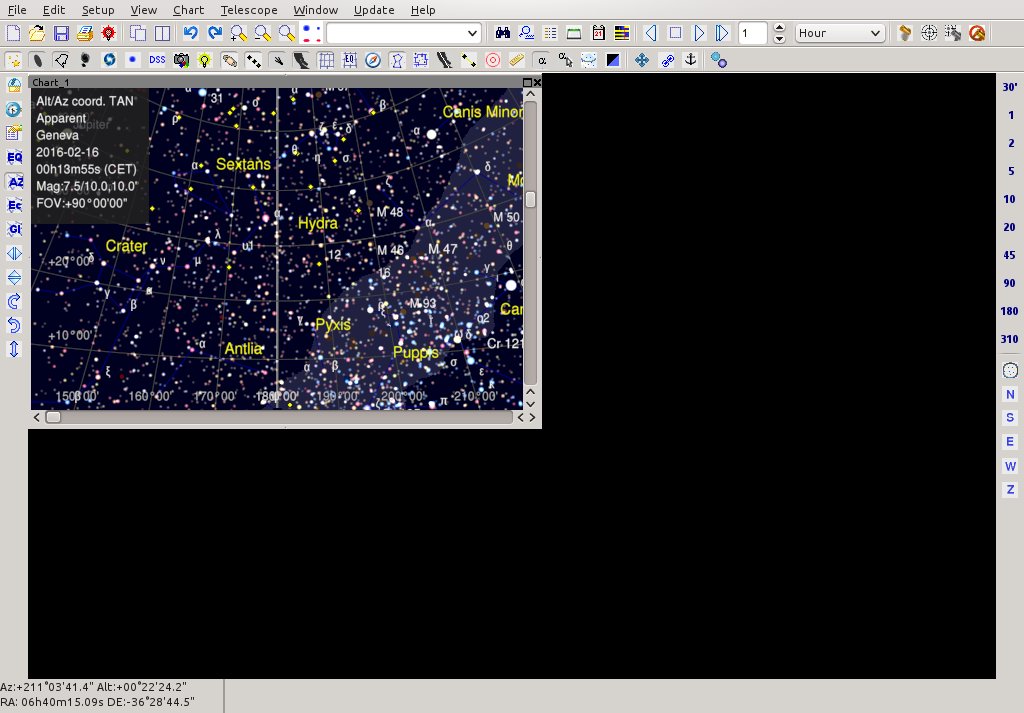

1. If exists one chart, on cascade it form will be shorten.Even that is not needed, let say it is fine. (Attached)

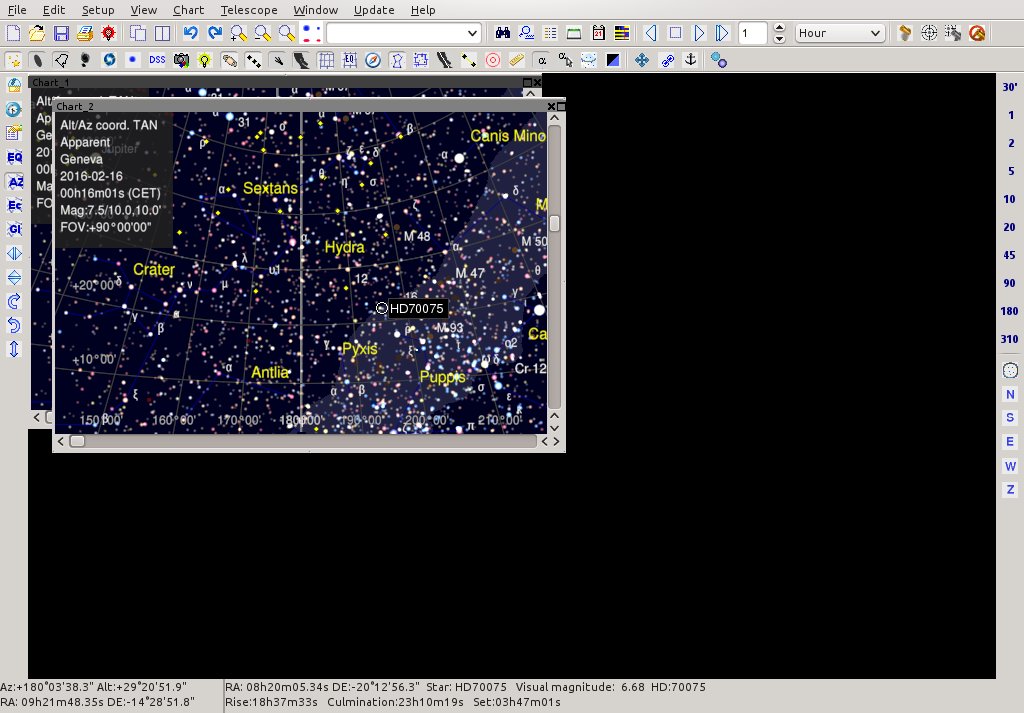

2. Then create new chart. Interesting, blurry part is shown until recalculation. (Attached)

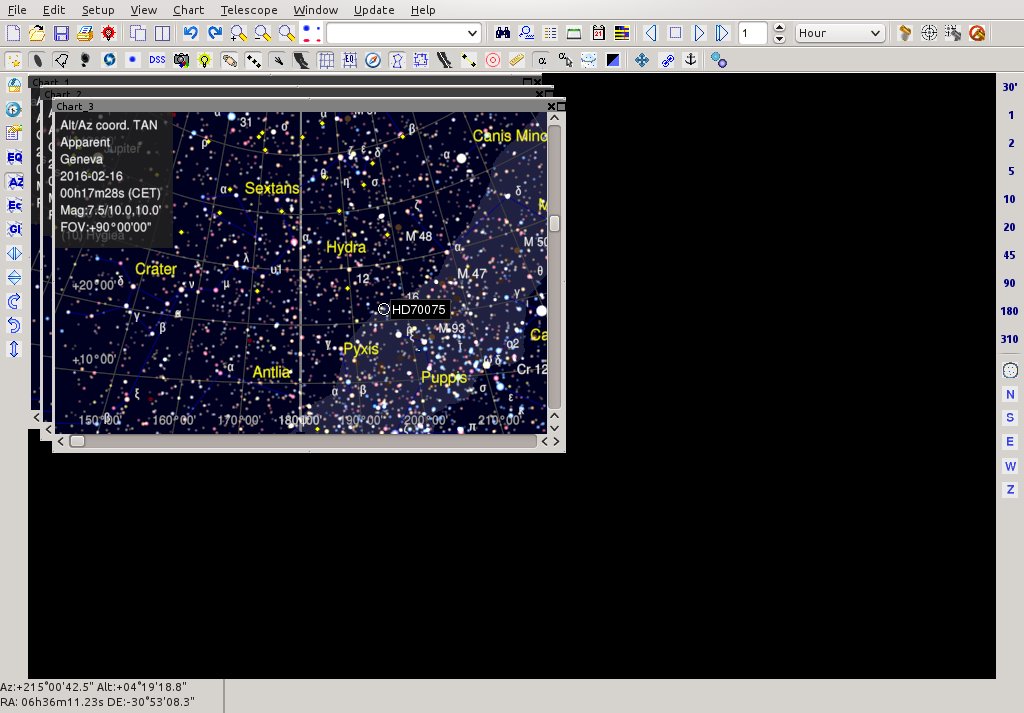

3. Create third chart and click vertical and than back to cascade. Title bar should be entirely visible, However it is partially visible. As well title bar is dark as well as title font color, make it hard to see. (Attached)
|Tags||No tags attached.|
Patrick, that is all in series about GUI I have manage to notice. Almost all are plain tweaks and noting is really important for proper functionality of CDC - only several cosmetic interventions...
Yes, this can be improved.
1. maybe resize to two third of the main form size.
2. draw black image on new chart before first calculation.
3. give more spacing and try to use theme color for the bar.
And about your last note, I really appreciate all the GUI review your are doing. This is the kind of problem I am too accustomed with the current behavior to notice them myself.
This is fixed by 3247 and 3248:
|16-02-16 00:30||Sasa||New Issue|
|16-02-16 00:30||Sasa||File Added: Cascade - one chart.jpeg|
|16-02-16 00:31||Sasa||File Added: Cascade - start second chart.jpeg|
|16-02-16 00:31||Sasa||File Added: Cascade - finished second chart.jpeg|
|16-02-16 00:32||Sasa||File Added: Cascade - recascade charts.jpeg|
|16-02-16 00:44||Sasa||Note Added: 0003311|
|16-02-16 00:46||Sasa||Note Edited: 0003311||View Revisions|
|16-02-16 09:06||Patrick Chevalley||Note Added: 0003315|
|16-02-16 09:06||Patrick Chevalley||Assigned To||=> Patrick Chevalley|
|16-02-16 09:06||Patrick Chevalley||Status||new => assigned|
|16-02-16 09:06||Patrick Chevalley||Target Version||=> 4.0|
|16-02-16 14:59||Patrick Chevalley||Note Added: 0003316|
|16-02-16 14:59||Patrick Chevalley||Status||assigned => resolved|
|16-02-16 14:59||Patrick Chevalley||Resolution||open => fixed|
|16-02-16 14:59||Patrick Chevalley||Fixed in Version||=> 3.11 SVN|
