View Issue Details

IDProjectCategoryView StatusLast Update
0001652SkyChart1-Softwarepublic17-02-22 19:41
ReporterPete Gladstein Assigned ToPatrick Chevalley
Status resolvedResolutionfixed
Product Version3.11 SVN
Target Version4.0Fixed in Version3.11 SVN
Summary0001652: Unable to Change Open Cluster Color

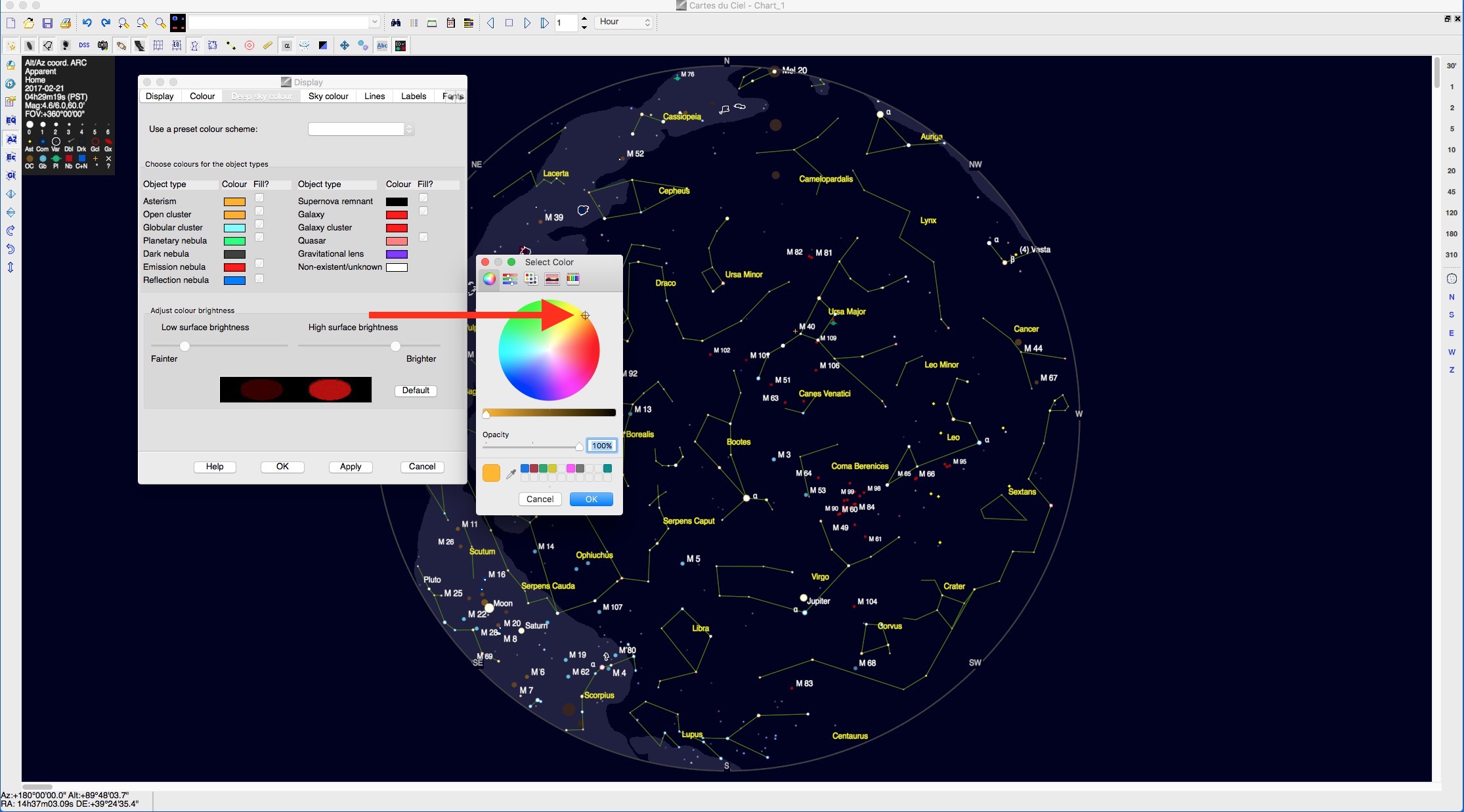

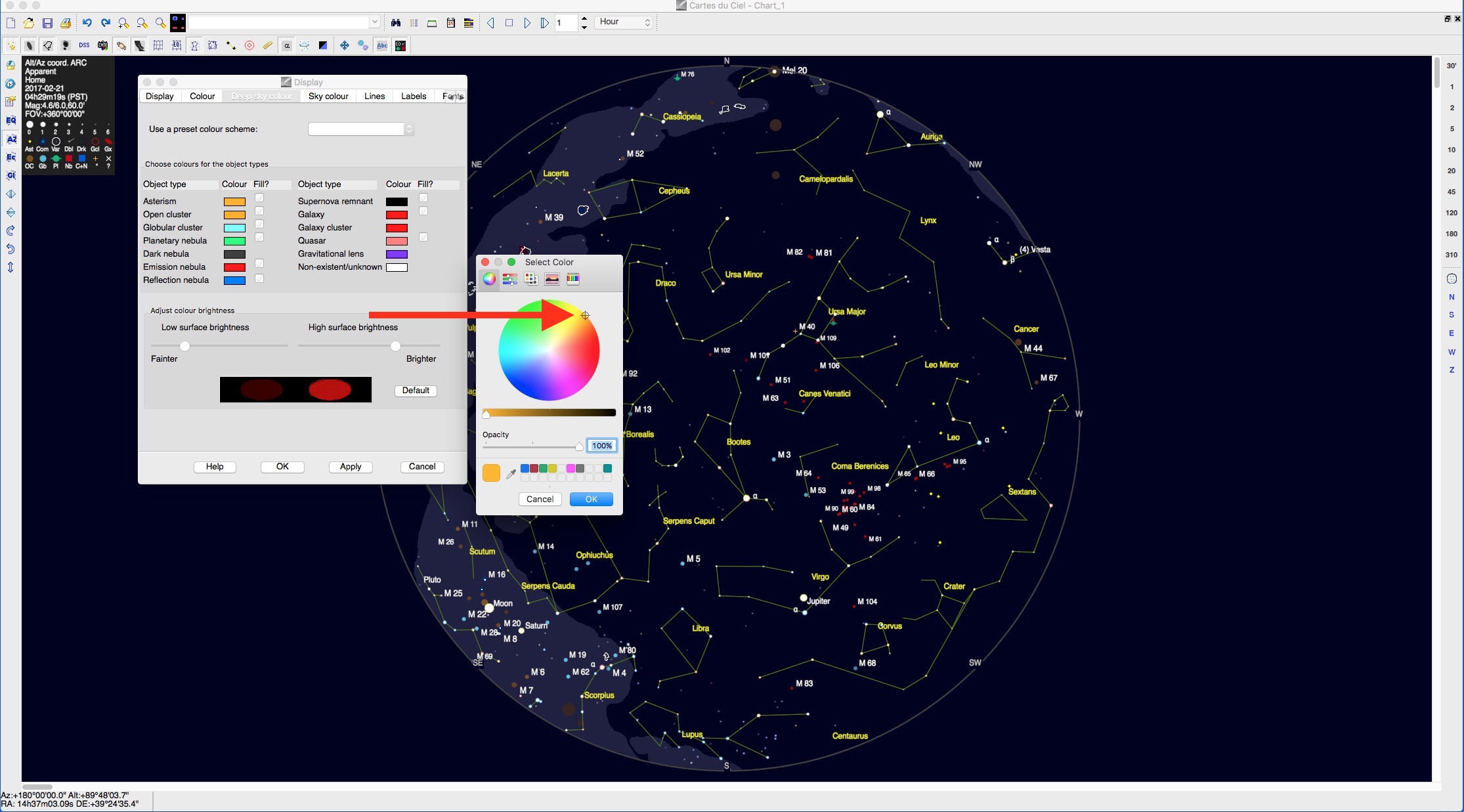

DescriptionUnable to move color selector within color wheel.

See attachment.
TagsNo tags attached.


Pete Gladstein

17-02-21 19:41



Patrick Chevalley

17-02-21 20:52

administrator   ~0003632

I cannot reproduce the problem with my Sierra virtual machine.
Can you give me more details:
- is the problem only with Open cluster, or also with other color box in this page?
- can you select another selection widget, like the crayon in the color dialog? do it work?
- do you see the mouse cursor arrow in front of the color wheel? do the reticle move if you click on the color wheel?
- can you move the two cursor for color density and opacity?

But what I remarked is the initial color in the color dialog is wrong, always orange instead of the object color. This is fixed in

Pete Gladstein

17-02-21 22:09

reporter   ~0003633

I can move the reticle for some Object Types. If I click on the color wheel then I can move the reticle in all Object Types. Is that the way it's supposed to work? Also, crayons work.

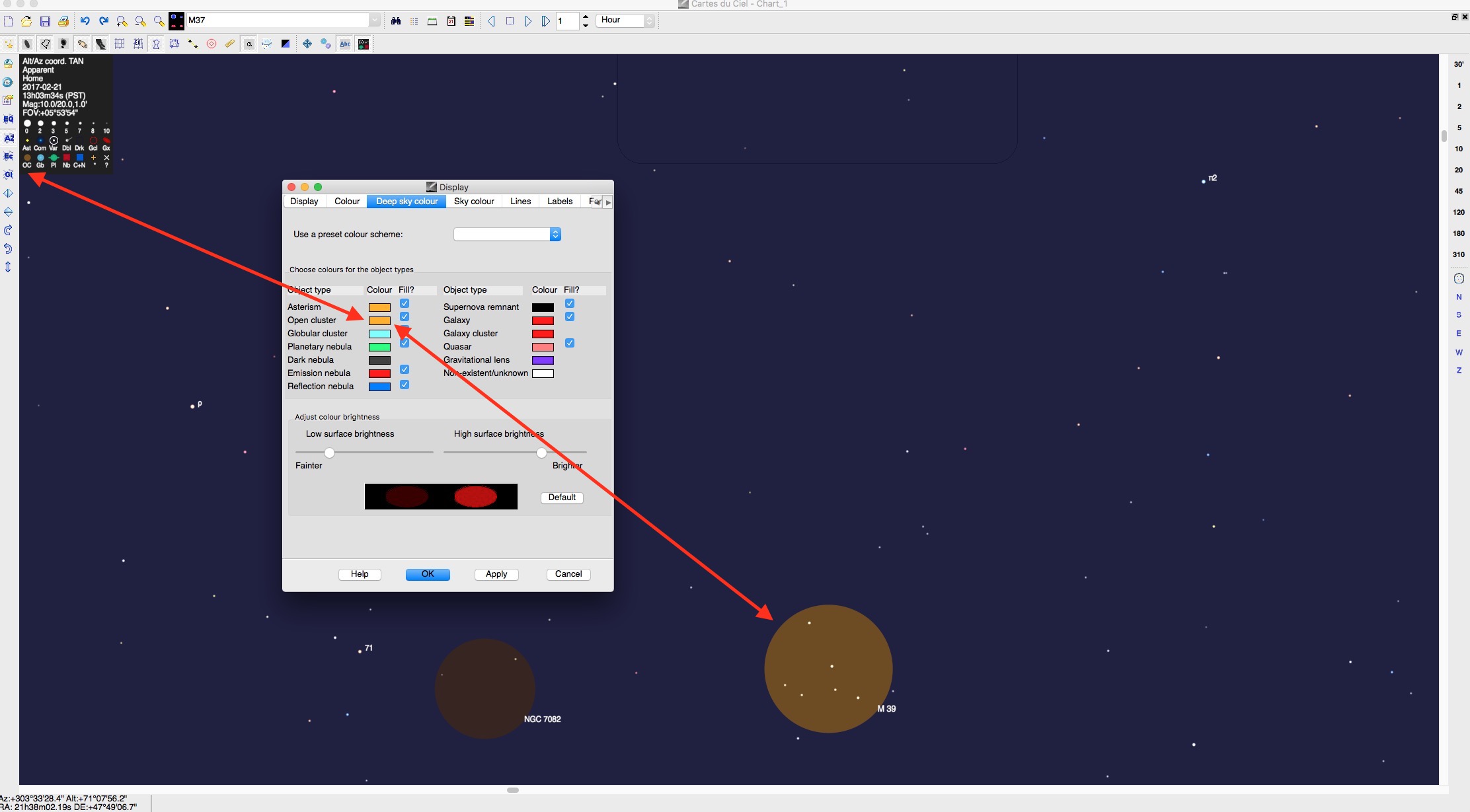

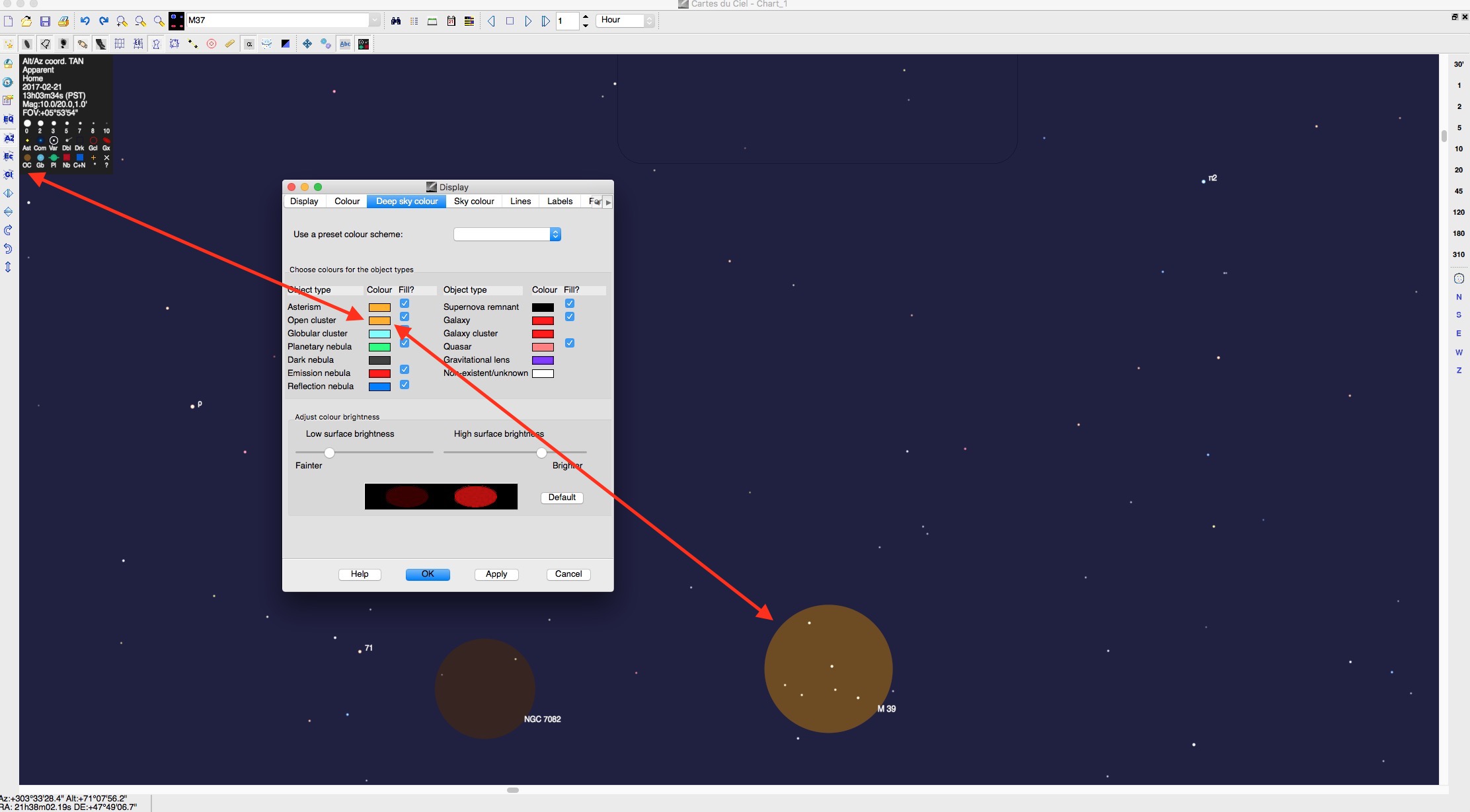

Related issue - The color of the Open Cluster in the Object Type pane is different than what is displayed on the chart and legend. See attachment.

I hope this helps. Thanks.

Patrick Chevalley

17-02-22 09:22

administrator   ~0003634

I not make this color wheel, this is a standard Apple dialog, so I don't know exactly how it is supposed to work.
But if I open the system desktop settings, choose a plain color background and click the button to customize the color, this color wheel work the same. I think you must click in to move the cursor to avoid some unwanted change.

The colors in your screenshot is not the same because they are modulated by the object brightness. This way it is easy to see that M39 is brighter than NGC7082.

You can adjust this effect with the two cursor in the second part of this screen. To get the pure color for every object you can put "High surface brightness" about 3/4 to the right, then "Low surface brightness" at the same position.

Do this solve the issue ?

Pete Gladstein

17-02-22 15:51

reporter   ~0003637

OK, I now understand. However, I have one question.

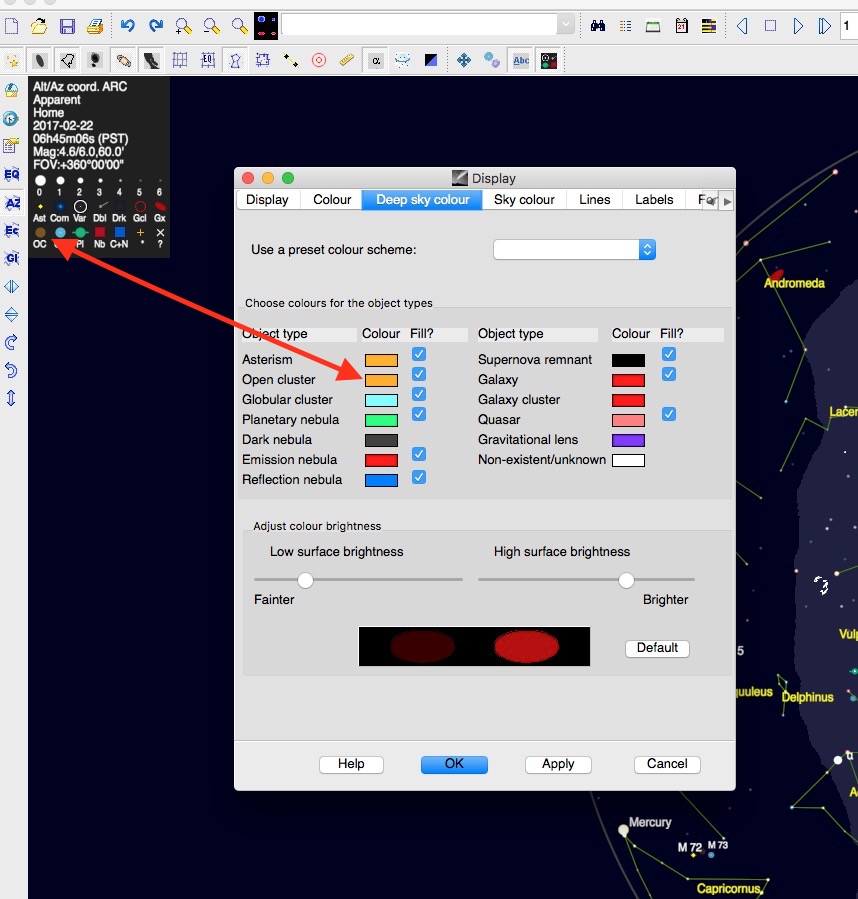

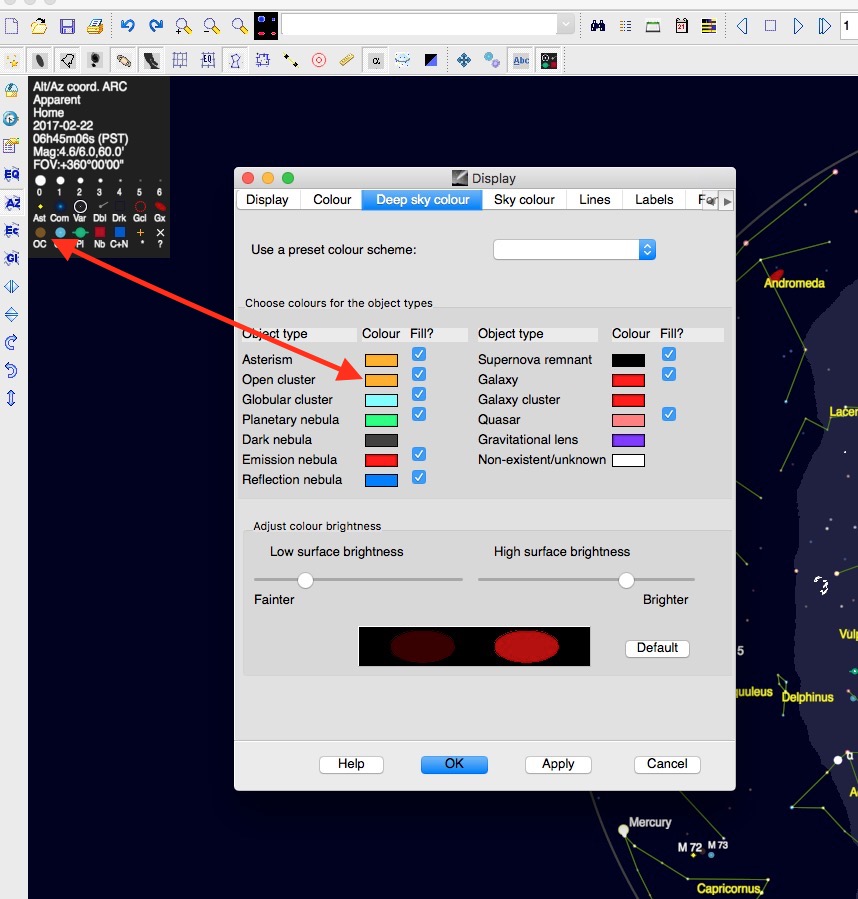

Why are these colors different - attachment screenshot-3.

Patrick Chevalley

17-02-22 19:41

administrator   ~0003640

This orange color become brown when darkened.
And I have a limitation to the brightness of the cluster that prevent it to show the right color.

I have removed this limitation in rev 3536 and it is much better.
