View Issue Details

IDProjectCategoryView StatusLast Update
0001744SkyChart1-Softwarepublic17-07-11 13:35
ReporterSasaAssigned ToPatrick Chevalley
PrioritynormalSeverityminorReproducibilityhave not tried
Status resolvedResolutionfixed
Product Version4.1 SVN
Target Version4.2Fixed in Version4.1 SVN
Summary0001744: Solar system information: Active button shape
DescriptionIf I remember correctly, the active button shape on navigation bar was the same as inactive, just red colored. Now it is red square.
TagsNo tags attached.

Activities

Sasa

17-07-09 20:52

reporter

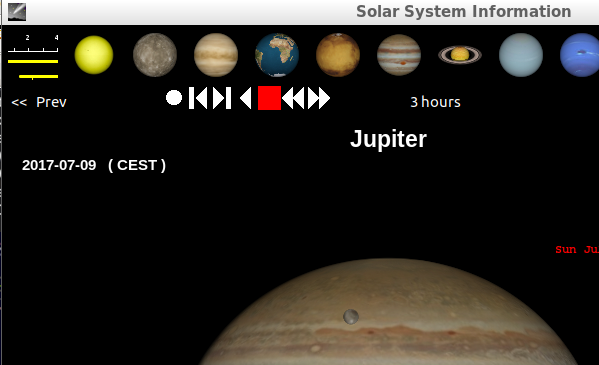

Active button shape.png (79,796 bytes)

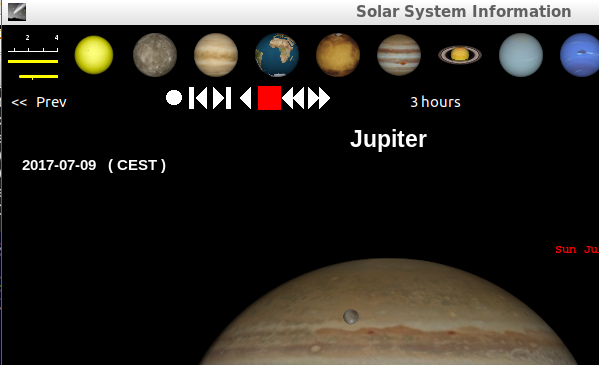

Active button shape.png (79,796 bytes)

Sasa

17-07-10 19:14

reporter   ~0003908

Last edited: 17-07-10 19:18

View 3 revisions

It seems there is something wrong with alpha channel reading Image1.Picture.Bitmap, after recent BGRA update.

Use this instead:

procedure Tf_planetinfo.NAV_Coloring(col: TColor; bmp:TBGRABitmap);
...
// if p^ <> black then
           if (p^.red <> 0) or
              (p^.green <> 0) or
              (p^.blue <> 0)
           then
            p^ := coln;


You may as well move image from Image1.Picture to a file and load it from, instead. Then you may remove Image1 completely from lfm.

Patrick Chevalley

17-07-11 09:59

administrator   ~0003910

This look related to ColorToBGRA transparency setting, maybe the default change with last version?

Just forcing transparency work:
https://sourceforge.net/p/skychart/code/3628/

Sasa

17-07-11 11:31

reporter   ~0003911

Last edited: 17-07-11 12:01

View 2 revisions

This will certainly change in next revision of BGRA, because it is fundamental bug anyway. With alpha channel, correct values are:

0 - Completely transparent
255- Completely opaque

That means converting plain 24-bit image to 32-bit should take value 255, not 0, as after this BGRA update is performed. AFAICS, this is the problem in BGRADefaultBitmap:

constructor Create(ABitmap: TBitmap; AUseTransparent: boolean = true); override;

Then is perhaps better the suggested way, since speed is not critical as temp images are created with form creation and they are quite small.

Patrick Chevalley

17-07-11 13:35

administrator   ~0003912

OK, probably better this way as we not need transparency.

I also remove the useless outer loop and commented code, same for NAV_Disable()

https://sourceforge.net/p/skychart/code/3629/
