0002178: Mosaic building close to celestial poles.

ID	Project	Category	View Status	Date Submitted	Last Update

0002178	SkyChart	1-Software	public	19-08-31 10:30	19-08-31 16:37

Reporter	han	Assigned To	Patrick Chevalley
Priority	normal	Severity	feature	Reproducibility	have not tried
Status	resolved	Resolution	fixed
Product Version	4.1 SVN
Target Version	4.2	Fixed in Version	4.1 SVN

Summary	0002178: Mosaic building close to celestial poles.
Description	The unreleased version of mosaic design can be improved. The tiles near the celestial poles are too close to each other, not compensating for the fact that the RA lines near the poles are closer to each other. The angular distance between the tiles should be equal (delta RA/cos(DEC) )
Tags	No tags attached.

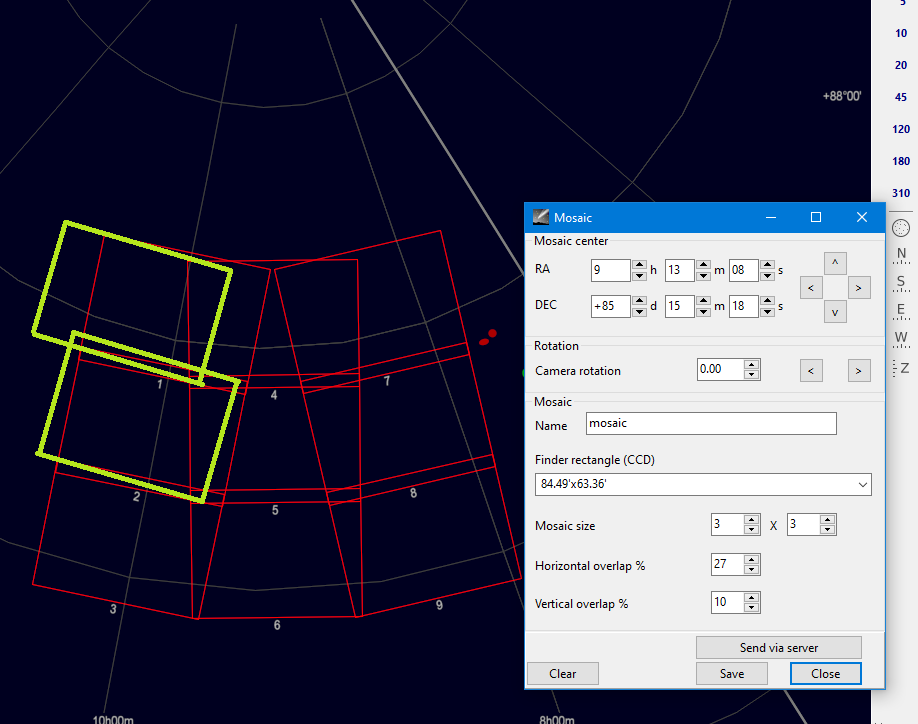

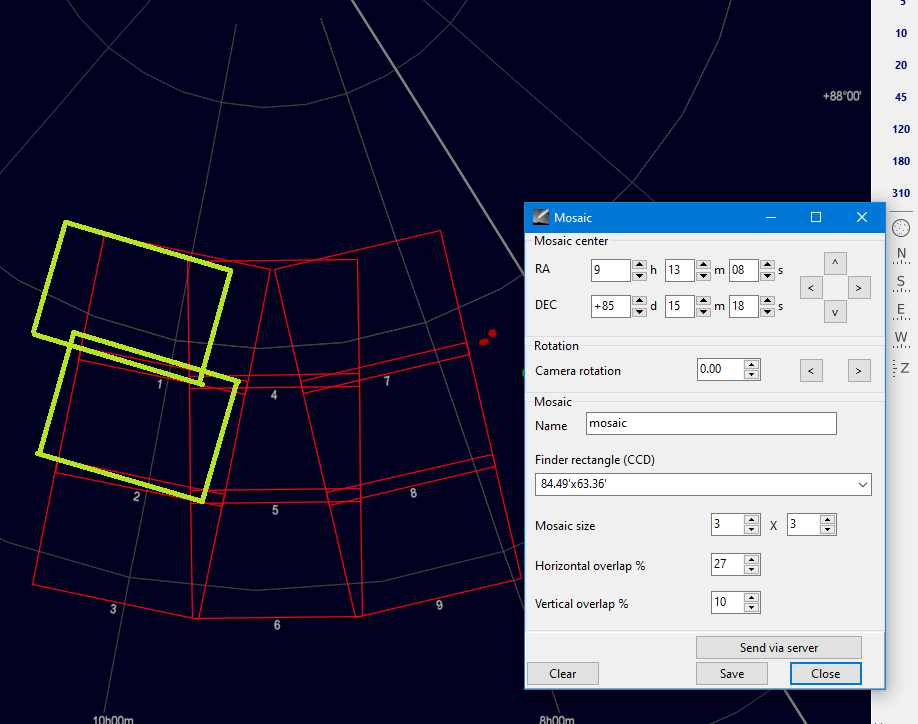

han 19-08-31 10:30 reporter	ccdciel2.png (103,248 bytes) ccdciel2.png (103,248 bytes)

Patrick Chevalley 19-08-31 11:35 administrator ~0005896	Yes, I compensate for cos(DEC) using DEC for the central frame. This is insufficient near the pole, I will change to use cos(DEC) for each band.

Patrick Chevalley 19-08-31 15:39 administrator ~0005897	This is fixed by: https://github.com/pchev/skychart/commit/a37fdb8730dc0ecc5d180194cbe889975d5ed7fd

Patrick Chevalley 19-08-31 16:37 administrator ~0005898	I make another change to use the specified overlap as the minimal overlap, not on the frame center. This way you not have to increase the overlap value near the pole. https://github.com/pchev/skychart/commit/7761bd01aeee8c3fdd7ec71bd4bebd6fba7f3032

Date Modified	Username	Field	Change
19-08-31 10:30	han	New Issue
19-08-31 10:30	han	File Added: ccdciel2.png
19-08-31 11:35	Patrick Chevalley	Assigned To	=> Patrick Chevalley
19-08-31 11:35	Patrick Chevalley	Status	new => assigned
19-08-31 11:35	Patrick Chevalley	Target Version	=> 4.2
19-08-31 11:35	Patrick Chevalley	Note Added: 0005896
19-08-31 15:39	Patrick Chevalley	Status	assigned => resolved
19-08-31 15:39	Patrick Chevalley	Resolution	open => fixed
19-08-31 15:39	Patrick Chevalley	Fixed in Version	=> 4.1 SVN
19-08-31 15:39	Patrick Chevalley	Note Added: 0005897
19-08-31 16:37	Patrick Chevalley	Note Added: 0005898
