View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
0002336 | CCdciel | General | public | 20-05-28 18:50 | 20-05-28 20:33 |
Reporter | Kristopher Setnes | Assigned To | Patrick Chevalley | ||
Priority | normal | Severity | minor | Reproducibility | have not tried |
Status | resolved | Resolution | fixed | ||
OS | Raspbian | OS Version | Buster | ||
Product Version | 0.9 | ||||
Target Version | 1.0 | ||||
Summary | 0002336: Dither "Settle tolerance" configuration GUI does not match XML config | ||||

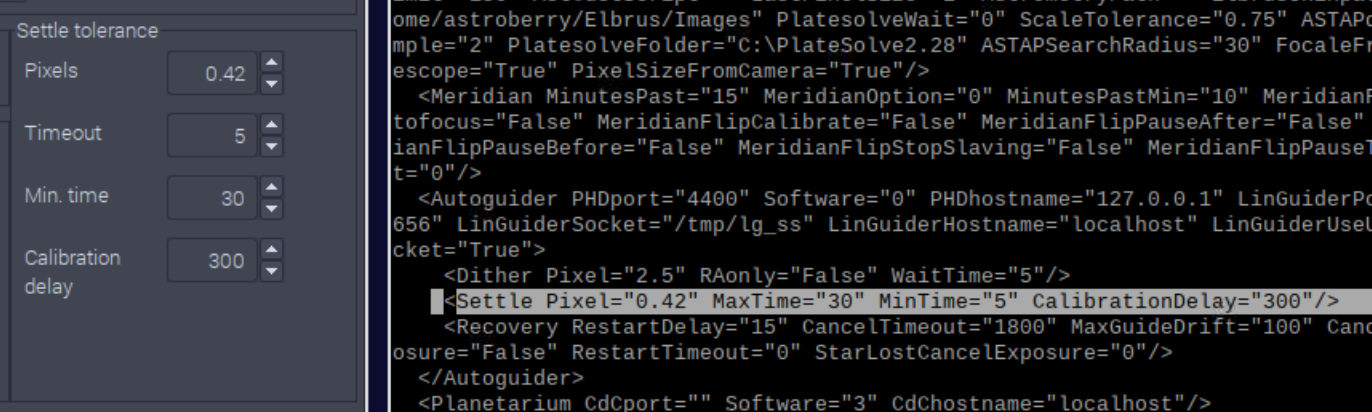

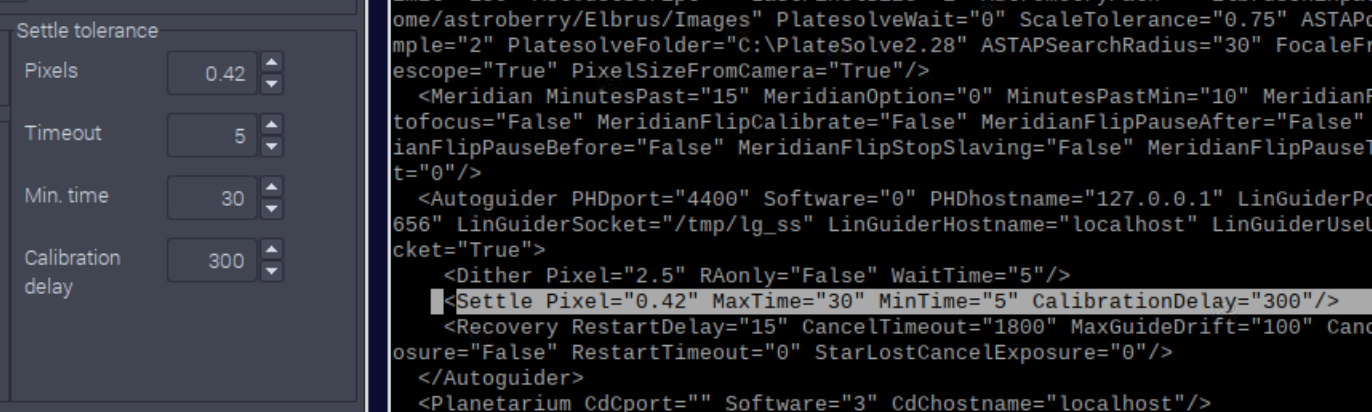

Description | I was having a hard time understanding the settle tolerance settings. After digging into this, I think the user interface has incorrect labels on the fields. I am using PHD2. In the user interface, I have Settle tolerance settings as follows. Pixels: 0.42 Timeout: 5 Min. Time: 30 Calibration delay: 300 In the XML configuration file, I have... <Settle Pixel="0.42" MaxTime="30" MinTime="5" CalibrationDelay="300"/> It appears to me that "Timeout" in the user interface is actually the MinTime to wait in the XML, and "Min. Time" in the user interface is actually the MaxTime to wait in the XML. I think the labels are wrong in the user interface. | ||||
Tags | Dither, PHD2, Settle tolerance, UI | ||||
|
|
|
Sorry for the trouble and thank you to report the issue! Yes, the two labels where inverted in the preferences, this is fixed by: https://github.com/pchev/ccdciel/commit/6248931c3e2d2b145ba0282548fc51fd1fc5a25d#diff-82203b21d970ca49f27a975b28d679a3L3933 |
Date Modified | Username | Field | Change |
---|---|---|---|
20-05-28 18:50 | Kristopher Setnes | New Issue | |
20-05-28 18:50 | Kristopher Setnes | Tag Attached: Dither | |
20-05-28 18:50 | Kristopher Setnes | Tag Attached: PHD2 | |
20-05-28 18:50 | Kristopher Setnes | Tag Attached: Settle tolerance | |
20-05-28 18:50 | Kristopher Setnes | Tag Attached: UI | |
20-05-28 18:50 | Kristopher Setnes | File Added: image.png | |
20-05-28 20:33 | Patrick Chevalley | Assigned To | => Patrick Chevalley |
20-05-28 20:33 | Patrick Chevalley | Status | new => resolved |
20-05-28 20:33 | Patrick Chevalley | Resolution | open => fixed |
20-05-28 20:33 | Patrick Chevalley | Target Version | => 1.0 |
20-05-28 20:33 | Patrick Chevalley | Description Updated | |
20-05-28 20:33 | Patrick Chevalley | Note Added: 0006614 |
