Summary0002357: Eyepiece Finder Circle Offset

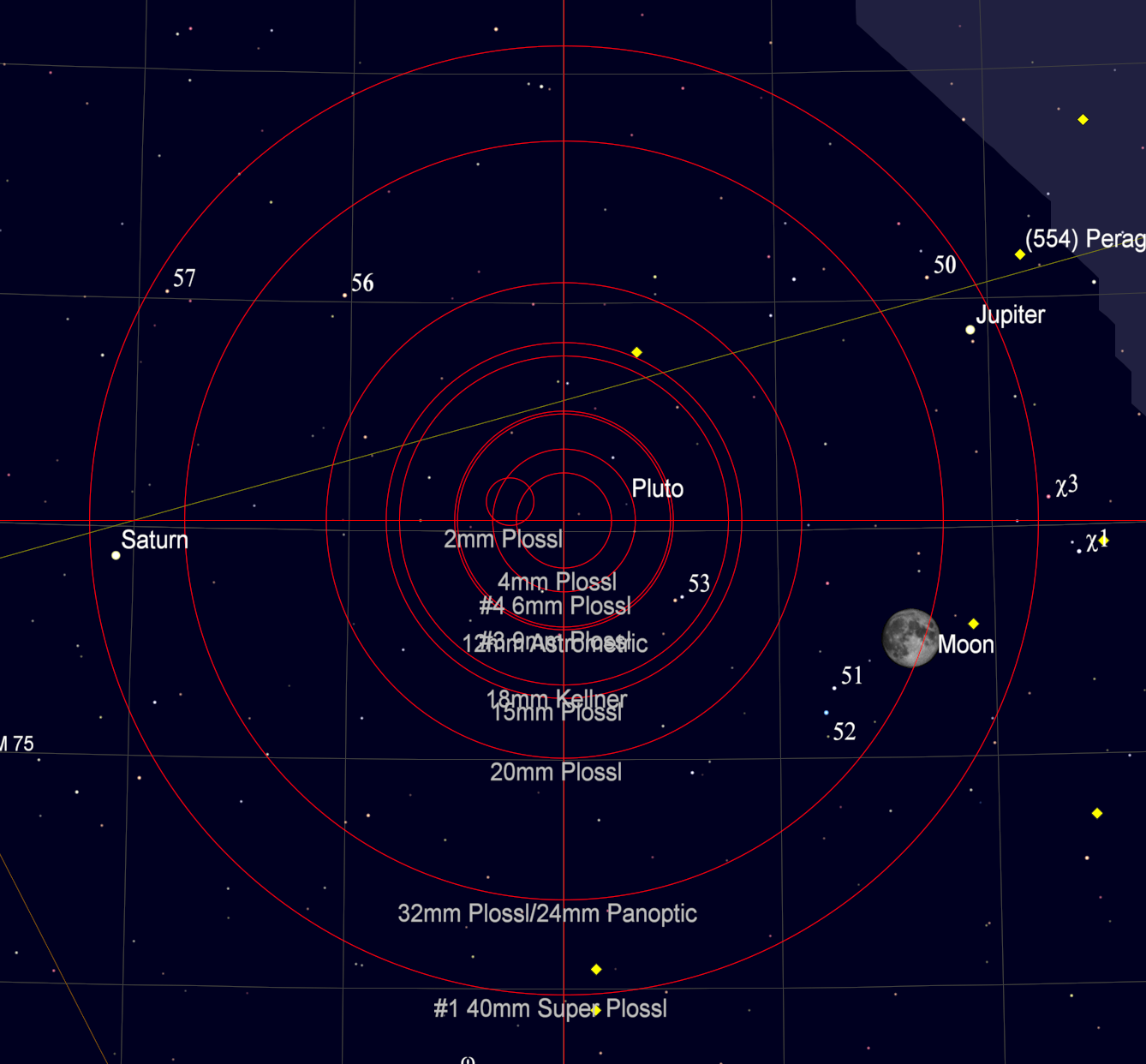

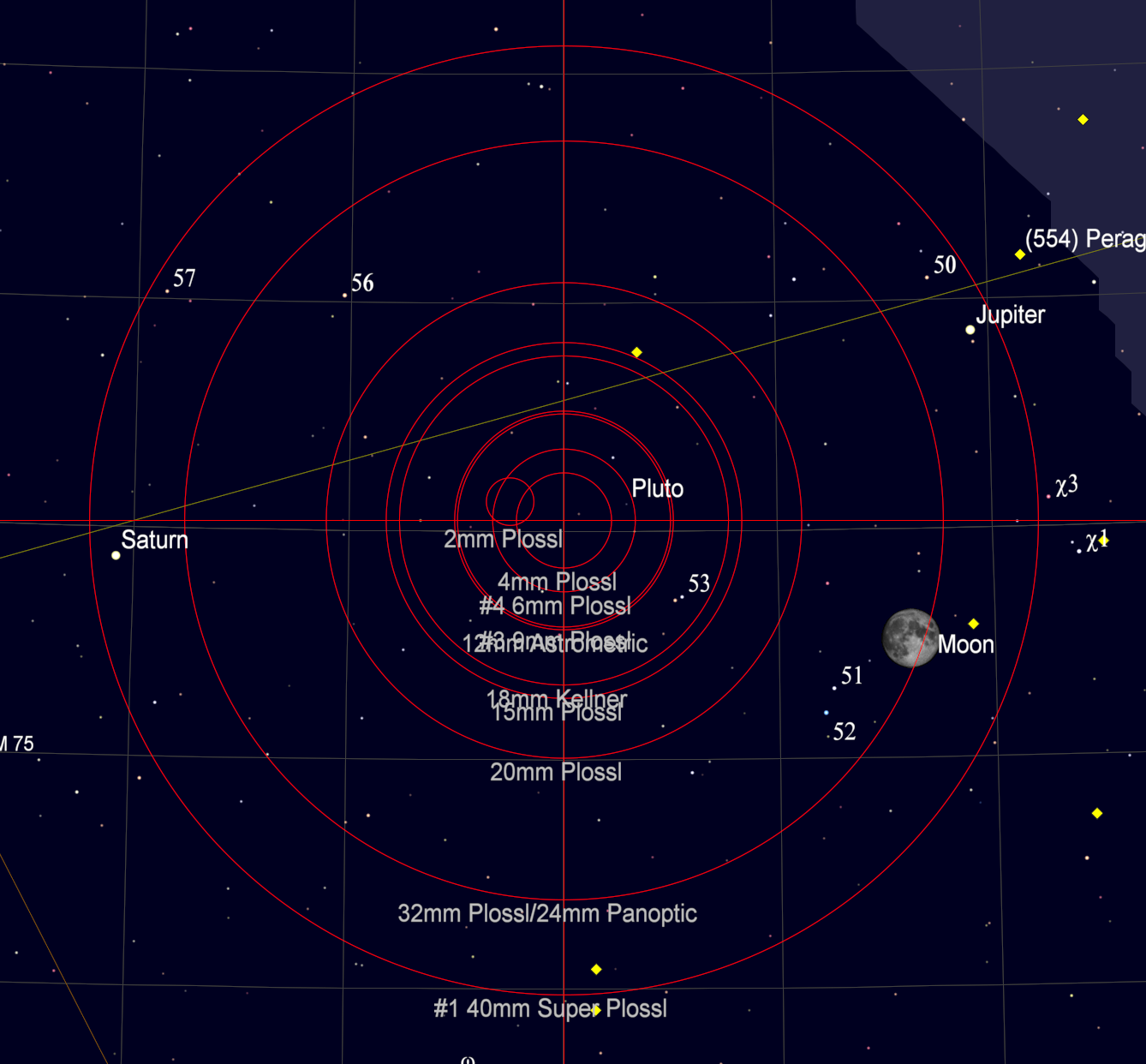

Descriptionno matter what specifications I enter in slot #4, the eyepiece circle is drawn offset to the upper left of the center crosshairs and is not concentric with other eyepieces
all of the other slots work as expected
TagsNo tags attached.

Activities

Charlie

20-07-25 02:38

reporter


Patrick Chevalley

20-07-25 09:49

administrator   ~0006693

In the default setting the circle 4 is an example of an off-axis guider.

Do it work if you set the Rotation and Offset column to 0 and click the Apply button?

Charlie

20-07-25 14:10

reporter   ~0006697

It does work properly if I zero out colums 2 and 3 on row 4
Don't know why I didn't have to do that for the other row that had a description indicating it was a tracker or something, but all is OK now
Now that I am online I have downloaded the documentation for some light cloudy night reading
Thanks

Patrick Chevalley

20-08-15 17:43

administrator   ~0006724

Yes, only row 4 is an example with an offset.

I will keep it this way because it is important to show this capability in the default setting.
