| Summary | 0002358: Printout - with lines | ||||

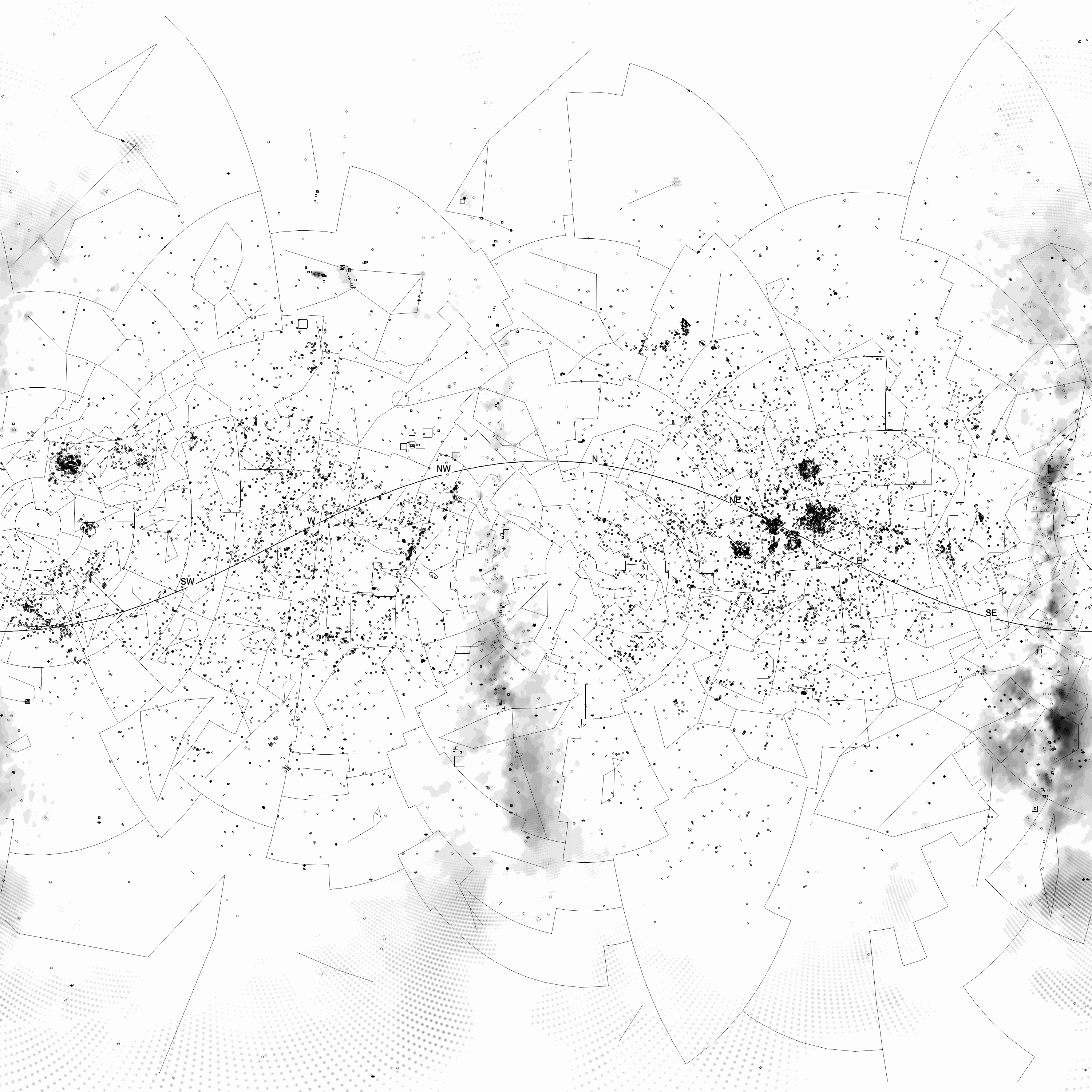

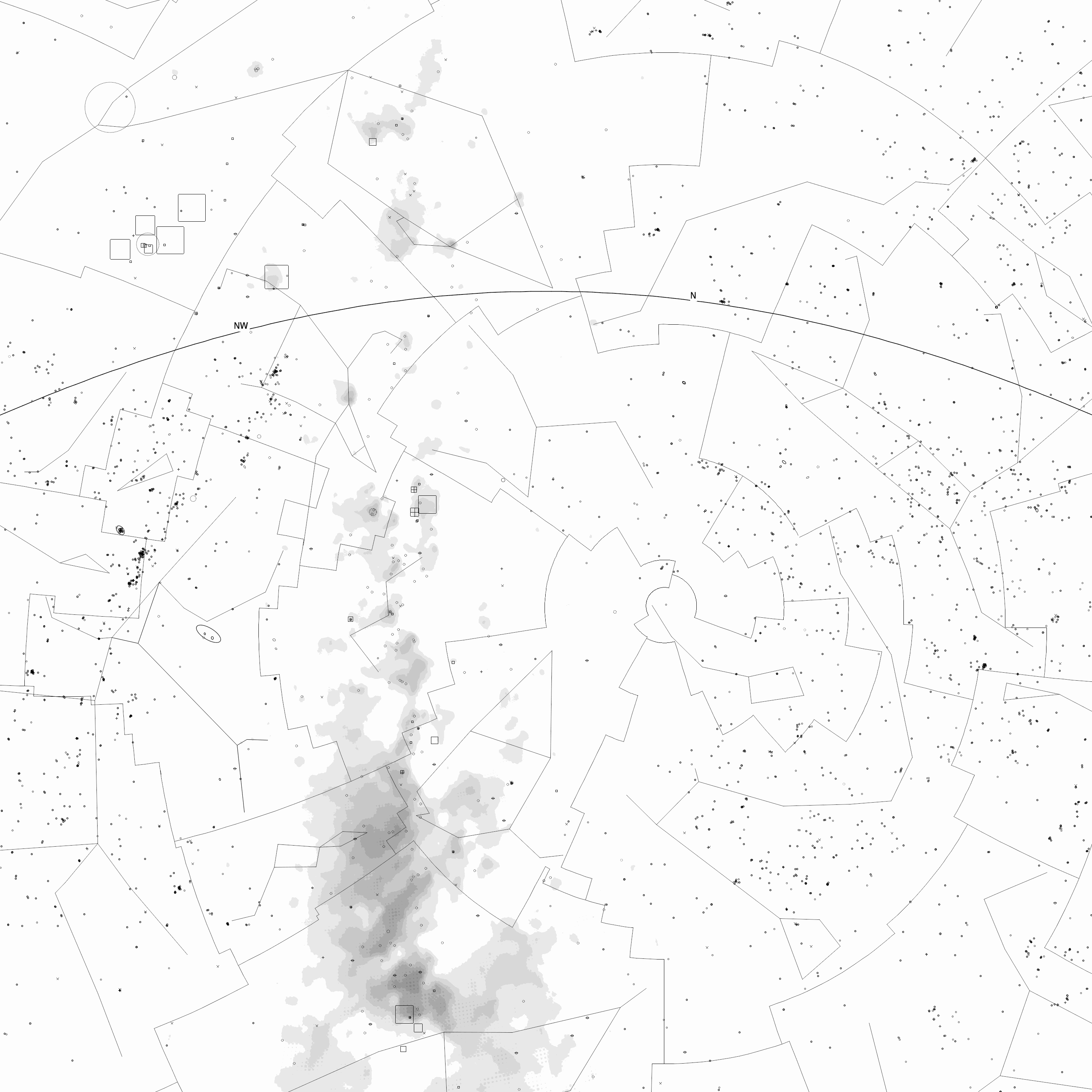

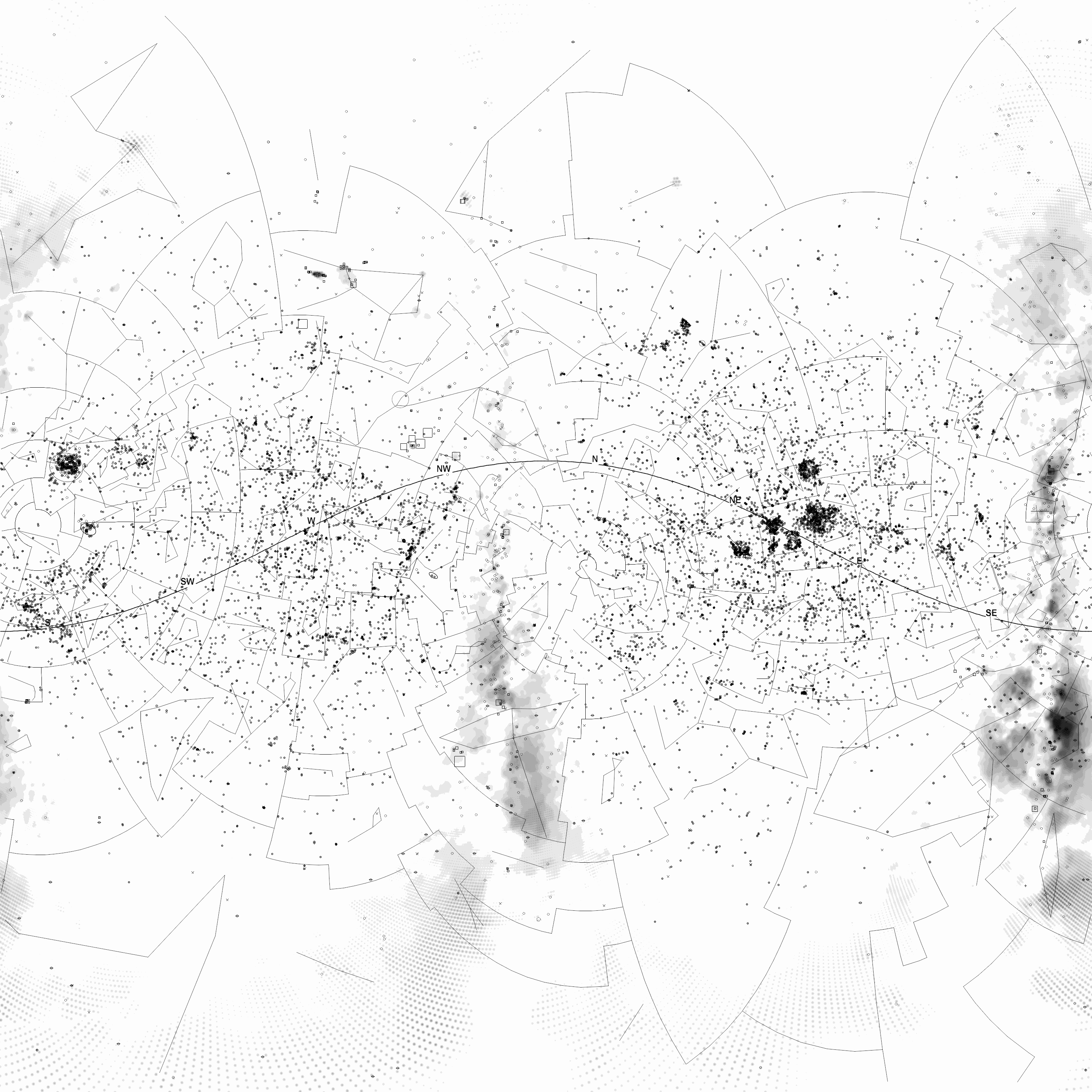

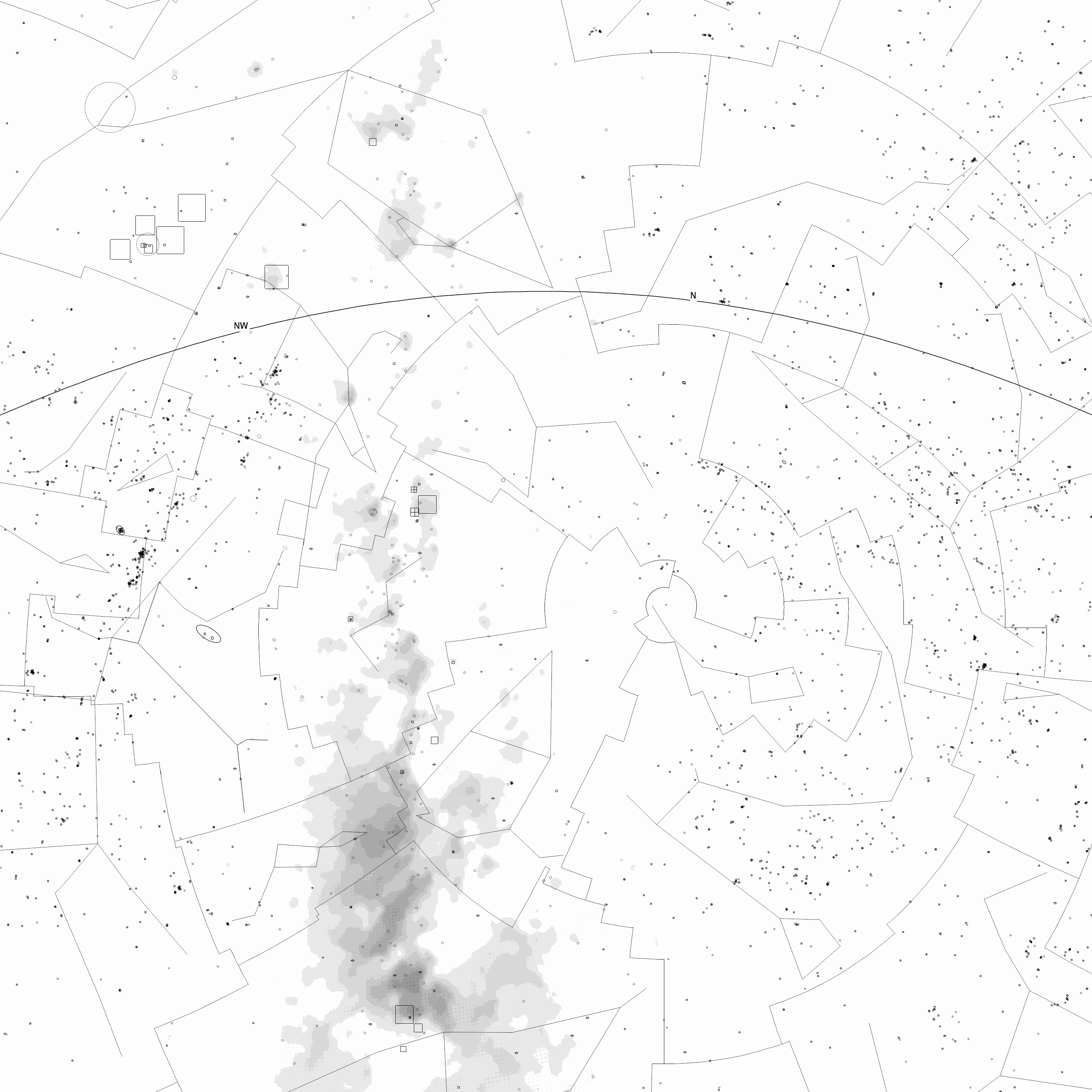

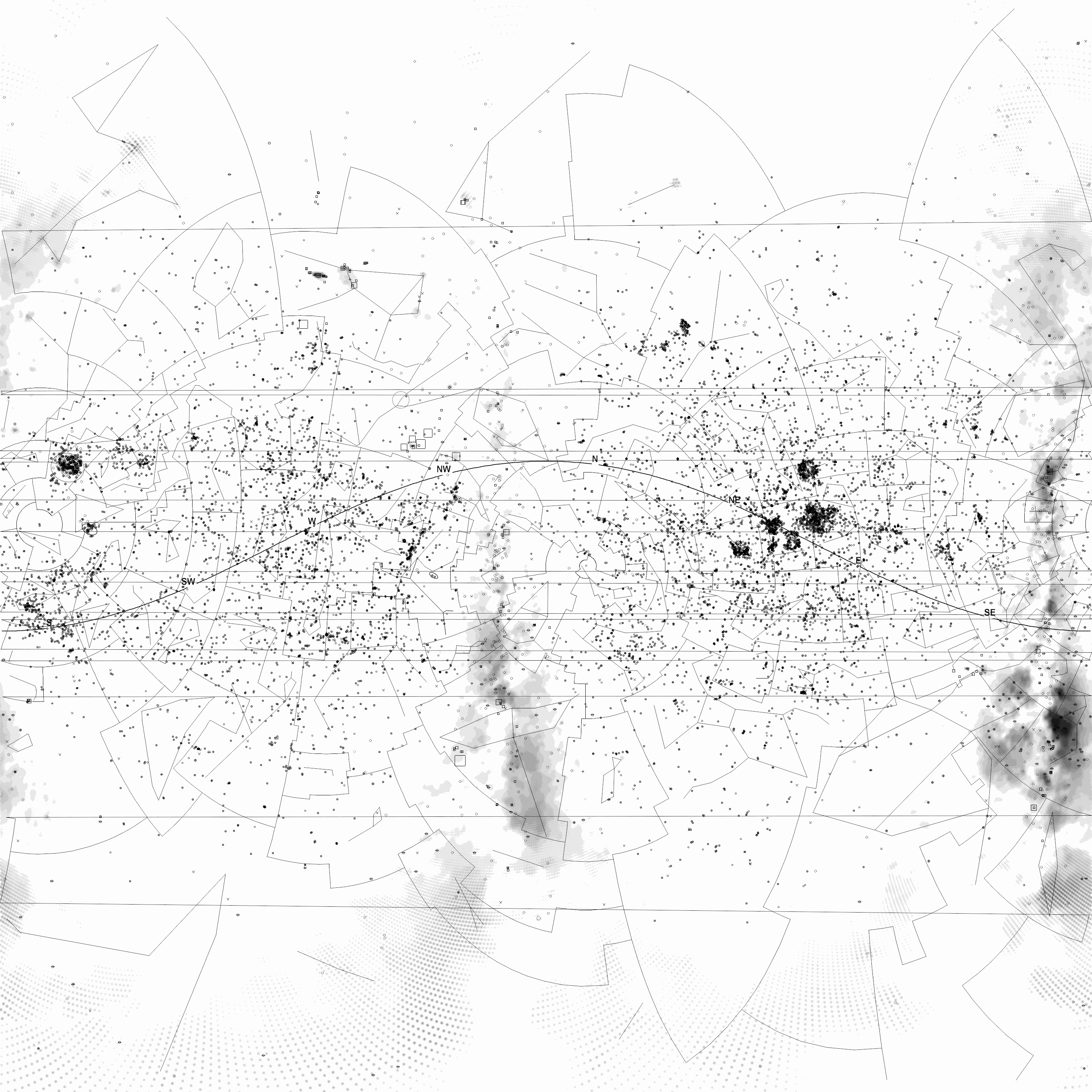

| Description | I am using the print to bitmap subroutine but all printouts at 360deg FOV come out with lines crossing the page - which are not displayed on the screen. They do not show up until I reach the (more than) 359deg FOV. Until 359.00deg the printout is fine (no lines). they show up on all options - bitmap, PS or printer. | ||||
| Steps To Reproduce | Choose FOV bigger than 359 deg, print | ||||
| Tags | No tags attached. | ||||
|
|
Chart_1.cdc3 (13,350 bytes)
[main] WinTop=-8 WinLeft=-8 WinWidth=1360 WinHeight=715 FieldNum0=0.5 FieldNum1=1 FieldNum2=3 FieldNum3=5 FieldNum4=10 FieldNum5=20 FieldNum6=45 FieldNum7=120 FieldNum8=180 FieldNum9=310 FieldNum10=360 [filter] StarFilter=0 AutoStarFilter=0 AutoStarFilterMag=7.5 NebFilter=0 BigNebFilter=1 BigNebLimit=211 NoFilterMessier=1 NoFilterMagBright=1 StarMagFilter1=99 NebMagFilter1=99 NebSizeFilter1=0 StarMagFilter2=99 NebMagFilter2=99 NebSizeFilter2=0 StarMagFilter3=12 NebMagFilter3=99 NebSizeFilter3=0.444444444444445 StarMagFilter4=11 NebMagFilter4=20 NebSizeFilter4=1 StarMagFilter5=9 NebMagFilter5=15 NebSizeFilter5=2 StarMagFilter6=8 NebMagFilter6=13 NebSizeFilter6=3 StarMagFilter7=7 NebMagFilter7=10.5 NebSizeFilter7=6 StarMagFilter8=6 NebMagFilter8=9 NebSizeFilter8=20 StarMagFilter9=5 NebMagFilter9=6 NebSizeFilter9=30 StarMagFilter10=4 NebMagFilter10=6 NebSizeFilter10=100 [catalog] GCatNum=0 UserObjectsNum=1 UObjActive0=0 UObjType0=14 UObjName0=NGP UObjRA0=3.3660129065754 UObjDEC0=0.473478737245195 UObjMag0=0 UObjSize0=30 UObjColor0=0 UObjComment0=Example of user defined object: North galactic pole StarmagMax=4 NebmagMax=6 NebSizeMin=100 UseUSNOBrightStars=0 UseGSVSIr=0 Name290=tyc LimitGaiaCount=1 starcatdef1=1 starcaton1=1 starcatfield11=0 starcatfield21=10 starcatdef2=0 starcaton2=0 starcatfield12=6 starcatfield22=7 starcatdef3=0 starcaton3=0 starcatfield13=0 starcatfield23=0 starcatdef4=0 starcaton4=0 starcatfield14=0 starcatfield24=5 starcatdef5=0 starcaton5=0 starcatfield15=0 starcatfield25=0 starcatdef6=0 starcaton6=0 starcatfield16=0 starcatfield26=3 starcatdef7=0 starcaton7=0 starcatfield17=0 starcatfield27=3 starcatdef8=0 starcaton8=0 starcatfield18=0 starcatfield28=0 starcatdef9=0 starcaton9=0 starcatfield19=0 starcatfield29=1 starcatdef10=0 starcaton10=0 starcatfield110=0 starcatfield210=0 starcatdef11=0 starcaton11=0 starcatfield111=0 starcatfield211=10 starcatdef12=0 starcaton12=0 starcatfield112=0 starcatfield212=5 starcatdef13=0 starcaton13=0 starcatfield113=0 starcatfield213=3 starcatdef14=0 starcaton14=0 starcatfield114=0 starcatfield214=0 starcatdef15=0 starcaton15=0 starcatfield115=0 starcatfield215=10 starcatdef16=0 starcaton16=0 starcatfield116=0 starcatfield216=10 starcatdef17=0 starcaton17=0 starcatfield117=0 starcatfield217=1 starcatdef18=0 starcaton18=0 starcatfield118=0 starcatfield218=5 starcatdef19=0 starcaton19=0 starcatfield119=0 starcatfield219=6 varstarcatdef1=0 varstarcaton1=0 varstarcatfield11=0 varstarcatfield21=10 varstarcatdef2=0 varstarcaton2=0 varstarcatfield12=0 varstarcatfield22=0 dblstarcatdef1=0 dblstarcaton1=0 dblstarcatfield11=0 dblstarcatfield21=10 dblstarcatdef2=0 dblstarcaton2=0 dblstarcatfield12=0 dblstarcatfield22=0 nebcatdef1=0 nebcaton1=0 nebcatfield11=0 nebcatfield21=10 nebcatdef2=1 nebcaton2=1 nebcatfield12=0 nebcatfield22=10 nebcatdef3=0 nebcaton3=0 nebcatfield13=0 nebcatfield23=10 nebcatdef4=0 nebcaton4=0 nebcatfield14=0 nebcatfield24=5 nebcatdef5=0 nebcaton5=0 nebcatfield15=0 nebcatfield25=5 nebcatdef6=0 nebcaton6=0 nebcatfield16=0 nebcatfield26=10 nebcatdef7=0 nebcaton7=0 nebcatfield17=0 nebcatfield27=10 nebcatdef8=0 nebcaton8=0 nebcatfield18=0 nebcatfield28=5 nebcatdef9=0 nebcaton9=0 nebcatfield19=0 nebcatfield29=0 nebcatdef10=0 nebcaton10=0 nebcatfield110=0 nebcatfield210=10 nebcatdef11=0 nebcaton11=0 nebcatfield111=0 nebcatfield211=10 nebcatdef12=0 nebcaton12=0 nebcatfield112=0 nebcatfield212=10 nebcatdef13=0 nebcaton13=0 nebcatfield113=0 nebcatfield213=10 [display] AntiAlias=1 starplot=0 nebplot=0 plaplot=2 TransparentPlanet=0 Nebgray=0 NebBright=1 StarDyn=75 StarSize=13 contrast=500 saturation=0 redmove=1 partsize=1 magsize=4 AutoSkycolor=0 DSOColorFillAst=1 DSOColorFillOCl=1 DSOColorFillGCl=1 DSOColorFillPNe=1 DSOColorFillDN=1 DSOColorFillEN=1 DSOColorFillRN=1 DSOColorFillSN=1 DSOColorFillGxy=1 DSOColorFillGxyCl=1 DSOColorFillQ=1 DSOColorFillGL=1 DSOColorFillNE=1 color0=16777215 color1=0 color2=0 color3=0 color4=0 color5=0 color6=0 color7=0 color8=0 color9=0 color10=0 color11=0 color12=0 color13=0 color14=0 color15=0 color16=0 color17=0 color18=0 color19=16777215 color20=0 color21=0 color22=16777215 color23=0 color24=0 color25=0 color26=0 color27=0 color28=0 color29=0 color30=0 color31=0 color32=0 color33=0 color34=0 color35=0 skycolor0=2097152 skycolor1=15744060 skycolor2=13120050 skycolor3=10496040 skycolor4=7864320 skycolor5=6553616 skycolor6=3932176 skycolor7=0 bgColor=16777215 [font] FontName1=Arial FontSize1=10 FontBold1=1 FontItalic1=0 FontName2=Bookman Old Style FontSize2=8 FontBold2=1 FontItalic2=0 FontName3=Bookman Old Style FontSize3=8 FontBold3=1 FontItalic3=0 FontName4=Bookman Old Style FontSize4=8 FontBold4=1 FontItalic4=0 FontName5=Courier FontSize5=10 FontBold5=0 FontItalic5=0 FontName6=Bookman Old Style FontSize6=8 FontBold6=1 FontItalic6=0 FontName7=Symbol FontSize7=10 FontBold7=0 FontItalic7=0 LabelColor1=0 LabelSize1=6 LabelColor2=16777215 LabelSize2=10 LabelColor3=16777215 LabelSize3=10 LabelColor4=0 LabelSize4=16 LabelColor5=16777215 LabelSize5=10 LabelColor6=0 LabelSize6=12 LabelColor7=0 LabelSize7=6 LabelColor8=16777215 LabelSize8=10 LabelColor9=65280 LabelSize9=11 LabelColor10=16777215 LabelSize10=10 LabelColor11=16777215 LabelSize11=10 [grid] ShowCRose=0 SimplePointer=0 CRoseSz=80 HourGridSpacing0=0.00555555555555556 HourGridSpacing1=0.00833333333333333 HourGridSpacing2=0.0166666666666667 HourGridSpacing3=0.0333333333333333 HourGridSpacing4=0.0833333333333333 HourGridSpacing5=0.25 HourGridSpacing6=0.5 HourGridSpacing7=1 HourGridSpacing8=1 HourGridSpacing9=2 HourGridSpacing10=2 DegreeGridSpacing0=0.0833333333333333 DegreeGridSpacing1=0.166666666666667 DegreeGridSpacing2=0.333333333333333 DegreeGridSpacing3=0.5 DegreeGridSpacing4=1 DegreeGridSpacing5=2 DegreeGridSpacing6=5 DegreeGridSpacing7=10 DegreeGridSpacing8=15 DegreeGridSpacing9=20 DegreeGridSpacing10=20 [Calendar] CalGraphHeight=100 [Finder] ShowCircle=0 ShowCrosshair=1 EyepieceMask=0 CircleLabel=1 RectangleLabel=1 marknumlabel=1 ncircle=10 Circle1=60 Circle2=120 Circle3=30 Circle4=18 Circle5=26.5 Circle6=17.5 Circle7=0 Circle8=0 Circle9=54 Circle10=0 CircleR1=0 CircleR2=0 CircleR3=0 CircleR4=45 CircleR5=0 CircleR6=0 CircleR7=0 CircleR8=0 CircleR9=0 CircleR10=0 CircleOffset1=0 CircleOffset2=0 CircleOffset3=0 CircleOffset4=30 CircleOffset5=0 CircleOffset6=0 CircleOffset7=0 CircleOffset8=0 CircleOffset9=0 CircleOffset10=0 ShowCircle1=1 ShowCircle2=1 ShowCircle3=0 ShowCircle4=0 ShowCircle5=0 ShowCircle6=0 ShowCircle7=0 ShowCircle8=0 ShowCircle9=0 ShowCircle10=0 CircleLbl1=Telrad CircleLbl2= CircleLbl3= CircleLbl4=Off-Axis guider CircleLbl5=ST7 autoguider area CircleLbl6=ST7 autoguider area CircleLbl7= CircleLbl8= CircleLbl9= CircleLbl10= nrectangle=10 RectangleW1=11.8000001907349 RectangleW2=4.5 RectangleW3=0 RectangleW4=0 RectangleW5=0 RectangleW6=0 RectangleW7=0 RectangleW8=0 RectangleW9=0 RectangleW10=0 RectangleH1=7.90000009536743 RectangleH2=4.5 RectangleH3=0 RectangleH4=0 RectangleH5=0 RectangleH6=0 RectangleH7=0 RectangleH8=0 RectangleH9=0 RectangleH10=0 RectangleR1=0 RectangleR2=0 RectangleR3=0 RectangleR4=0 RectangleR5=0 RectangleR6=0 RectangleR7=0 RectangleR8=0 RectangleR9=0 RectangleR10=0 RectangleOffset1=0 RectangleOffset2=11 RectangleOffset3=0 RectangleOffset4=0 RectangleOffset5=0 RectangleOffset6=0 RectangleOffset7=0 RectangleOffset8=0 RectangleOffset9=0 RectangleOffset10=0 ShowRectangle1=0 ShowRectangle2=0 ShowRectangle3=0 ShowRectangle4=0 ShowRectangle5=0 ShowRectangle6=0 ShowRectangle7=0 ShowRectangle8=0 ShowRectangle9=0 ShowRectangle10=0 RectangleLbl1=KAF400 prime focus RectangleLbl2=ST7 autoguider RectangleLbl3= RectangleLbl4= RectangleLbl5= RectangleLbl6= RectangleLbl7= RectangleLbl8= RectangleLbl9= RectangleLbl10=Reserved for CCDciel use [chart] EquinoxType=2 EquinoxChart=Date DefaultJDchart=2451545 ProjOptionsEquinoxType0=2 ProjOptionsApparentPos0=1 ProjOptionsPMon0=1 ProjOptionsYPmon0=0 ProjOptionsEquinoxChart0=Date ProjOptionsDefaultJDChart0=2451545 ProjOptionsCoordExpertMode0=0 ProjOptionsCoordType0=0 ProjOptionsEquinoxType1=2 ProjOptionsApparentPos1=1 ProjOptionsPMon1=1 ProjOptionsYPmon1=0 ProjOptionsEquinoxChart1=Date ProjOptionsDefaultJDChart1=2451545 ProjOptionsCoordExpertMode1=0 ProjOptionsCoordType1=0 ProjOptionsEquinoxType2=2 ProjOptionsApparentPos2=1 ProjOptionsPMon2=1 ProjOptionsYPmon2=0 ProjOptionsEquinoxChart2=Date ProjOptionsDefaultJDChart2=2451545 ProjOptionsCoordExpertMode2=0 ProjOptionsCoordType2=0 ProjOptionsEquinoxType3=2 ProjOptionsApparentPos3=1 ProjOptionsPMon3=1 ProjOptionsYPmon3=0 ProjOptionsEquinoxChart3=Date ProjOptionsDefaultJDChart3=2451545 ProjOptionsCoordExpertMode3=0 ProjOptionsCoordType3=0 [default_chart] ChartWidth=1296 ChartHeight=595 ChartTop=0 Chartleft=0 ChartMaximized=1 racentre=0.811584356033326 decentre=1.32852844527559 acentre=2.88825326452601 hcentre=-0.470350428830859 fov=6.28318530717959 theta=0 projtype=M ProjPole=1 ProjEquatorCentered=1 FlipX=1 FlipY=1 CoordExpertMode=0 PMon=1 YPMon=0 DrawPMon=0 ApparentPos=1 CoordType=0 DrawPMyear=5000 horizonopaque=0 ShowHorizon=0 ShowHorizonPicture=0 HorizonPictureLowQuality=1 HorizonPictureRotate=0 FillHorizon=1 ShowHorizonDepression=0 ShowHorizon0=1 horizonfile= HorizonPictureFile= ShowEqGrid=0 ShowLabelAll=0 EditLabels=0 OptimizeLabels=1 RotLabel=0 HorizonRise=1 ShowGrid=0 ShowGridNum=0 ShowOnlyMeridian=0 ShowAlwaysMeridian=0 ShowConstL=1 ShowConstB=1 ShowEcliptic=0 ShowGalactic=0 ShowEquator=0 ShowMilkyWay=1 FillMilkyWay=1 LinemodeMilkyway=0 URL_SUN_NAME=SDO AIA 4500 URL_SUN=https://sdo.gsfc.nasa.gov/assets/img/latest/latest_1024_4500.jpg URL_SUN_SIZE=1024 URL_SUN_MARGIN=107 SunRefreshTime=24 SunOnline=0 ShowPluto=1 ShowPlanet=0 ShowSmallsat=1 ShowAsteroid=0 ShowComet=0 DSLsurface=0 DSLforcecolor=0 DSLcolor=0 SurfaceBlure=0 SurfaceAlpha=255 ShowImages=0 ShowStars=0 ShowNebulae=1 ShowLine=0 ShowImageList=0 ShowImageLabel=0 ShowBackgroundImage=0 BackgroundImage=C:\Users\micha\AppData\Local\Skychart\pictures\$temp.fit AstSymbol=0 AstmagMax=18 AstmagDiff=6 AstNEO=1 ComSymbol=1 CommagMax=18 CommagDiff=4 MagLabel=0 NameLabel=0 DistLabel=0 DrawAllStarLabel=0 MovedLabelLine=1 ConstFullLabel=1 ConstLatinLabel=0 PlanetParalaxe=1 ShowEarthShadow=0 GRSlongitude=314.5 GRSjd=2458707.5 GRSdrift=0.0501026694045175 StyleGrid=0 StyleEqGrid=0 StyleConstL=0 StyleConstB=0 StyleEcliptic=0 StyleGalEq=0 LineWidthGrid=0 LineWidthEqGrid=0 LineWidthConstL=1 LineWidthConstB=1 LineWidthEcliptic=2 LineWidthGalEq=4 BGalpha=250 BGitt=2 BGmin_sigma=7.3 BGmax_sigma=1.2 NEBmin_sigma=0.51 NEBmax_sigma=0.59 MaxArchiveImg=1 ArchiveDir1=C:\Users\micha\AppData\Local\Skychart\Archive ArchiveDir2= ArchiveDir3= ArchiveDir4= ArchiveDir5= ArchiveDir6= ArchiveDir7= ArchiveDir8= ArchiveDir9= ArchiveDir10= ArchiveDirActive1=0 ArchiveDirActive2=0 ArchiveDirActive3=0 ArchiveDirActive4=0 ArchiveDirActive5=0 ArchiveDirActive6=0 ArchiveDirActive7=0 ArchiveDirActive8=0 ArchiveDirActive9=0 ArchiveDirActive10=0 Simnb=1 SimLabel=3 SimNameLabel=1 SimDateLabel=1 SimDateYear=1 SimDateMonth=1 SimDateDay=1 SimDateHour=1 SimDateMinute=1 SimDateSecond=0 SimMagLabel=0 ShowLegend=0 SimD=1 SimH=0 SimM=0 SimS=0 SimLine=1 SimMark=1 SimAsteroid= SimComet= SimAsteroidName= SimCometName= SimObject1=1 SimObject2=1 SimObject3=1 SimObject4=1 SimObject5=1 SimObject6=1 SimObject7=1 SimObject8=1 SimObject9=1 SimObject10=1 SimObject11=1 SimObject12=1 SimObject13=1 ShowLabel1=1 LabelMag1=3 LabelOrient1=0 ShowLabel2=1 LabelMag2=4 LabelOrient2=0 ShowLabel3=1 LabelMag3=4 LabelOrient3=0 ShowLabel4=1 LabelMag4=0 LabelOrient4=0 ShowLabel5=1 LabelMag5=0 LabelOrient5=0 ShowLabel6=1 LabelMag6=4 LabelOrient6=0 ShowLabel7=1 LabelMag7=4 LabelOrient7=0 ShowLabel8=0 LabelMag8=4 LabelOrient8=0 ShowLabel9=1 LabelMag9=0 LabelOrient9=0 ShowLabel10=1 LabelMag10=2 LabelOrient10=0 ShowLabel11=1 LabelMag11=0 LabelOrient11=0 ObslistAlLabels=1 TrackOn=0 TrackType=4 TrackObj=0 TrackDec=0.0749837886569828 TrackRA=0.498644502164927 TrackEpoch=2459065.14595987 TrackName=NGC 718 [observatory] ObsLatitude=-33.45 ObsLongitude=70.6666667 ObsAltitude=0 ObsXP=0 ObsYP=0 ObsRH=0.5 ObsTlr=0.0065 ObsTemperature=10 ObsPressure=1013 ObsName=Santiago ObsCountry=Chile ObsTZ=America/Santiago countrytz=1 [date] UseSystemTime=0 CurYear=2020 CurMonth=8 CurDay=3 CurTime=11.5030369274318 autorefresh=0 Force_DT_UT=0 DT_UT_val=0.0194961903124075 [projection] ProjName1=TAN ProjName2=TAN ProjName3=TAN ProjName4=TAN ProjName5=TAN ProjName6=TAN ProjName7=MER ProjName8=MER ProjName9=MER ProjName10=MER [labels] poslabels=0 numlabels=0 [custom_labels] poslabels=0 numlabels=0 |
|
|
I am not 100% certain the FOV is the issue, as it has shown up at smaller FOVs as well. Maybe it is a particular aspect of the projection mode. |
|
|
This lines are probably feature drawing that wrap over the map. Maybe the margin tolerance I use for testing that is insufficient at the scale of this map. I will test using your saved chart. |
|
|
I make some test with your file. It look like the problem is with the constellation boundaries, when disabled the problem disappear. It also disappear when using a non-square printout like 2000x1000. I try to make a fix. |
|
|
This is fixed by: https://github.com/pchev/skychart/commit/efd87c41fc7b4bcd1a5308b5520e8199d5303951 The change will be in Monday beta version. |
