View Issue Details

IDProjectCategoryView StatusLast Update
0002622SkyChart1-Softwarepublic23-09-09 12:28 Assigned ToPatrick Chevalley
Status resolvedResolutionfixed
PlatformPCOSLinuxOS Version64bit
Product Version4.3 beta
Fixed in Version4.3 beta
Summary0002622: Connect telescope and GUI menus has some fields colored in black
DescriptionThe black fields make texts unreadable.
Somehow I probably made a configuration error and now I cannot find how to recover normal menus colours.
I uninstalled and reinstalled skychart without success even after deleting home ./skycharts directory...

I tried to change Ubuntu desktop environment parameters without success either..

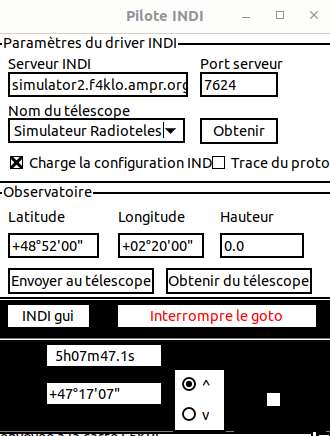

See joined screen capture.


Bernard, f6bvp
Dimension Parabole
TagsNo tags attached.


23-06-21 16:33


Patrick Chevalley

23-06-21 18:49

administrator   ~0008370

Bonjour Bernard,

Skychart do not set specific color but use the default Gtk theme color for all the elements.
I have no problem with the default Ubuntu theme so probably something was changed.

You can try the following: Open the Ubuntu Settings, for Appearance click on Dark, then back on Default. Restart Skychart and look if this change.

If this not change, install the package gtk-theme-switch: sudo apt install gtk-theme-switch
This not add a menu entry, start from a terminal: gtk-theme-switch2
Select Yaru in the list and click Apply , Yaru is the default Ubuntu theme.
Restart Skychart.

23-06-21 19:34

reporter   ~0008372

Hi Patrick,
I did install gtk-theme-switch then when I run gtk-theme-switch2 I get the following errors :
bernard@bernard-f6bvp:~/Pyindi/planet$ gtk-theme-switch2

(gtk-theme-switch2:3237): Gtk-WARNING **: 19:31:41.757: Impossible de trouver le moteur de thème dans module_path : « hcengine »
Gtk-Message: 19:31:41.758: Failed to load module "canberra-gtk-module"

(gtk-theme-switch2:3237): Gtk-WARNING **: 19:31:47.146: Impossible de trouver le moteur de thème dans module_path : « hcengine »

Patrick Chevalley

23-06-21 20:04

administrator   ~0008373

Strange, do you try to install a theme that require this module but it is not present? this can explain the black area in CdC.

You can install the module with: sudo apt install gtk2-engines

23-06-22 11:16

reporter   ~0008374

sudo apt install gtk2-engines
Réception de :1 kinetic/universe amd64 gtk2-engines amd64 1:2.20.2-5build2 [255 kB]
255 ko réceptionnés en 0s (2 154 ko/s)
However :

bernard@bernard-f6bvp:~$ sudo gtk-theme-switch2
Gtk-Message: 11:04:24.122: Failed to load module "canberra-gtk-module"

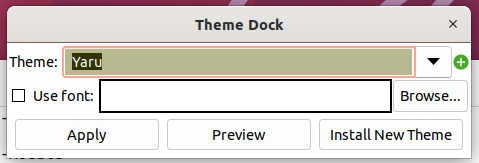

Selecting Yaru and Apply does not change anything.

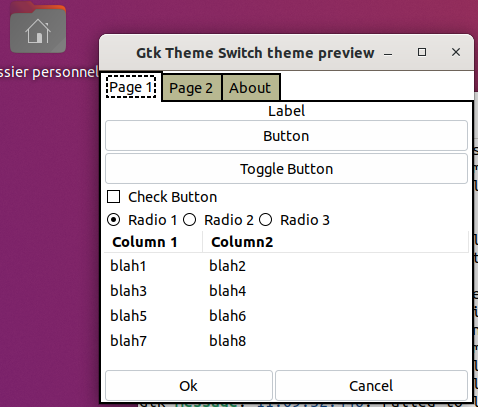

In Gtk Theme Switch thee preview, clicking on button does not change anything (image).

Selecting + does not show any filename to load.

Is there any file to select

Patrick Chevalley

23-06-22 11:43

administrator   ~0008376

You must not run gtk-theme-switch2 with sudo, it is to make change for the user that run skychart.

23-06-22 12:02

reporter   ~0008377

Same error :

bernard@bernard-f6bvp:~$ gtk-theme-switch2
Gtk-Message: 12:01:18.025: Failed to load module "canberra-gtk-module"

23-06-22 12:05

reporter   ~0008378

Looking for canberra-gtk displays :

sudo find / -name canberra-gtk*
[sudo] Mot de passe de bernard :
find: ‘/run/user/1000/doc’: Permission non accordée
find: ‘/run/user/1000/gvfs’: Permission non accordée

23-06-22 17:48

reporter   ~0008379

After googling I performed
sudo apt-get install libcanberra-gtk-module
and then could run
without warning or error.
I selected Yaru Apply
and started SkyCharts.

However black menus are still there.

23-06-25 12:44

reporter   ~0008380

What background menu box color is missing ? See two screen copies.
Should I try to reinstall Gnome ? How ?

23-06-25 13:12

reporter   ~0008381

I just installed KDE desktop on same Ubuntu and all SkyChart menu boxes are perfect.

I can stay with KDE for SkyChart use.

I don't want to miss the opportunity for you to find the reason of the issue with Gnome Desktop.

If not interested I can try to reinstall Gnome ?



Patrick Chevalley

23-06-30 17:59

administrator   ~0008383


If you still have the setup with the error I am interested to see the content of the file ~/.gtkrc-2.0 in your home directory.

Before to reinstall you can try to create a new user because this will reset all the default settings for this user.

23-07-01 12:35

reporter   ~0008385

Bonjour Patrice,

Here are .gtkrc in my home directory.
I hope it has not been changed by new KDE desktop environment.

bernard@bernard-f6bvp:~$ ls -la .gtkrc*
-rw-rw-r-- 1 bernard bernard 385 juil. 1 12:25 .gtkrc-2.0
-rw-rw-r-- 1 bernard bernard 211 juin 22 17:49 .gtkrc-2.0.bak

bernard@bernard-f6bvp:~$ cat .gtkrc-2.0.bak
# -- THEME AUTO-WRITTEN BY gtk-theme-switch2 DO NOT EDIT
include "/usr/share/themes/HighContrast/gtk-2.0/gtkrc"

include "/home/bernard/.gtkrc-2.0.mine"

# -- THEME AUTO-WRITTEN BY gtk-theme-switch2 DO NOT EDIT
bernard@bernard-f6bvp:~$ cat .gtkrc-2.0
.gtkrc-2.0 .gtkrc-2.0.bak

bernard@bernard-f6bvp:~$ cat .gtkrc-2.0
gtk-font-name="Noto Sans, 10"
# -- THEME AUTO-WRITTEN BY gtk-theme-switch2 DO NOT EDIT

# -- THEME AUTO-WRITTEN BY gtk-theme-switch2 DO NOT EDIT

23-07-01 12:40

reporter   ~0008386

Last edited: 23-07-01 12:41

Remarks :

gtkrc-2.0.bak is possibly the previous one used by Gnome ?

and there is no such file like :

include "/home/bernard/.gtkrc-2.0.mine"

Is that the possible error I experienced with Gnome desktop ?

Patrick Chevalley

23-07-01 13:49

administrator   ~0008387

OK, I reproduce the error by selecting the Highcontrast theme.
This is really an error within this theme that set a black background for some component without inverting the font color.

The current .gtkrc-2.0 with Breeze theme was set by KDE and this one work fine, this is the one I normally use on my system.

Maybe Gnome do not use this files and set it's own theme definition.
Can you open a terminal, type the following command and give me the result.
dconf dump /org/gnome/desktop/interface/

23-07-02 12:40

reporter   ~0008388

Here you are :

bernard@bernard-f6bvp:~$ dconf dump /org/gnome/desktop/interface/
font-name='Noto Sans, 10'

23-07-02 12:45

reporter   ~0008389

palette=['rgb(23,20,33)', 'rgb(192,28,40)', 'rgb(38,162,105)', 'rgb(162,115,76)', 'rgb(18,72,139)', 'rgb(163,71,186)', 'rgb(42,161,179)', 'rgb(208,207,204)', 'rgb(94,92,100)', 'rgb(246,97,81)', 'rgb(51,209,122)', 'rgb(233,173,12)', 'rgb(42,123,222)', 'rgb(192,97,203)', 'rgb(51,199,222)', 'rgb(255,255,255)']

palette=['rgb(23,20,33)', 'rgb(192,28,40)', 'rgb(38,162,105)', 'rgb(162,115,76)', 'rgb(18,72,139)', 'rgb(163,71,186)', 'rgb(42,161,179)', 'rgb(208,207,204)', 'rgb(94,92,100)', 'rgb(246,97,81)', 'rgb(51,209,122)', 'rgb(233,173,12)', 'rgb(42,123,222)', 'rgb(192,97,203)', 'rgb(51,199,222)', 'rgb(255,255,255)']

palette=['rgb(23,20,33)', 'rgb(192,28,40)', 'rgb(38,162,105)', 'rgb(162,115,76)', 'rgb(18,72,139)', 'rgb(163,71,186)', 'rgb(42,161,179)', 'rgb(208,207,204)', 'rgb(94,92,100)', 'rgb(246,97,81)', 'rgb(51,209,122)', 'rgb(233,173,12)', 'rgb(42,123,222)', 'rgb(192,97,203)', 'rgb(51,199,222)', 'rgb(255,255,255)']


Patrick Chevalley

23-09-09 12:28

administrator   ~0008545

Fixed by compiling new version of CdC for Qt5 instead of GTK2.
