View Issue Details

IDProjectCategoryView StatusLast Update
0001575Virtual Moon Atlas1-Softwarepublic16-12-03 11:03
ReporterJacques Montier Assigned ToPatrick Chevalley
PrioritynormalSeveritymajorReproducibilityalways
Status resolvedResolutionfixed
PlatformVirtualmoon et VirtualplanetOSGentoo Linux
Product Version6.1
Summary0001575: Probleme d'affichage des textures dans Virtualmoon et VirtualPlanet
DescriptionBonjour,

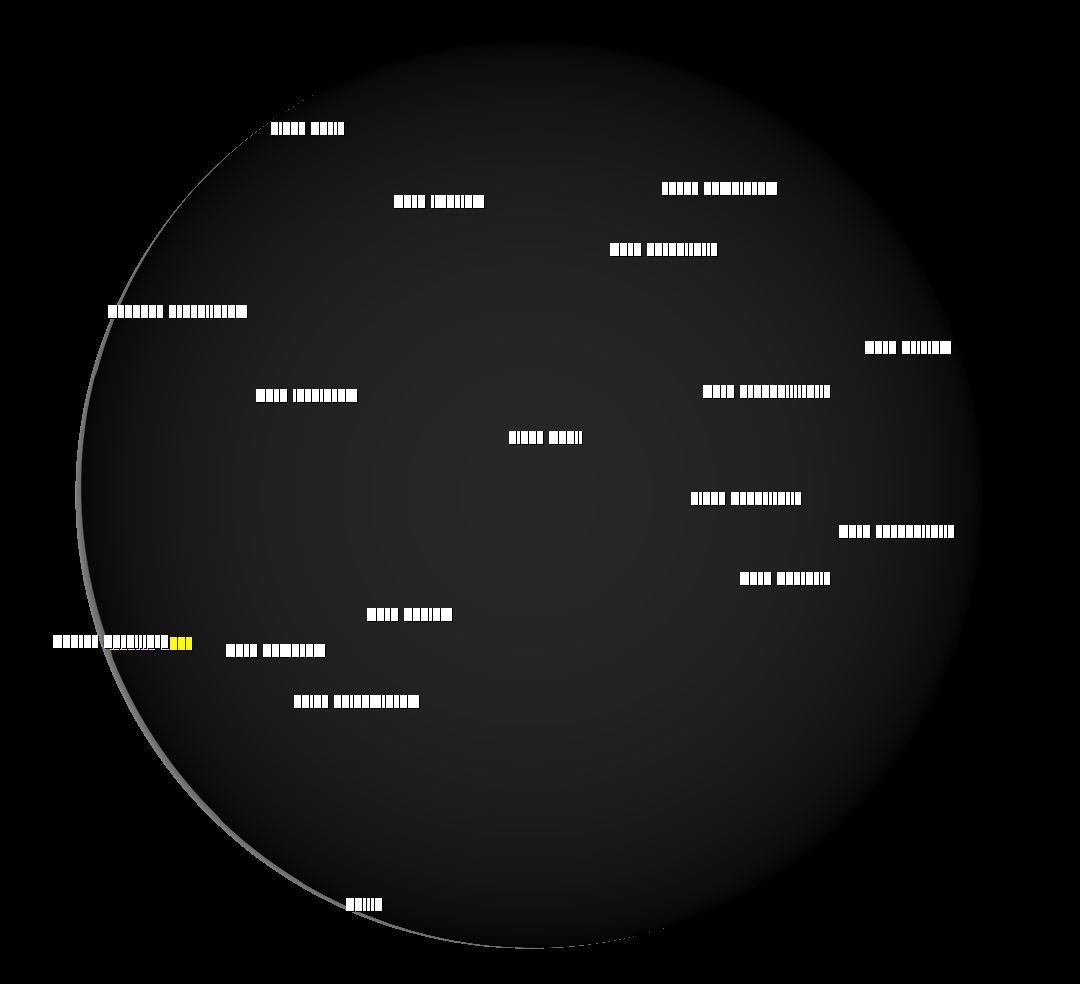

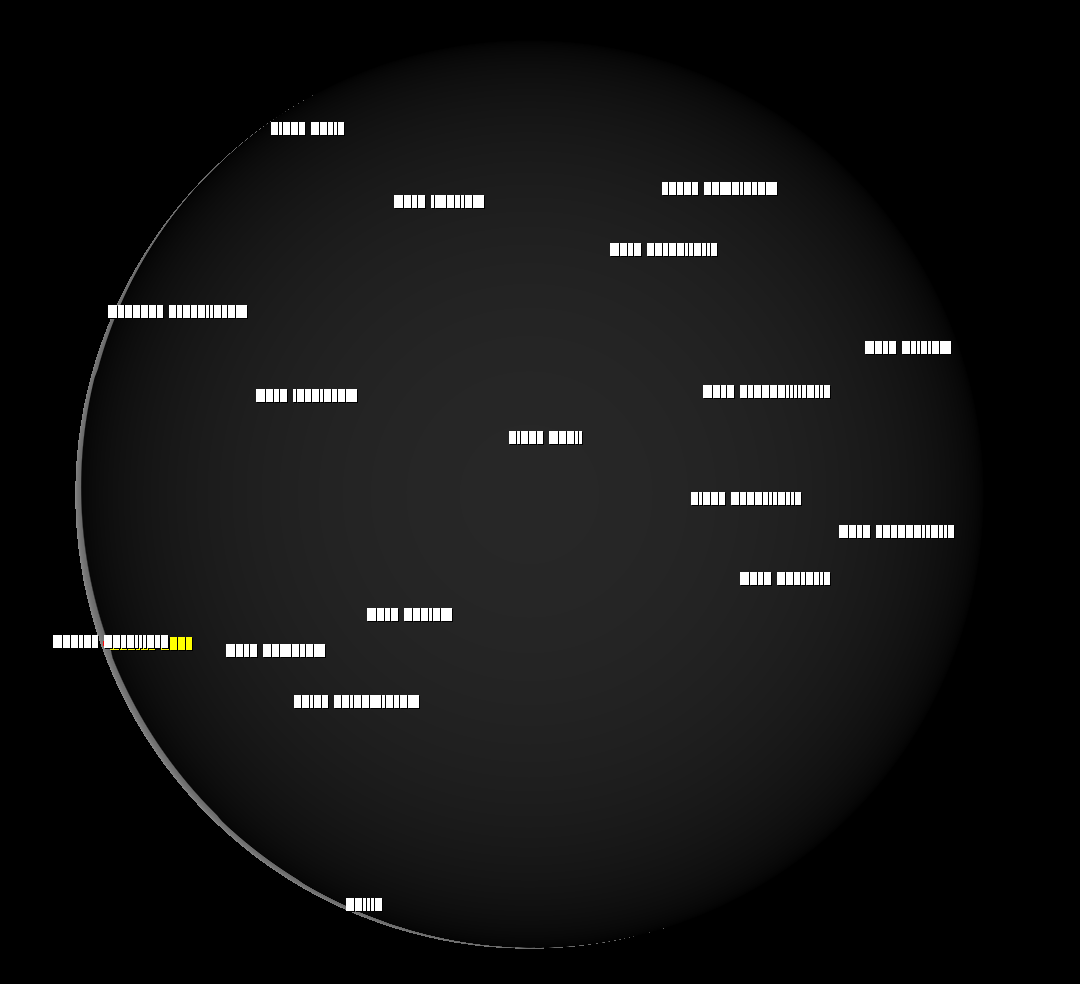

Suite à un changement de carte graphique Nvidia GTX 1060 6Go, la texture de la lune a disparu et les caractères sont remplacés par des rectangles (voir image jointe).
Même problème pour l'affichage des textures des planètes dans VirtualPlanet.

Une solution au problème ?

Merci d'avance

--
Jacques Montier

TagsNo tags attached.

Activities

Jacques Montier

16-11-28 17:11

reporter

Patrick Chevalley

16-12-02 16:56

administrator   ~0003453

Oui, c'est malheureusement un problème connu avec certain drivers Linux Nvidia récents.

Pour moi avec une GTX770 le dernier qui fonctionne est le 361.45.11 disponible depuis http://www.geforce.com/drivers/results/103306
Je ne suis par contre pas sur qu'il fonctionne avec une Geforce 1000.

Une autre solution est d'enlever le driver Nvidia et d'utiliser le driver open source Nouveau avec mesa-dri. C'est moins performant et il faut mettre le curseur Résolution de l'onglet Réglage tout a gauche.

Ou encore utiliser le chip Intel HDxxxx du processeur, le driver Intel fonctionne parfaitement.

Jacques Montier

16-12-02 19:20

reporter   ~0003455

Thanks Patrick,

For my Nvidia Gforce GTX 1060 6Go, i tried the nvidia proprietary drivers 375.20, 375.10, 367.57, 370.28, 367.44, 370.23 and 367.35, but no success with Virtualmoon.
I will try the open nouveau driver, but i'll have to recompile a new kernel :-(

Jacques Montier

16-12-02 19:37

reporter   ~0003456

I can make VirtualMoon working by switching from nvidia opengl to Xorg-X11 opengl.
It's rather slow, but it works.

Patrick Chevalley

16-12-02 21:21

administrator   ~0003457

Thank you for your feedback Jacques.

I take more time to read the nvidia changelog for all this versions and I find that the switch from working to not working is when GLVND was activated by default.

I try to install the driver with the option to disable GLVND and both Virtual Planet and Moon work with the last available driver 375.20.

To install this way just add the option --no-glvnd-glx-client to the nvidia installer:
sh NVIDIA-Linux-x86_64-375.20.run --no-glvnd-glx-client

Can you confirm this also work for you.

Jacques Montier

16-12-03 10:47

reporter   ~0003458

Last edited: 16-12-03 10:48

Thank you Patrick for the tip.
With Gentoo Linux, all the packages may be compile with USE flags set or not.
For nvidia-drivers, the use flags are :
X acpi driver gtk3 kms multilib tools -compat -pax_kernel -static-libs -uvm -wayland

By setting the compat use flag, Gentoo will install nvidia-drivers with the non-GLVND libGL option for backwards compatibility.
https://packages.gentoo.org/useflags/compat

So i just had to install nvidia-drivers with the +compat use flag and now VirtualMoon (and VirtualPlanet) works just fine !
Patrick it was the right way to go, thank you again !

Patrick Chevalley

16-12-03 11:03

administrator   ~0003460

Nice!
so we have a usable workaround for this problem.

I close this issue but I still have to find the real fix with libglvnd.
