View Issue Details

IDProjectCategoryView StatusLast Update
0002215SkyChart1-Softwarepublic19-10-24 17:53
ReporterGuillermo Abramson Assigned ToPatrick Chevalley
PrioritynormalSeverityminorReproducibilityalways
Status resolvedResolutionfixed
PlatformPCOSWindowsOS Version10 64bit
Product Version4.2
Target Version4.4Fixed in Version4.3 beta
Summary0002215: Simulation during transit
DescriptionI tried to simulate the trajectory of Mercury every 10 minutes during the Nov 11 transit, and discovered that the Sun disappears when the simulated points are plotted. I am attaching a screen shot, and also the same done with version 4.0, which does not show the isse. Thanks, Patrick.
Guillermo
TagsNo tags attached.

Activities

Guillermo Abramson

19-10-24 00:35

reporter

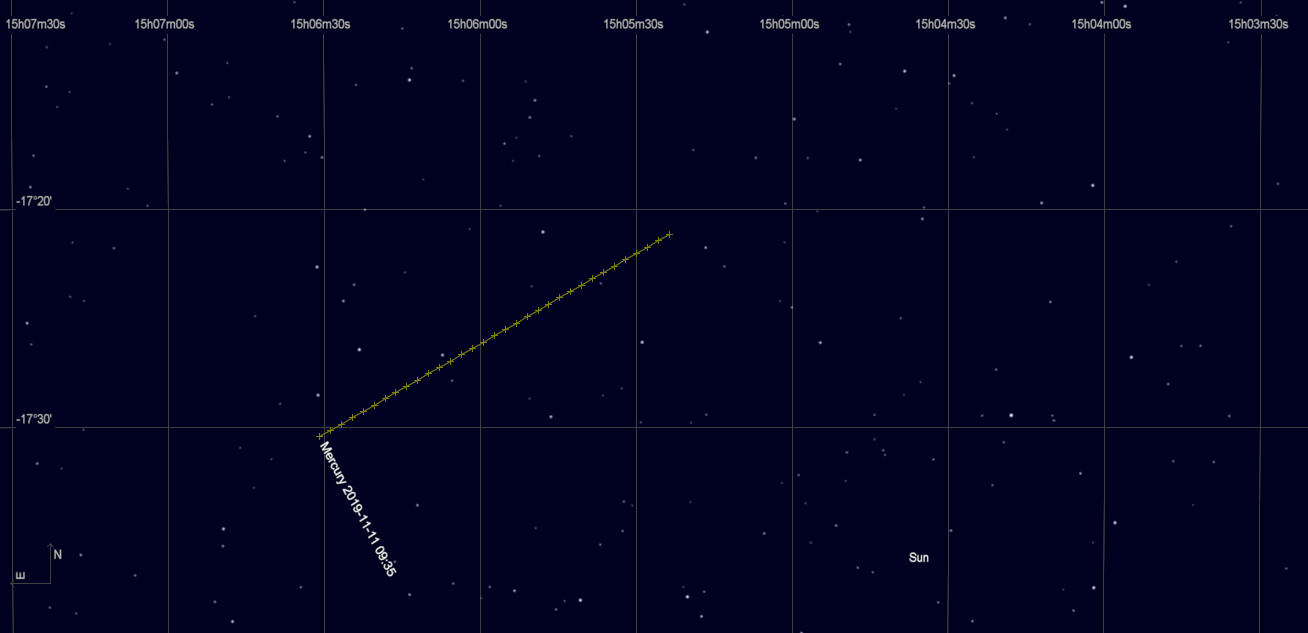

transit 4.2.png (40,564 bytes)

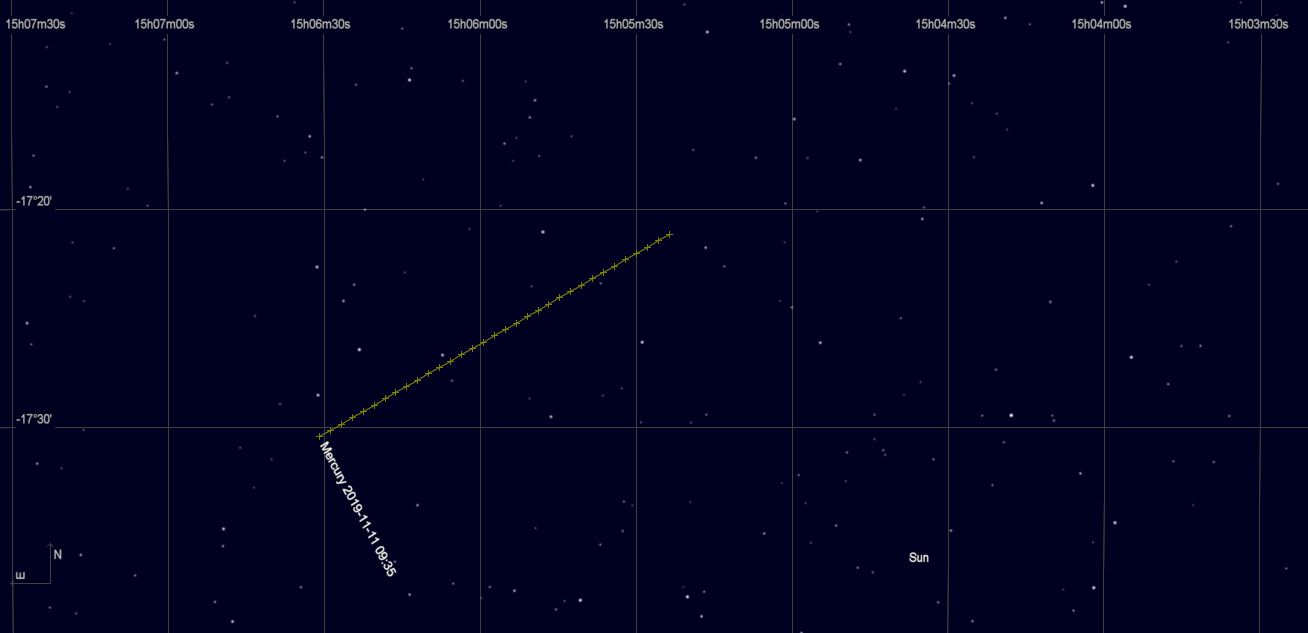

transit 4.2.png (40,564 bytes)

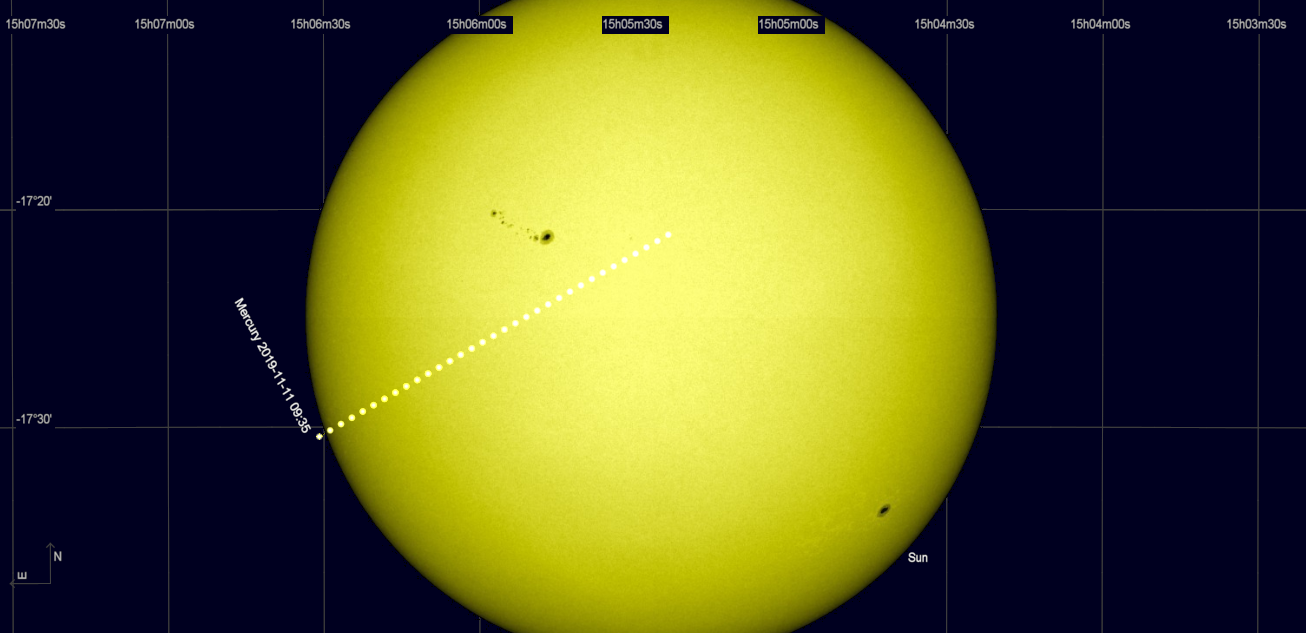

transit 4.0.png (631,599 bytes)

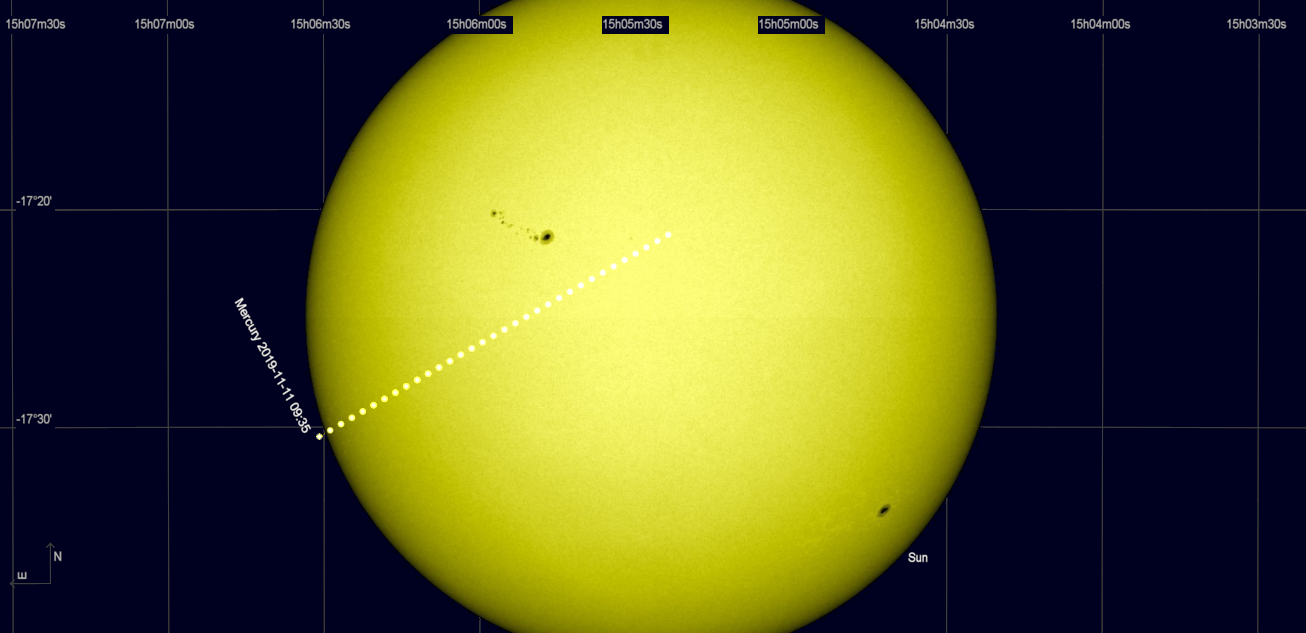

transit 4.0.png (631,599 bytes)

Patrick Chevalley

19-10-24 09:56

administrator   ~0006022

Hi Guillermo,

This is because the option "Show mark" is checked.
And I was asked to show only the object checked for simulation in this case, this is to plot a specific planet path without perturbation by other objects. If you remove this option it must work. Is this OK?

But beware the Sun also move during this time. If you select only Mercury for the simulation, only the first point is right relative to the Sun.
When both Mercury and Sun are selected it is difficult to match the corresponding position and even if you select transparent planet it fade if there is too much superposition.

The only way to show this precisely is to not use the simulation but the animation.

Guillermo Abramson

19-10-24 13:59

reporter   ~0006024

Understood. Thank you. The Show mark option is good enough. You may close this.
Regards.

Patrick Chevalley

19-10-24 17:53

administrator   ~0006026

I make a change so when for planet you select "Line mode" and "Transparent" the planet drawing is really transparent so it is more easy to see Mercury in front of the Sun with both object in simulation.

https://github.com/pchev/skychart/commit/1a1bad171140c41236fb935778ea5c5c8bb594af

This will be available Monday in the next beta version.
