View Issue Details

IDProjectCategoryView StatusLast Update
0002291Virtual Moon Atlas1-Softwarepublic20-05-06 18:03
Reportercorrado venturini Assigned ToPatrick Chevalley
PrioritynormalSeveritymajorReproducibilityalways
Status resolvedResolutionnot fixable
PlatformPCOSLinuxOS Version64bit
Product Version6.1
Summary0002291: small rectangles instead characters
DescriptionOn Ubuntu 20.04 after last updates starting atlun I see small rectangles instead characters
Steps To Reproducecorrado@corrado-p9-ff-0104-x:~$ atlun
Gtk-Message: 14:01:30.337: Failed to load module "canberra-gtk-module"
Init OpenGL
Check Acceleration
Check texture size
Texture max: 16384
Check Bumpmap
Driver: INTEL MESA INTEL(R) HD GRAPHICS 630 (KBL GT2)
GL_ARB_texture_env_dot3 OK
GL_ARB_fragment_program OK
SetBumpMethod
Check MultiTexture
InitLabel
InitSprite
Init OpenGL OK

(atlun:18751): Pango-WARNING **: 14:07:26.585: Invalid UTF-8 string passed to pango_layout_set_text()
Additional Informationcorrado@corrado-p9-ff-0104-x:~$ inxi -Fxx
System: Host: corrado-p9-ff-0104-x Kernel: 5.6.0-050600rc2-generic x86_64 bits: 64 compiler: gcc
           v: 9.2.1 Desktop: Gnome 3.34.3 wm: gnome-shell dm: GDM3
           Distro: Ubuntu 20.04 LTS (Focal Fossa)
Machine: Type: Desktop Mobo: ASRock model: H110M-G/M.2 serial: <root required>
           UEFI: American Megatrends v: P1.10 date: 05/11/2017
CPU: Topology: Dual Core model: Intel Core i3-7100 bits: 64 type: MT MCP arch: Kaby Lake rev: 9
           L2 cache: 3072 KiB
           flags: avx avx2 lm nx pae sse sse2 sse3 sse4_1 sse4_2 ssse3 vmx bogomips: 31199
           Speed: 801 MHz min/max: 800/3900 MHz Core speeds (MHz): 1: 800 2: 800 3: 800 4: 802
Graphics: Device-1: Intel HD Graphics 630 vendor: ASRock driver: i915 v: kernel bus ID: 00:02.0
           chip ID: 8086:5912
           Display: x11 server: X.Org 1.20.7 driver: i915 compositor: gnome-shell
           resolution: 1920x1080~60Hz
           OpenGL: renderer: Mesa Intel HD Graphics 630 (KBL GT2) v: 4.6 Mesa 20.0.0
           direct render: Yes
Audio: Device-1: Intel 100 Series/C230 Series Family HD Audio vendor: ASRock
           driver: snd_hda_intel v: kernel bus ID: 00:1f.3 chip ID: 8086:a170
           Device-2: Logitech QuickCam Pro 9000 type: USB driver: snd-usb-audio,uvcvideo
           bus ID: 1-10:5 chip ID: 046d:0990
           Sound Server: ALSA v: k5.6.0-050600rc2-generic
Network: Device-1: Intel Ethernet I219-V vendor: ASRock driver: e1000e v: 3.2.6-k port: f040
           bus ID: 00:1f.6 chip ID: 8086:15b8
           IF: enp0s31f6 state: up speed: 100 Mbps duplex: full mac: 70:85:c2:44:7b:86
Drives: Local Storage: total: 2.05 TiB used: 10.88 GiB (0.5%)
           ID-1: /dev/nvme0n1 vendor: Kingston model: SKC2000M8250G size: 232.89 GiB speed: 31.6 Gb/s
           lanes: 4 serial: 50026B72823D1475
           ID-2: /dev/sda vendor: Toshiba model: DT01ACA100 size: 931.51 GiB speed: 6.0 Gb/s
           serial: 37PYNGAFS
           ID-3: /dev/sdb vendor: Hitachi model: HDS721010CLA332 size: 931.51 GiB speed: 3.0 Gb/s
           serial: JP2940J80Z3D3V
Partition: ID-1: / size: 31.25 GiB used: 10.87 GiB (34.8%) fs: ext4 dev: /dev/sda9
           ID-2: swap-1 size: 8.00 GiB used: 0 KiB (0.0%) fs: swap dev: /dev/sda2
Sensors: System Temperatures: cpu: 25.0 C mobo: 28.5 C
           Fan Speeds (RPM): fan-1: 0 fan-2: 2335 fan-3: 0 fan-4: 2253 fan-5: 0 fan-6: 0
           Voltages: 12v: N/A 5v: N/A 3.3v: 3.49 vbat: 3.15
Info: Processes: 222 Uptime: 25m Memory: 7.49 GiB used: 1.44 GiB (19.2%) Init: systemd v: 244
           runlevel: 5 Compilers: gcc: 9.2.1 alt: 9 Shell: bash v: 5.0.11 running in: gnome-terminal
           inxi: 3.0.37
corrado@corrado-p9-ff-0104-x:~$

TagsNo tags attached.

Relationships

related to 0002327 resolved VM 6.1 worked fine until I upgraded from Fedora 31 to 32. All lunar images no longer show, nor does the text on image

Activities

corrado venturini

20-02-22 14:16

reporter

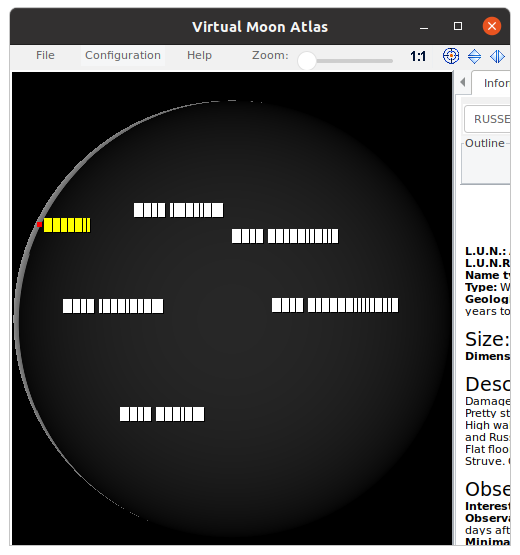

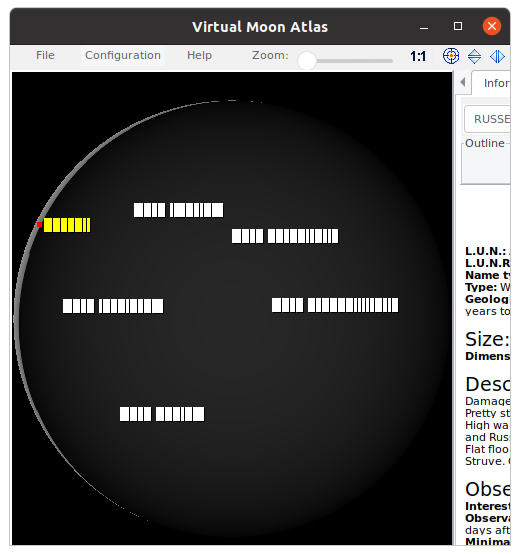

Screenshot atlun.png (53,292 bytes)
Screenshot atlun.png (53,292 bytes)

corrado venturini

20-02-22 14:46

reporter   ~0006351

Last edited: 20-02-22 14:50

problem does not depend from Kernel: 5.6.0-050600rc2-generic i have the same problem also with kernel 5.4.0-14-generic and don't have the message about invalid UTF-8
corrado@corrado-p3-ff-0217:~$ atlun
Gtk-Message: 14:35:43.529: Failed to load module "canberra-gtk-module"
Init OpenGL
Check Acceleration
Check texture size
Texture max: 16384
Check Bumpmap
Driver: INTEL MESA INTEL(R) HD GRAPHICS 630 (KBL GT2)
GL_ARB_texture_env_dot3 OK
GL_ARB_fragment_program OK
SetBumpMethod
Check MultiTexture
InitLabel
InitSprite
Init OpenGL OK

corrado@corrado-p3-ff-0217:~$ inxi -SCGxx
System:
  Host: corrado-p3-ff-0217 Kernel: 5.4.0-14-generic x86_64 bits: 64 compiler: gcc
  v: 9.2.1 Desktop: Gnome 3.34.3 wm: gnome-shell dm: GDM3
  Distro: Ubuntu 20.04 LTS (Focal Fossa)
CPU:
  Topology: Dual Core model: Intel Core i3-7100 bits: 64 type: MT MCP arch: Kaby Lake
  rev: 9 L2 cache: 3072 KiB
  flags: avx avx2 lm nx pae sse sse2 sse3 sse4_1 sse4_2 ssse3 vmx bogomips: 31199
  Speed: 800 MHz min/max: 800/3900 MHz Core speeds (MHz): 1: 800 2: 800 3: 800 4: 801
Graphics:
  Device-1: Intel HD Graphics 630 vendor: ASRock driver: i915 v: kernel bus ID: 00:02.0
  chip ID: 8086:5912
  Display: x11 server: X.Org 1.20.7 driver: i915 compositor: gnome-shell
  resolution: 1920x1080~60Hz
  OpenGL: renderer: Mesa Intel HD Graphics 630 (KBL GT2) v: 4.6 Mesa 20.0.0
  direct render: Yes
corrado@corrado-p3-ff-0217:~$

problem occurs with both sessions X11 and Wayland

Patrick Chevalley

20-02-22 14:52

administrator   ~0006352

It is not clear from the screenshot if the problem is only the fonts or if the moon has no texture at all.
Can you disable the phase display so we better see the moon surface.

corrado venturini

20-02-23 08:19

reporter   ~0006353

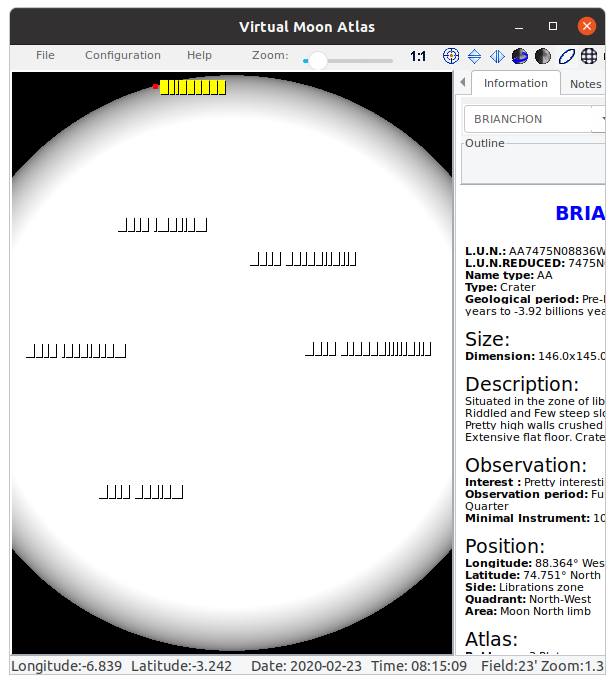

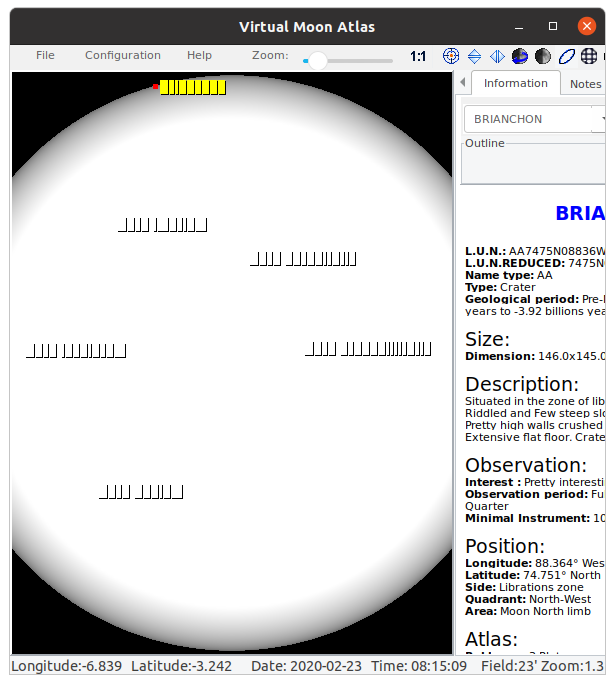

The moon has no texture at all
thanks

corrado venturini

20-03-07 16:09

reporter   ~0006380

Same problem on a different hardware
corrado@corrado-HP-p5-ff-0303:~$ inxi -SCGx
System:
  Host: corrado-HP-p5-ff-0303 Kernel: 5.4.0-14-generic x86_64 bits: 64
  compiler: gcc v: 9.2.1 Desktop: Gnome 3.35.91
  Distro: Ubuntu 20.04 LTS (Focal Fossa)
CPU:
  Topology: Dual Core model: Intel Core i5-4210U bits: 64 type: MT MCP
  arch: Haswell rev: 1 L2 cache: 3072 KiB
  flags: avx avx2 lm nx pae sse sse2 sse3 sse4_1 sse4_2 ssse3 vmx
  bogomips: 19156
  Speed: 1541 MHz min/max: 800/2700 MHz Core speeds (MHz): 1: 1197 2: 1198
  3: 1197 4: 1197
Graphics:
  Device-1: Intel Haswell-ULT Integrated Graphics vendor: Hewlett-Packard
  driver: i915 v: kernel bus ID: 00:02.0
  Display: x11 server: X.Org 1.20.7 driver: i915 resolution: 1366x768~60Hz
  OpenGL: renderer: Mesa DRI Intel HD Graphics 4400 (HSW GT2)
  v: 4.5 Mesa 20.0.0 direct render: Yes
corrado@corrado-HP-p5-ff-0303:~$

Patrick Chevalley

20-03-07 19:07

administrator   ~0006381

So the common point is Mesa 20.0

This is strange because at the moment I see this issue only with some version of Nvidia driver.
With Nvidia the problem is solved in all the case by compiling the driver with the option specified here:
https://www.ap-i.net/avp/en/nvidia_linux

Do you know if Mesa as a similar option to not use glvnd ?

corrado venturini

20-03-08 14:06

reporter   ~0006382

I don't know if Mesa as a similar option, I will try to find out.
Mesa 20.0 could be guilty because on the same PC different partition i don't ave the problem with Mesa 19.2.8
corrado@corrado-p6-eoan-1017:~$ inxi -SCG
System:
  Host: corrado-p6-eoan-1017 Kernel: 5.3.0-40-generic x86_64 bits: 64
  Desktop: Gnome 3.34.1 Distro: Ubuntu 19.10 (Eoan Ermine)
CPU:
  Topology: Dual Core model: Intel Core i3-7100 bits: 64 type: MT MCP
  L2 cache: 3072 KiB
  Speed: 800 MHz min/max: 800/3900 MHz Core speeds (MHz): 1: 800 2: 801
  3: 801 4: 800
Graphics:
  Device-1: Intel HD Graphics 630 driver: i915 v: kernel
  Display: x11 server: X.Org 1.20.5 driver: i915 resolution: 1920x1080~60Hz
  OpenGL: renderer: Mesa DRI Intel HD Graphics 630 (Kaby Lake GT2)
  v: 4.5 Mesa 19.2.8
corrado@corrado-p6-eoan-1017:~$

corrado venturini

20-03-08 18:50

reporter   ~0006383

I intend to open a bug on mesa 20 for this problem can you suggest me how to describe it?
thanks
however mesa 20.1 should arrive soon, may be... http://www.tuxmachines.org/node/134885

corrado venturini

20-03-16 11:00

reporter   ~0006389

Opened a bug: https://bugs.launchpad.net/ubuntu/+source/mesa/+bug/1867581

Issue History

Date Modified Username Field Change
20-02-22 14:16 corrado venturini New Issue
20-02-22 14:16 corrado venturini File Added: Screenshot atlun.png
20-02-22 14:46 corrado venturini Note Added: 0006351
20-02-22 14:50 corrado venturini Note Edited: 0006351
20-02-22 14:52 Patrick Chevalley Assigned To => Patrick Chevalley
20-02-22 14:52 Patrick Chevalley Status new => feedback
20-02-22 14:52 Patrick Chevalley Note Added: 0006352
20-02-23 08:19 corrado venturini Note Added: 0006353
20-02-23 08:19 corrado venturini File Added: Screenshot from 2020-02-23 08-17-01.png
20-02-23 08:19 corrado venturini Status feedback => assigned
20-03-07 16:09 corrado venturini Note Added: 0006380
20-03-07 19:07 Patrick Chevalley Note Added: 0006381
20-03-08 14:06 corrado venturini Note Added: 0006382
20-03-08 18:50 corrado venturini Note Added: 0006383
20-03-16 11:00 corrado venturini Note Added: 0006389
20-05-06 18:03 Patrick Chevalley Relationship added related to 0002327
20-05-06 18:03 Patrick Chevalley Status assigned => resolved
20-05-06 18:03 Patrick Chevalley Resolution open => not fixable
