View Issue Details

IDProjectCategoryView StatusLast Update
0002905CCdcielGeneralpublic26-04-11 17:25
ReporterJames Bates Assigned ToPatrick Chevalley
PrioritynormalSeverityminorReproducibilityalways
Status resolvedResolutionfixed
PlatformPCOSLinuxOS Version64bit
Product Version0.9
Summary0002905: ccdciel 0.9.93: read FL&ap. from INDI CCD driver, not telescope, since INDI 2.0.5

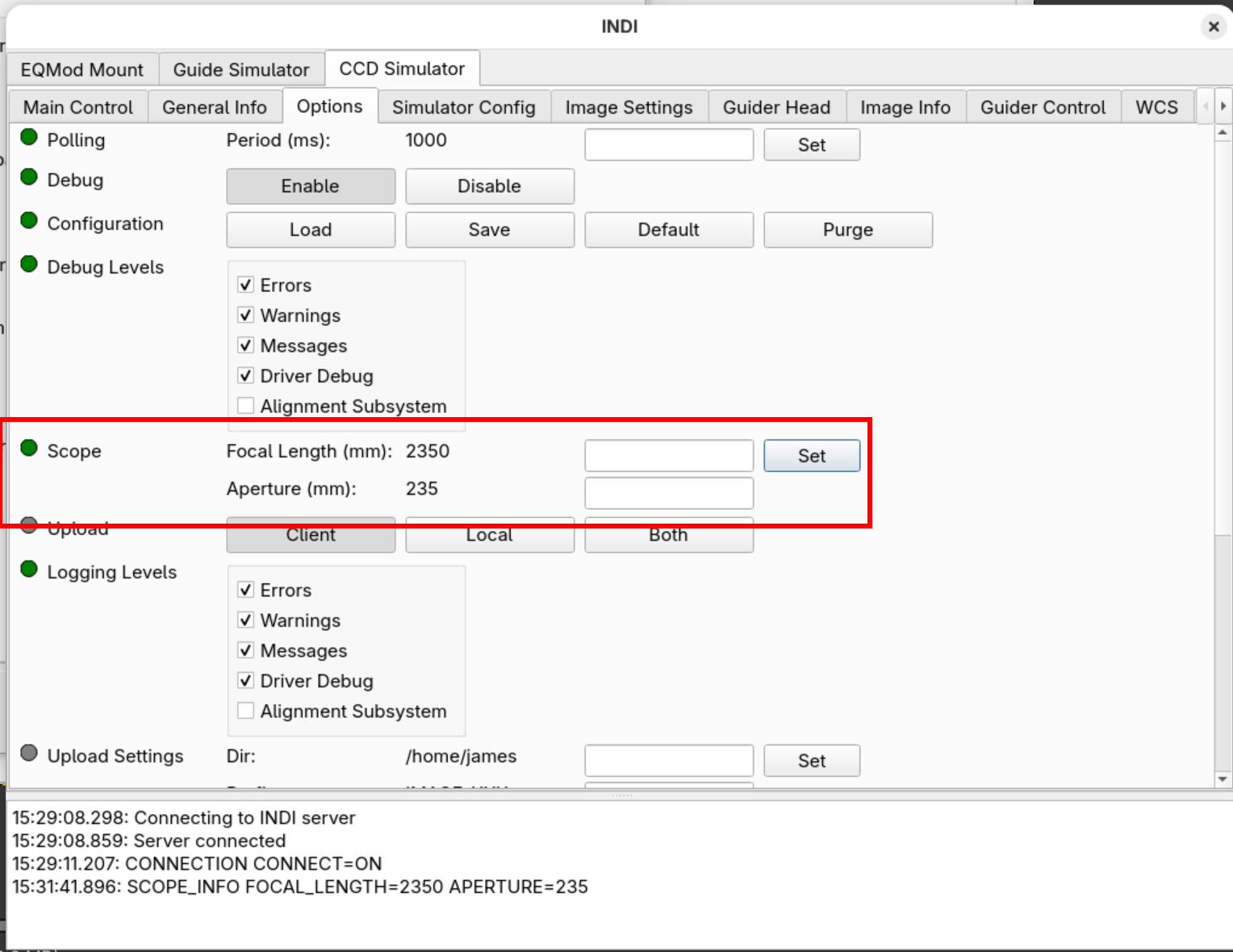

DescriptionSince INDI 2.0.5, the scope configuration for focal length and aperture is located in the INDI CCD driver, and no longer in the telescope INDI driver. I've attached an INDI config screenshot to show the location.

In the astrometry preferences in ccdciel, there is an option to read the focal length "from the telescope driver", and when it is set, it does indeed try to read the settings from the INDI telescope driver, where they don't exist. This should be updated to read from the INDI ccd driver.
Steps To ReproduceSet up INDI devices (e.g. in indistarter), and set focal length & aperture in the CCD driver options, as shown in the screenshot.
In ccdciel, set astrometry preferences to extract focal length " from telescope driver". Connect to the devices, take an image, and attempt to resolve it. The correct focal length is not read from the INDI ccd driver.
TagsNo tags attached.

Activities

James Bates

26-04-04 15:34

reporter


Patrick Chevalley

26-04-05 10:24

administrator   ~0009704

Yes, I need to change that.
I will also move the setting to the Slewing tab where you can choose between the main and finder camera .
But a difficulty for the interface wording is that ASCOM still get the focal length from the mount driver. Maybe I can use just "From driver".

Patrick Chevalley

26-04-11 17:24

administrator   ~0009717

I forget to tell you this change is also in the last source code.

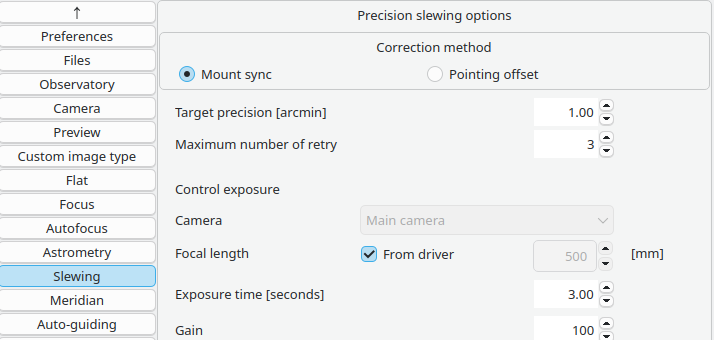

The option is now in the Slewing options, after eventually changing the camera to use.

Issue History

Date Modified Username Field Change
26-04-04 15:34 James Bates New Issue
26-04-04 15:34 James Bates File Added: ccdcielbug.png
26-04-05 10:24 Patrick Chevalley Note Added: 0009704
26-04-11 17:24 Patrick Chevalley Note Added: 0009717
26-04-11 17:24 Patrick Chevalley File Added: Copie d'écran_20260411_172035.png
26-04-11 17:25 Patrick Chevalley Assigned To => Patrick Chevalley
26-04-11 17:25 Patrick Chevalley Status new => resolved
26-04-11 17:25 Patrick Chevalley Resolution open => fixed
