View Issue Details
|ID||Project||Category||View Status||Date Submitted||Last Update|
|0001735||SkyChart||1-Software||public||17-06-30 23:25||18-06-16 17:01|
|Reporter||Rolf Stegelmann||Assigned To|
|Platform||Mac (Intel)||OS||OS-X||OS Version||10.8.5|
|Target Version||Fixed in Version|
|Summary||0001735: LX200 Telescope connect does not support "cu" serial device|
|Description||In The LX200 protocol setup for a Telescope. It asks for the serial device. It lists |
It does not let me pick the cu.usbserial... device. I get a dialog that says:
Port /dev/cu.usbserial-A800eor cannot be opened!
Not a typewriter.
followed with a dialog
Error opening LX200 on port /dev/cu.usbserial-a800eor
check if device is connected and power on.
It hangs when the "tty" port is specified.
This is because most telescope devices use only the three wire serial set up and don't assert the DTR signal. All other planetarium software I have worked with use the "cu" serial device port. This includes TheSkyX, Stellarium and Equinox Pro that I have worked with.
see web page for explanation:
In any case you should allow for both to be used. Those that have a DTR signal can use the tty and those without can use the cu. The work exactly the same except for not worrying about the DTR signal.
|Steps To Reproduce||select LX200 protocol. |
set the port on the connect to either tty or cu. The cu gets the "not a typewriter" dialog and the tty one hangs if the DTR is not asserted.
|Additional Information||I am just evaluating this software to replace Equinox Pro, since it is no longer being maintained or available. Cartes Du Ciel looks promising so far. I like it better than theSkyX or Stellarium. |
I have a lot of problem to maintain this direct driver because I no more use a LX200 myself.
The program is now optimized to run with INDI drivers on Mac and Linux, and ASCOM on Windows.
Any reason you not use INDI with your LX200?
Indiserver is very easy to use on Mac: http://www.cloudmakers.eu/indiserver/
For the next version I clearly mark this LX200 and the Encoders direct drivers as obsolete to prevent new users to use them.
I let this issue open if someone with a Mac and a LX200 want to fix it.
||I'm just evaluating the program and have not looked at INDI implementations. I have not needed them as of yet. I'll take a look at adding INDI to my Mac. A while ago INDI was not ready for prime time on the Mac. I will take another look at it.|
||I tried the cloudmaker version of INDI. It works perfectly and it can't be easier to install. Thanks!|
Thank you to confirm it work.
I will update the documentation to remove the INDI compilation instruction and let only this link to Cloudmakers.
They have other nice software for OS X that are worth to look at.

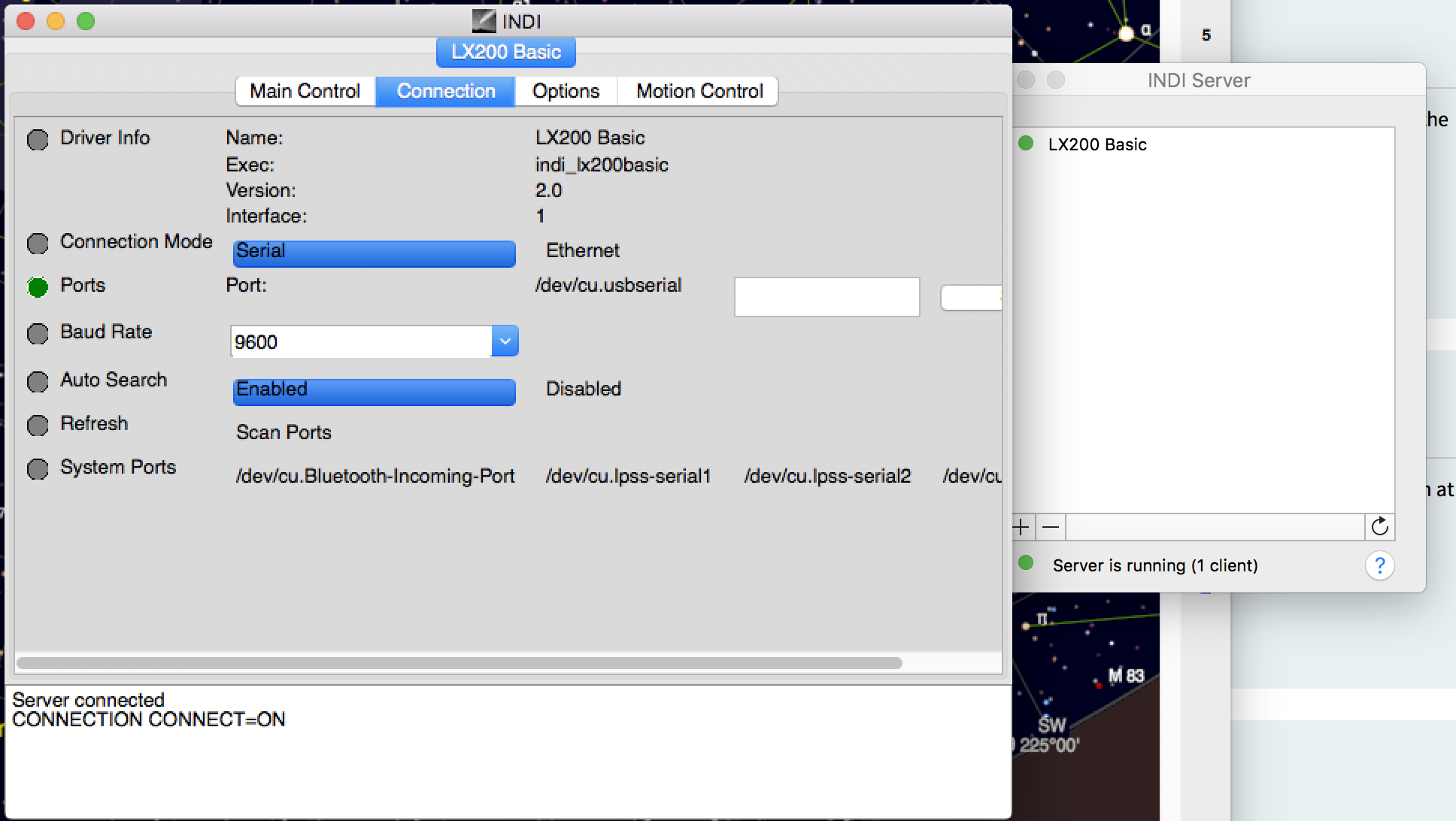

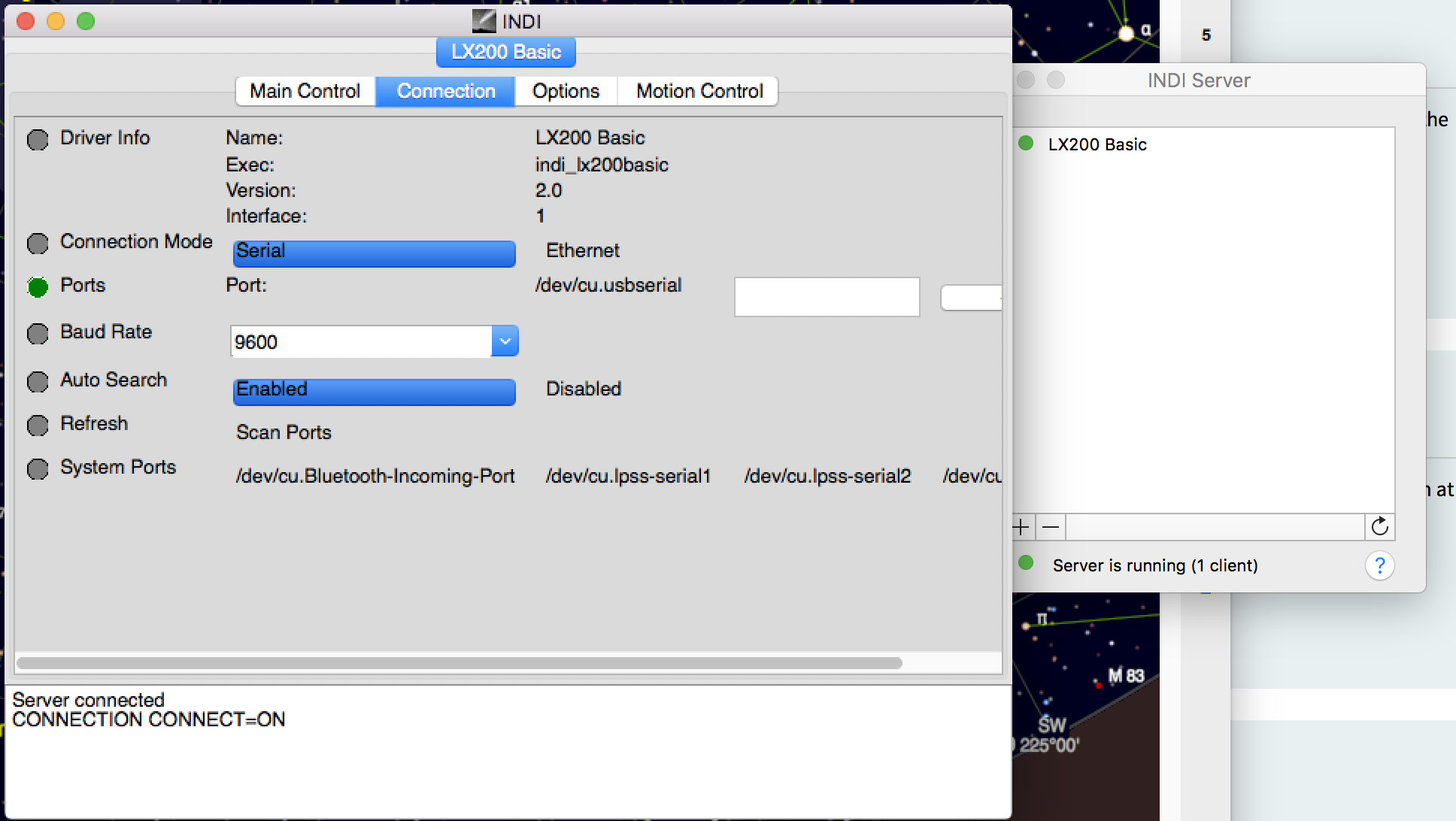

I am sorry to say that I cannot get my Meade LX200 (classic model) to work either with the direct connection (due to the aforementioned cu.usbserial problem), nor with the INDI driver. With the INDI driver, if I bring up the GUI, it seems to say it connects fine (see attached screenshot), but, when I go the Telescope Connect dialog, I only see the Telescope Simulator as an option. Clicking on "Refresh" either does nothing, or sometimes just crashes SkyChart software.
The same arrangement is working fine with Stellarium (with their direct drivers). I would urge you to enable the cu.usbserial port, if that is possible. Thanks.
Screen Shot 2017-07-25 at 10.38.02 PM.png (380,453 bytes)
Screen Shot 2017-07-25 at 10.38.02 PM.png (380,453 bytes)
This issue is very specific to the way OS X set the serial port and I cannot fix it without a Mac and a LX200 for testing.
If a developer with the require hardware want to fix it I will be happy to apply is patch.
For INDI, do you add the LX200 driver to the Indiserver? click the + button after you start Indiserver to get a list of driver. (and the - button to remove the simulator)
Hi Patrick, thanks for the reply. Did you see the screenshot I uploaded? Yes, I did add the LX200 to INDI, as shown in that screenshot. Also, SkyChart's own INDI control panel shows (also seen in the screenshot) that it can see the LX200. However, the "Connect to Scope" dialog does not show the scope and only shows the simulator.
This seems to be an INDI driver bug in SkyCharts. Can you please take a look?
Sorry, I miss the screenshot.
You cannot select the driver from the "Connect to Scope" dialog, you must open the menu Telescope/Telescope settings... first.
Here select INDI and click the button "Connect and get device list". After is finish select the telescope name from the list.
See : https://www.ap-i.net/skychart/start?id=en/documentation/system#indi_driver
||Yes, I meant to say "Connect and get device list". When I click on that button, nothing shows up other than the Telescope Simulator.|
Which version do you use?
It may be necessary to use the last beta version because of this bug: 0001741
@Kal: I ran it, and my list shows the simulator and the LX200 Basic, and it connects. My connect list shows the simulator and the LX200 Basic. Sometimes the "Connect and get device list" takes a little bit of time to update. Try it more than once. I don't have an LX200 but I use software that translates the LX200 protocol.
by the way I am using the INDI server from cloudmakers because it is a no nonsense installation. Just drop the app into the applications folder and start it.

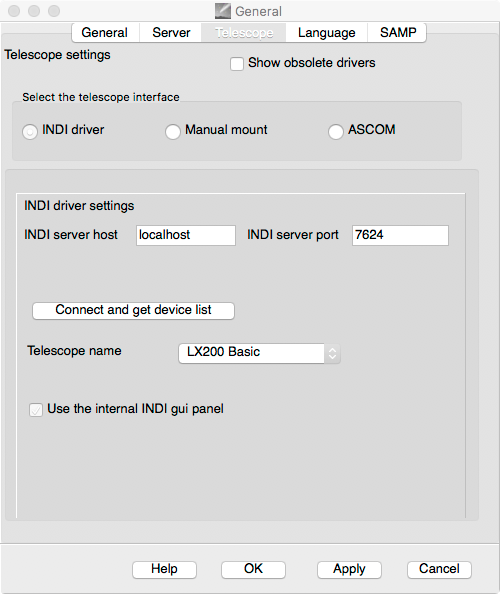

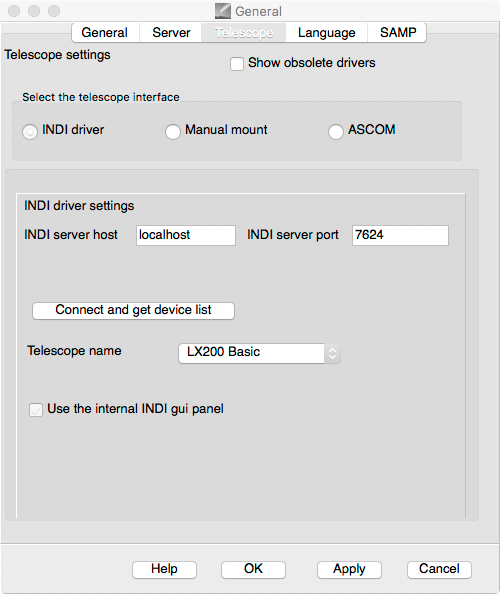

see attachment INDIgui
Edited to take out the bad command comment. This seems to be a dropped serial character issue on OS-X 10.12.6. It seems two work fine on OS-X 10.8.5. Since my send chain is kind of long it could be anywhere. I will keep it to myself for now. Send chain is skychart->INDIserver->IOGear402 serial to wifi -> wifi to serial into com1 port on pc -> LX200 protocol translate to ASCOM -> telescope driver and back the other way.
@Rolf: I have only used the Cloudmakers version. Didn't even know there was an alternative!
@Patrick: I tried the beta version last night, and it does appear to be somewhat better in the sense that I was able to get it to work 2 times (out of about 20 attempts). So, at least I know it CAN work!
There seems to be a race between the timeout, and how long it takes to connect. It takes SO long to connect (as mentioned by @Rolf) that most of the times it times out, but once in a while it succeeds. This long delay is true for both the "get device list" call, and the subsequent "Connect" call.
If I look at the Cloudmakers INDI window, it shows "1 Client" as soon as the connection attempt is made, but SkyCharts still shows that it is connecting, and times out eventually. Then the INDI window shows "no clients".
So, my questions are:
1. Why the LOOONG delay to establish connection on a local TCP port? Is this something that can be fixed?
2. Can the timeout be set longer (for test purposes) to test my theory that it times out before it succeeds?
One other really weird fact (I almost don't want to mention it, it is so goofy, but just in case it gives you a clue, I mention it!): Both the times that it actually succeeded in connecting, I was attempting to make a Screen Video recording (using Quicktime Screen capture) to show you how it doesn't work. But, when I try a couple of times, with the video recorder going, it worked! Maybe just co-incidence, or maybe the Video recorder slowed the system down, or something. Like I said, this is quite goofy, feel free to ignore if it makes no sense.
I just saw @Rolf's comment on send chain, so I wanted to add that my send chain is as simple as can be: SkyChart -> INDI -> USB Serial port -> an actual LX200.
I remove the native lx200 driver for the next version.
If you still have problem with Indi please report the problem in the Indi forum.
